Rittal 1044004 FAN AND Filter Unit
Fan and Filter Unit
The Rittal 1044004 is a compact fan and filter unit with 230 V AC input, delivering 15 W output. It includes an NMB 4715MS-23T-B5A axial fan for high airflow and low noise operation, ideal for electrical enclosures.Rittal 1044004 Fan and Filter Unit with NMB 4715MS-23T-B5A Axial Fan

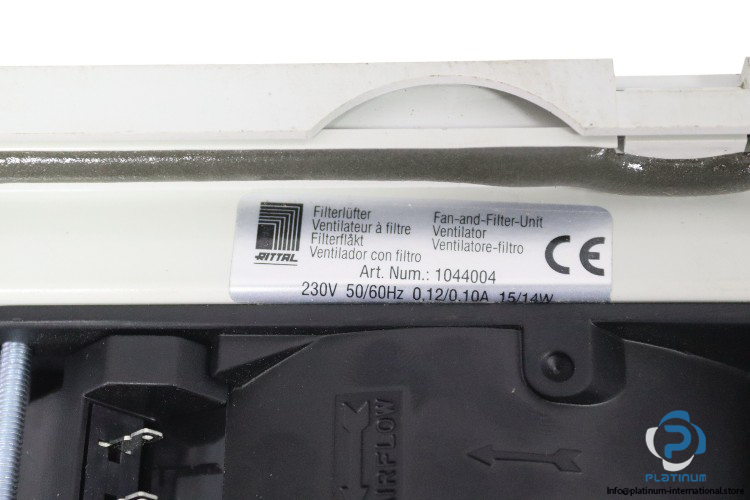

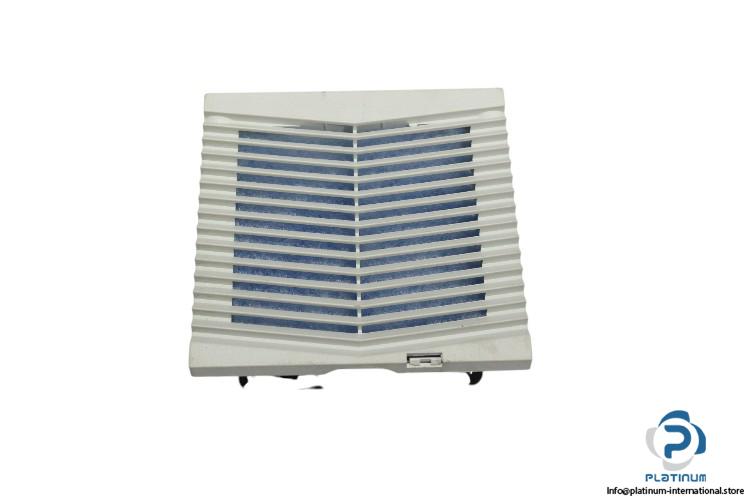

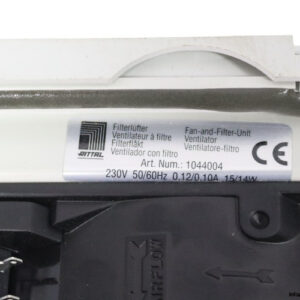

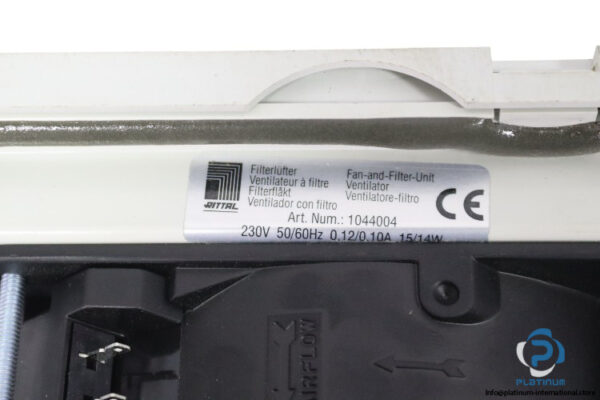

The Rittal 1044004 Fan and Filter Unit is designed for efficient enclosure cooling and ventilation in industrial environments. Operating at 230 V AC, this unit ensures consistent airflow and thermal management for electrical systems. It features a compact 149 x 149 mm frame and delivers up to 15 W output power.

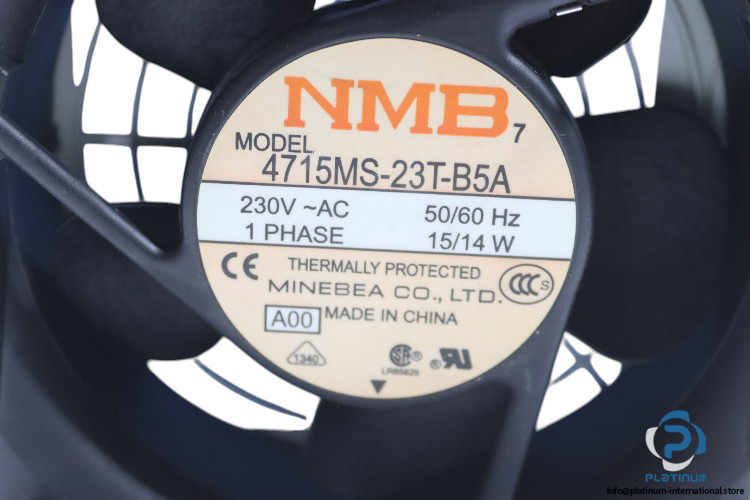

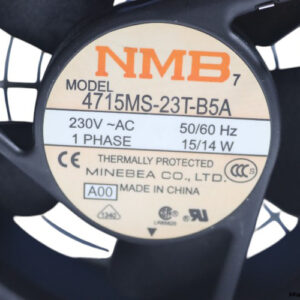

This unit comes equipped with a high-performance NMB 4715MS-23T-B5A Axial Fan, known for its quiet operation and robust design. Featuring a square frame, ball bearing system, and 5 blades, it provides an impressive airflow of 2.5 m³/min (89.3 CFM) at 2600 rpm. Built from durable plastic materials, the fan ensures reliable operation without an inverter.
Manufacturer: Rittal
Type: Fan and Filter Unit
Part No.: 1044004
Axial Fan (Attachment):
| Rated Voltage | 230 V AC |
| Frequency | 50 to 60 Hz |
| Current | 0.12 / 0.10 A |
| Nominal Output | 15 / 14 W |
| Dimension | 149 x 149 mm |
| Frame Shape | Square Frame |
| Dimension | 119 x 119 x 38 mm |
| No. of Blades | 5 |
| Bearing | Ball Bearing |
| Rated Voltage | 230 V AC |
| Frequency | 50 to 60 Hz |
| Current | 0.12 A |
| Power | 15 / 14 W |
| Speed | 2600 rpm |
| Flow Rate | 2.5 m³/min, 89.3 CFM |
| Inverter | Without |
| Blade / Housing Material | Plastic |
