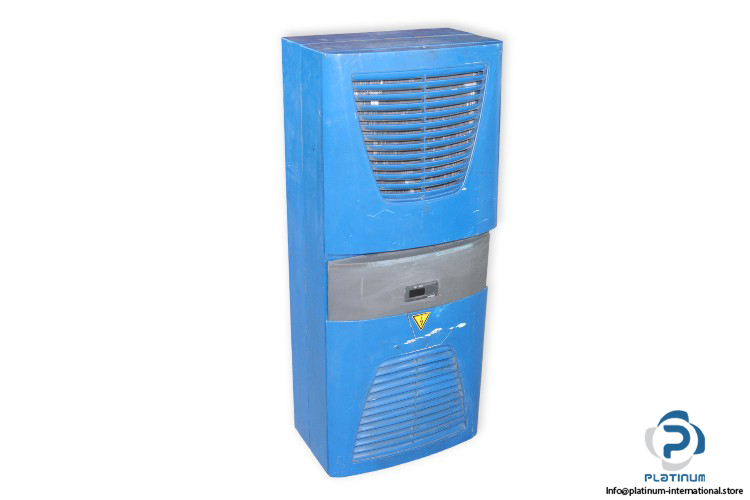

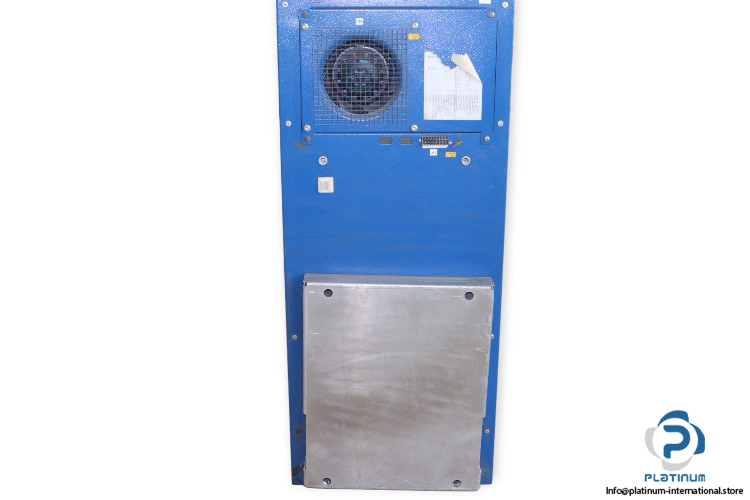

Rittal SK 3305140 Wall-Mounted Cooling Unit

Manufacturer: Rittal
Type: Wall-mounted cooling unit with Basic controller
Model: SK3305140

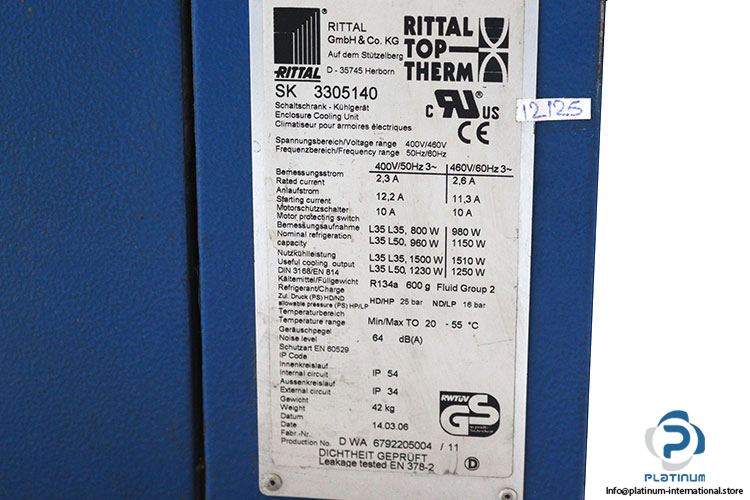

Rated operating voltage: 400/460 V-3 Phase, 50/60 Hz
Rated current: 2.6 A@460 V/2.3 A @400 V
Start-up current: 11.3 A@460 V/12.2 A @400 V
Air throughput: External circuit: 900 m³/h, Internal circuit: 800 m³/h
Power consumption Pe:
Power consumption L35 L35: 800 W@400 V,980 W@460 V
Power consumption L35 L50/: 960 W@400 V,1150 W@460 V
Power consumption L35 L35: 1500 W@400 V,1510 W@460 V
Power consumption L35 L50/: 1230 W@400 V,1250 W@460 V
Design: wall-mounted
Protection degree: External circuit IP 34, Internal circuit IP 54
Pre-fuse Motor circuit-breaker: 6.3 … 10 A

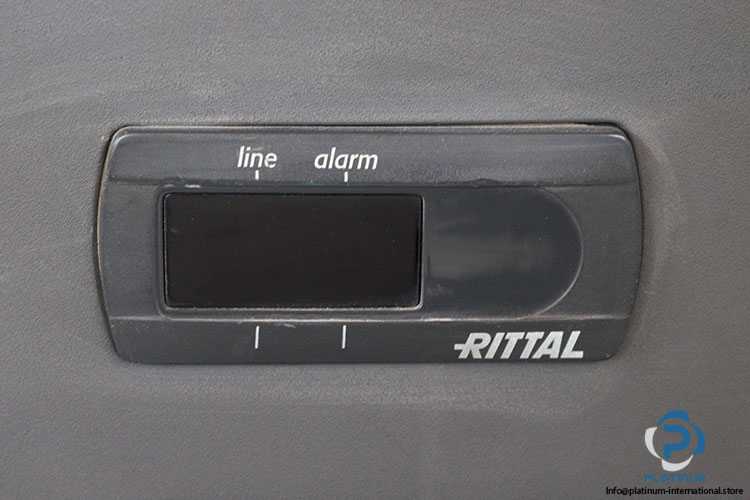

Temperature control: Basic controller
Material: Sheet steel
Operating temperature range: 20 … 55°C
Dimensions: 400 X 950 X 260 mm
