Rittal SK3209.100 Air/Water Heat Exchanger
New
In stock3 unitsReady to ship
1 199,99$
Air / Water Heat Exchanger
RITTAL air/water heat exchanger SK3209.100 for efficient enclosure cooling, featuring high cooling output, IP55 protection, and reliable performance in industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

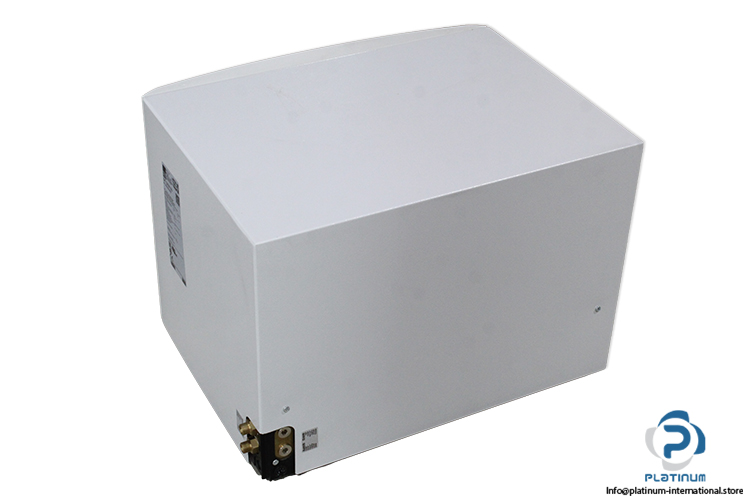

RITTAL SK3209.100 Air/Water Heat Exchanger
The RITTAL SK3209100 air/water heat exchanger is designed for efficient thermal management of electrical enclosures and industrial control systems. It provides reliable heat dissipation using an air and water cooling principle, ensuring stable operating conditions for sensitive components in demanding environments.

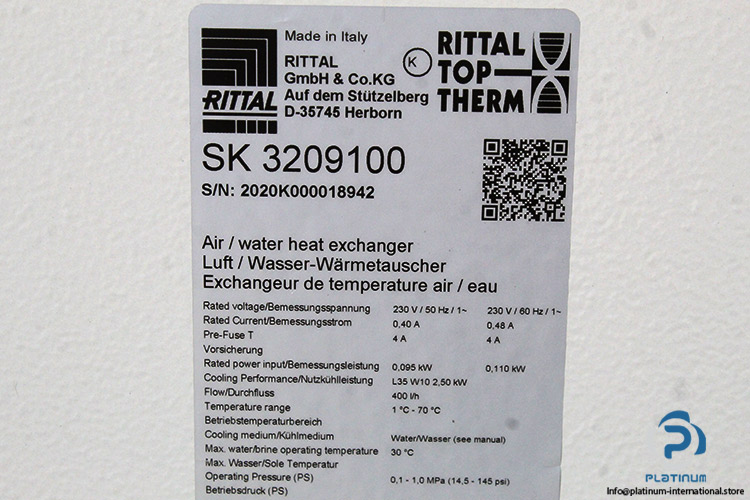

Manufacturer: RITTAL
Type: Air / Water Heat Exchanger
Model: SK3209.100
Prod. Order: 121411099
Ser. No.: 2020K000018942
| Rated Operating Voltage | 1-Phase 230 V AC |
| Frequency | 50 / 60 Hz |
| Power Consumption at 50 Hz | 95 W |
| Power Consumption at 60 Hz | 110 W |
| Rated Current Max. at 50 Hz | 0.4 A |
| Rated Current Max. at 60 Hz | 0.48 A |
| Setting Range | 20 ... 55 °C |
| Cooling Medium | Air / Water |
| Water Inlet Temperature | 1 ... 30 °C |
| Total Cooling Output | L 35 W 10 at 400 l/h: 2.5 kW |
| Permissible Operating Pressure | 1 “ 10 bar |
| Flow Rate | 400 l/h |
| Electrical Connection | Plug-in Terminal Strip |
| Water Connections | G1/2 Connector Sleeve, G3/8 External Thread |
| Protection Class | IP55 |
| Operating Temperature Range | 1 ... 70 °C |
| Dimensions | 417 x 597 x 475 mm |
