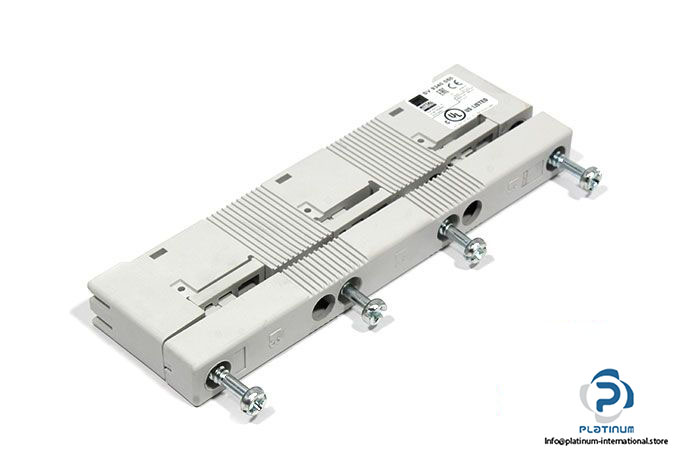

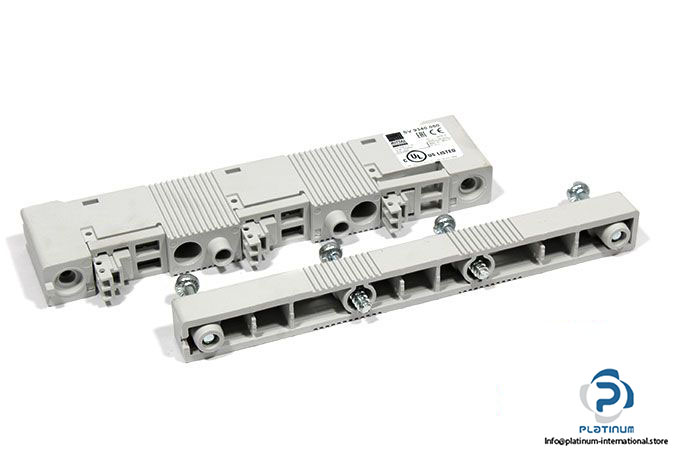

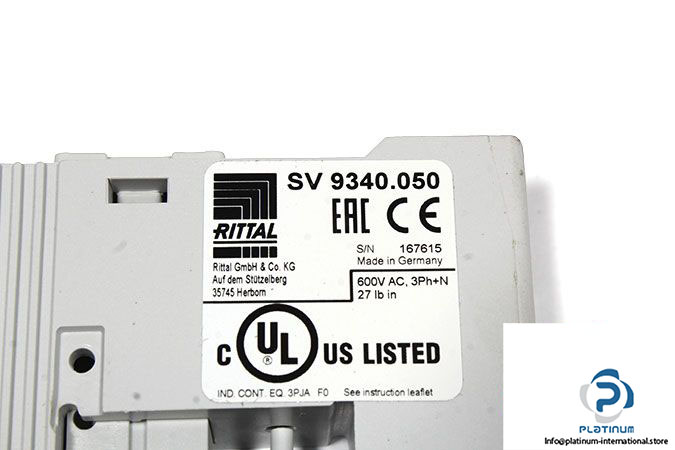

Rittal SV 9340.050 Busbar Support

Manufacturer: RITTAL GmbH

Type: Busbar Supports For Flat Copper Busbars

Model:  SV 9340.050

Suitable for busbars: With dimensions (mm): 15 x 5 – 30 x 10

Material: Polyamide Fire protection corresponding to UL 94-V0

Rated operating voltage: 1000 V, 3~ 1500 V (DC)

Center-to-center spacing of busbars: 60 mm

Weight: 0.18 kg
