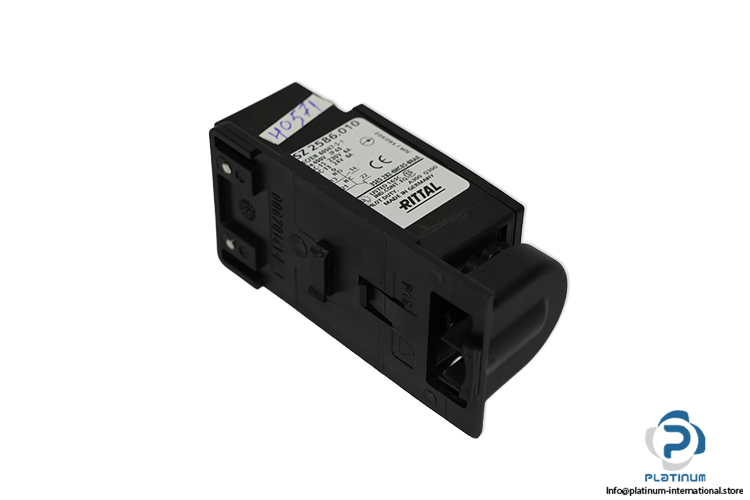

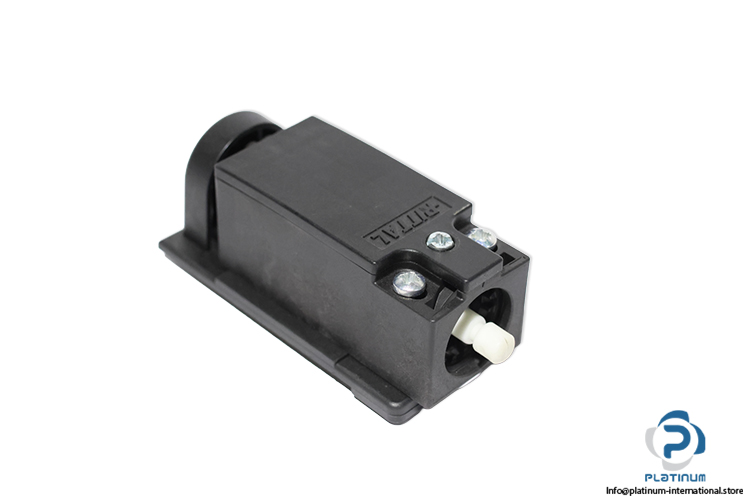

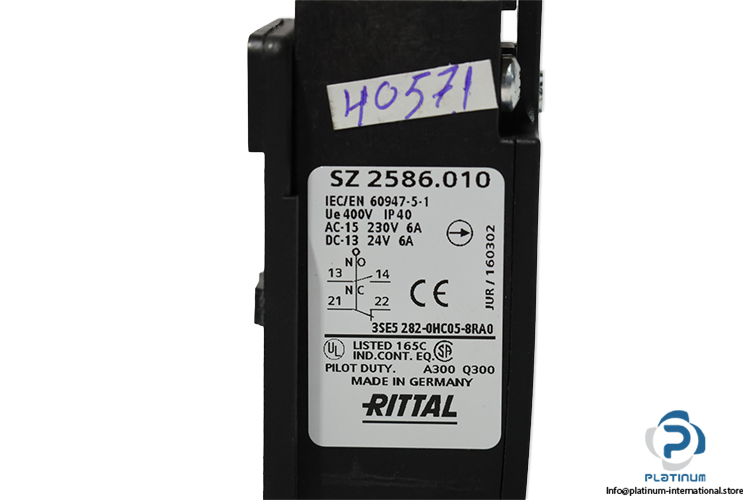

Rittal SZ 2586.010 Door Operated Switch
New
In stock2 unitsReady to ship
Door Operated Switch The Rittal SZ 2586.010 is a door operated switch with NO/NC contacts and pin plunger actuator for cabinet lighting and signaling control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ref. No. | 3SE5 282-0HC05-8RA0 |
| Function | Controls Cabinet Lighting And Signaling (Activates Light or Signal when the Enclosure Door Opens) |
| Rated Operating Voltage | 400 V AC |
| Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Contact Ratings | AC-15: 230 V, 6 A / DC-13: 24 V, 10 A |
| Actuator Type | Pin Plunger |
| Protection Class | IP40 |
| Dimensions | 80 x 30 x 30 mm |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1104215 |
| Weight | 0,07 |
