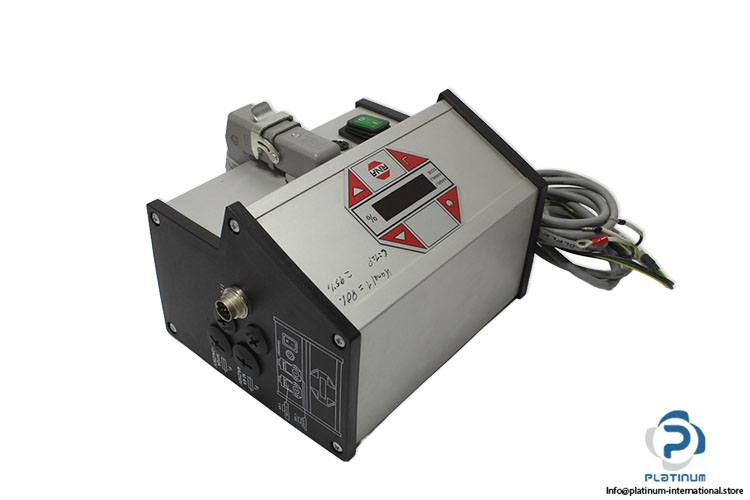

RNA ESK 2000 Control BOX
Used
In stock1 unitReady to ship
Control Box The RNA ESK 2000 is an industrial control box with adjustable output, sensor inputs, relay outputs, soft start/stop, and IP54 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

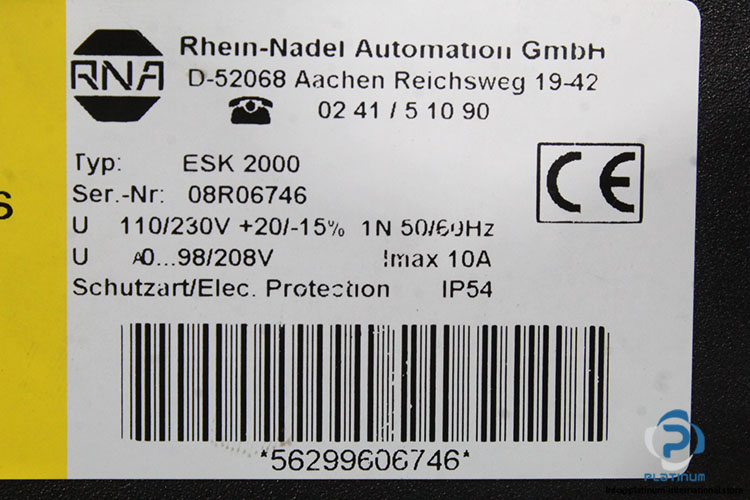

| Ser. No. | 08R06746 |
| Mains Voltage | 230 / 110 V AC |
| Frequency | 50/60 Hz |
| Output Voltage | 0 … 208 Veff / 230 V AC; 0 … 98 Veff / 110 V AC |
| Load Current | 10 Aeff |
| Minimum Load Current | 80 mA |
| Internal Fuse | F1 = 10 A |
| Soft Start Time / Soft Stop Time | 0...5 sec., Separately Selectable |
| External Setpoint | 0...10 V DC |

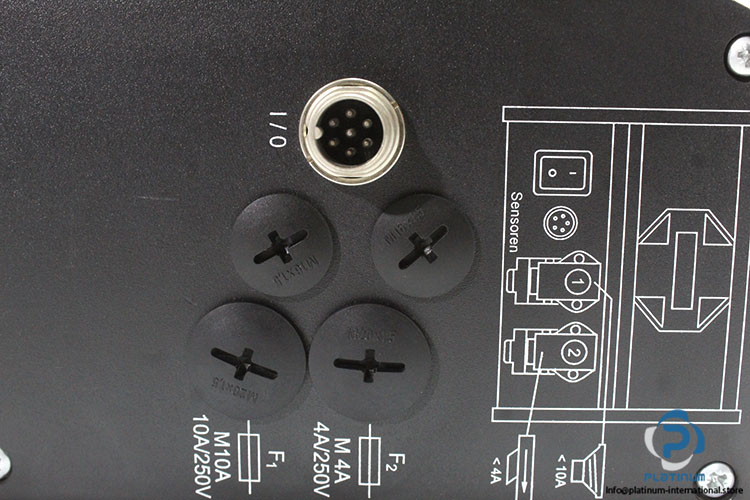

| Sensor Inputs | 2 |
| Remote Control Input | 24 V DC (10-24 V DC) |
| Sensor Power Supply | 24 V DC, Max. 60 mA Per Sensor Input |
| Sensor Delay ON | 0 … 60 sec., Separately Adjustable |
| Sensor Delay OFF | 0 … 60 sec., Separately Adjustable |
| Outputs | 2 Relays / 2 Normally Open NO |
| Status Output (Optocoupler) | Max. 30 V DC, 10 mA |
| Relay Contacts | Max. 6 A, 250 V AC |
| Protection Class | IP54 |
| Operating Temperature | 0 … 50 °C |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103888 |
| Weight | 2,27 |
