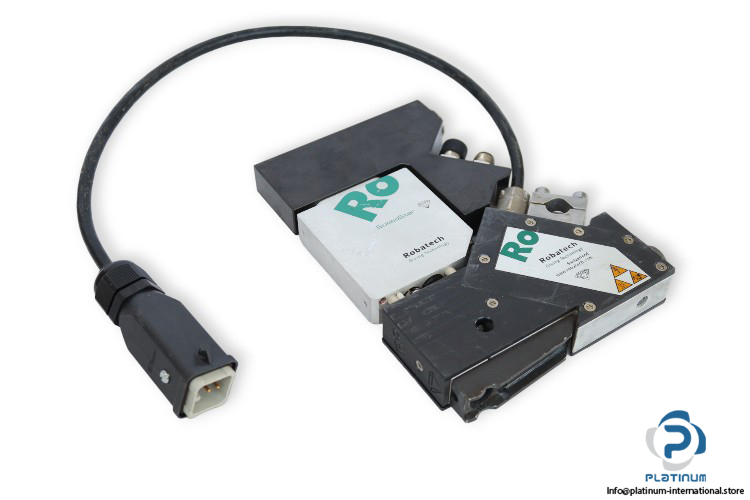

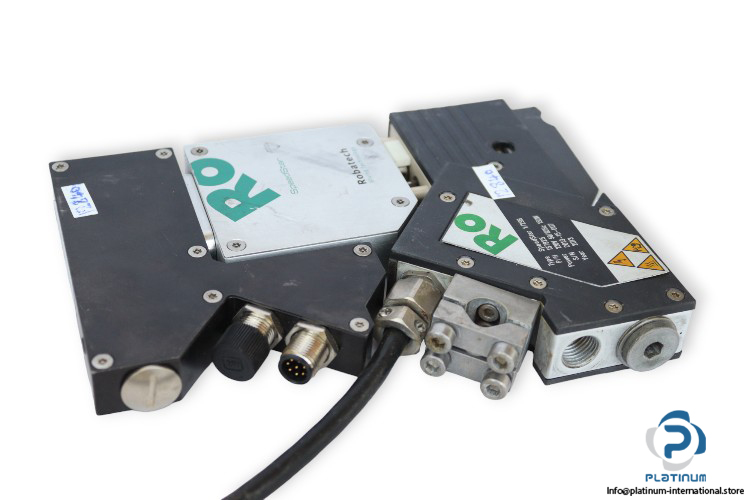

Robatech Speedstar 1/296 HOT Melt Jetting Head

Manufacturer: ROBATECH
Type: Hot Melt Jetting Head
Model: SPEEDSTAR 1/296
Code No: A161500 / 157925

Function: Speedstar Compact Is the Application Head for Precise Adhesive Application at High Production Speeds, the Electric Jetting Head Applies Millimeter-Sized Hot-Melt Dots and Short Beads to Tiny Flaps and Small Surfaces.
Temperature Range: 20 … 185 °C
Adhesive Pressure Max. 75 Bar
Adhesive: Thermoplastic Adhesives
Adhesive Viscosity: 100 … 2,500 mPas

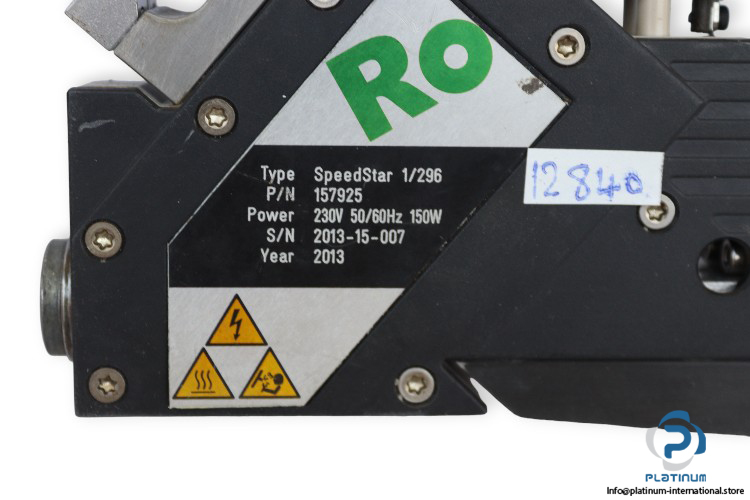

Supply Voltage: 230 V AC
Frequency: 50 … 60 Hz
Power: 150 W

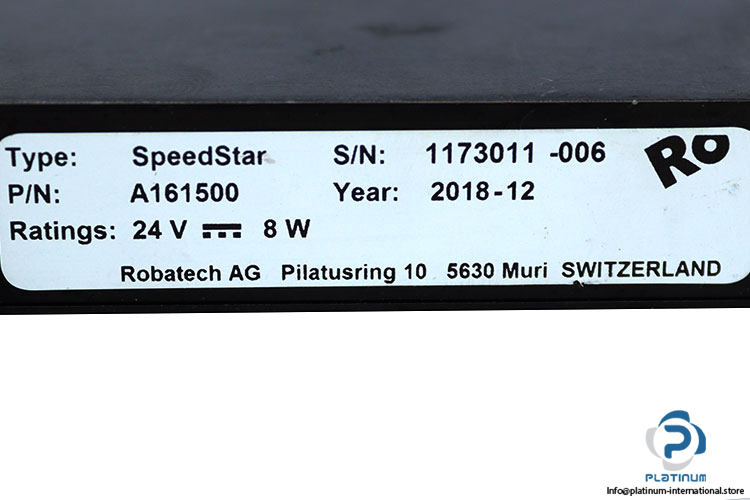

Control Signal Ratings: 24 V DC, 8 W
Nozzles: 296 Diamond
Attachment: for Shaft Diameter 12 mm, Flat Bar or M5 Thread
Sound Pressure Level: 62 dB(A)
Protection Class: IP55
Operating Temperature: 0 … 60 °C
Jetting Element Width: 18 mm
Dimensions: 132.3 x 24 x 139.6 mm
