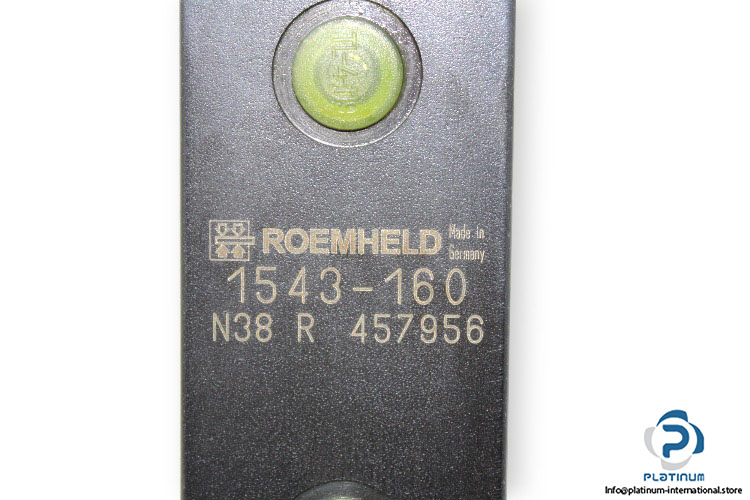

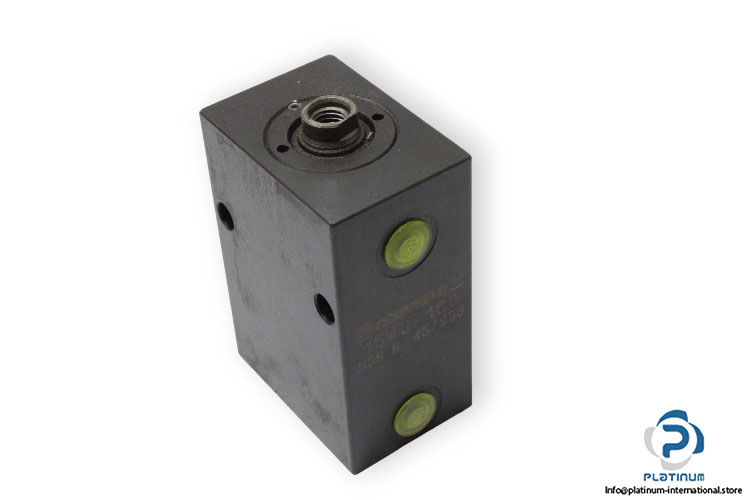

Roemheld 1543-160 Block Cylinder

Manufacturer: ROEMHELD

Type: Block Cylinder

Model: 1543160

Mode Of Operation: Double acting

Piston Diameter: 25 mm

Stroke: 50 mm

Rod Diameter: 16 mm

Piston Rod End: internal thread M10

Max. Operating Pressure: 500 bar

Pipe Thread: G ¼

Max. Force to Push: 24.5 KN

Max. Force to Pull: 14.5 KN

Body Material: Steel

Fluid Temperature Range: -30 … 100°C
