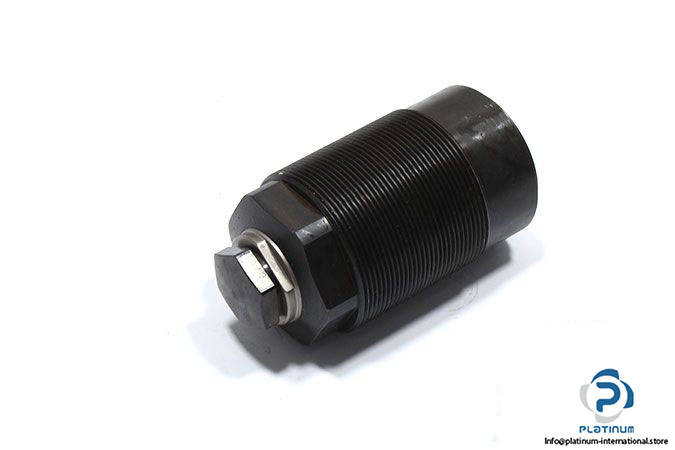

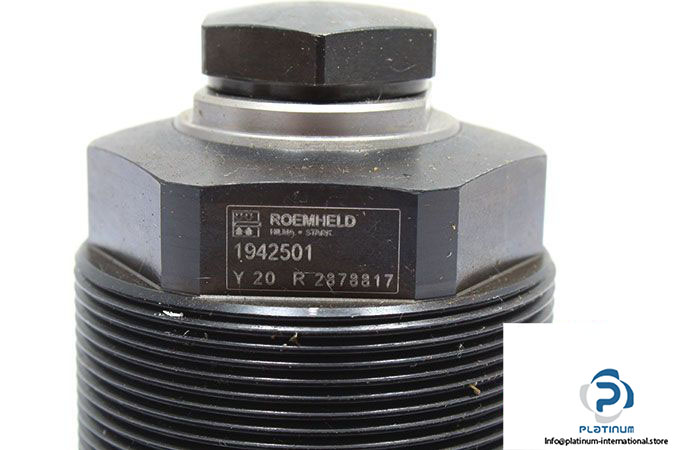

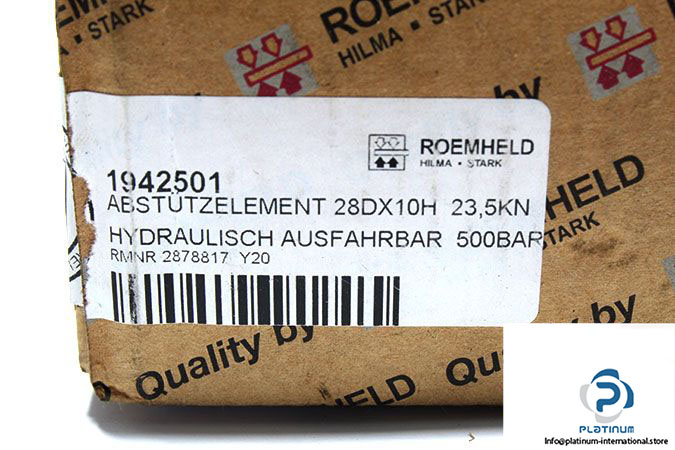

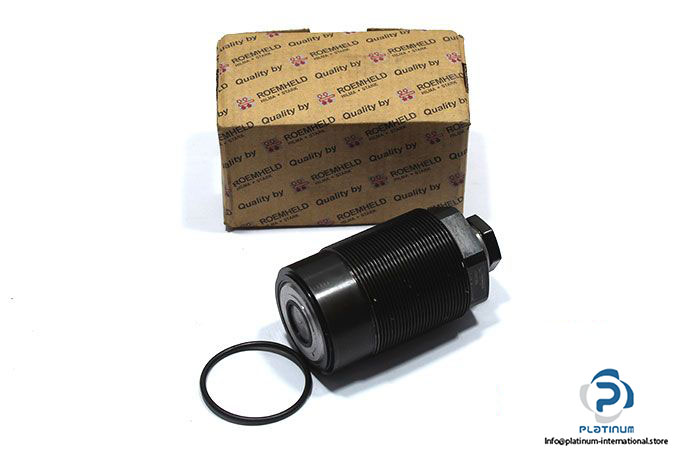

Roemheld 1942501 Hydraulic Cylinder

Manufacturer: Roemheld

Type: Hydraulic Actuator

Part No.: 1942501

Piston Diameter: 28 mm

Stroke: 10 mm

Mode of operation: single acting, metallic wiper edge with venting of the spring area

Mounting style: metallic wiper edge

Maximum operating pressure: 500 bar

Load Force: 23.5 kN

Piston rod end: Hexagon

Connection: threaded-body type M48

Weight: 1 kg
