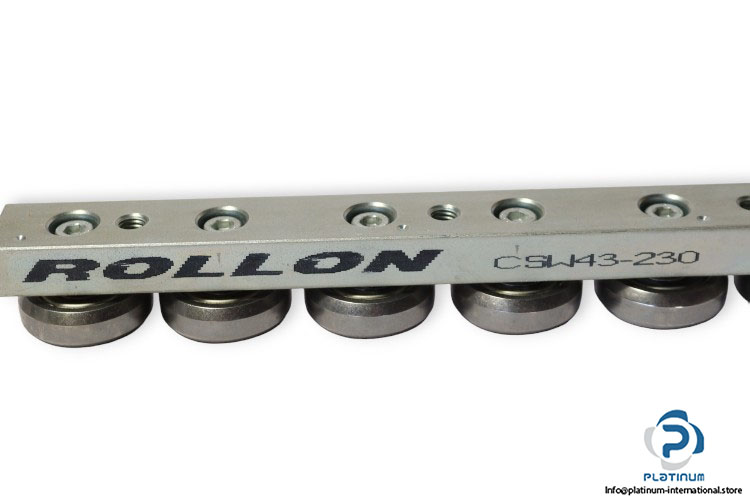

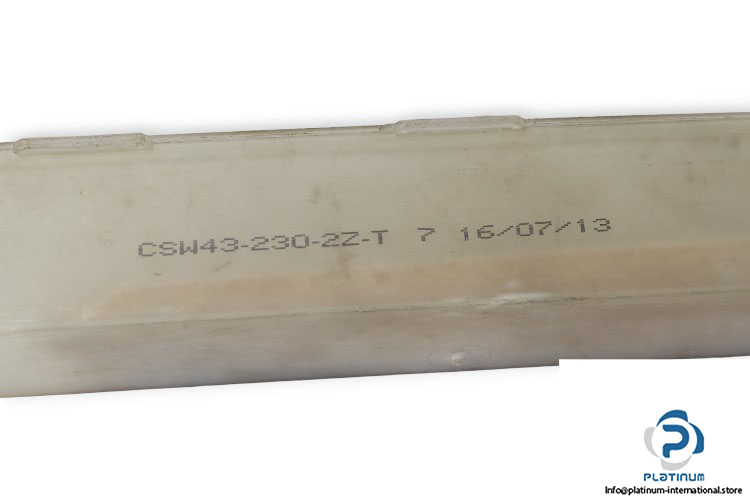

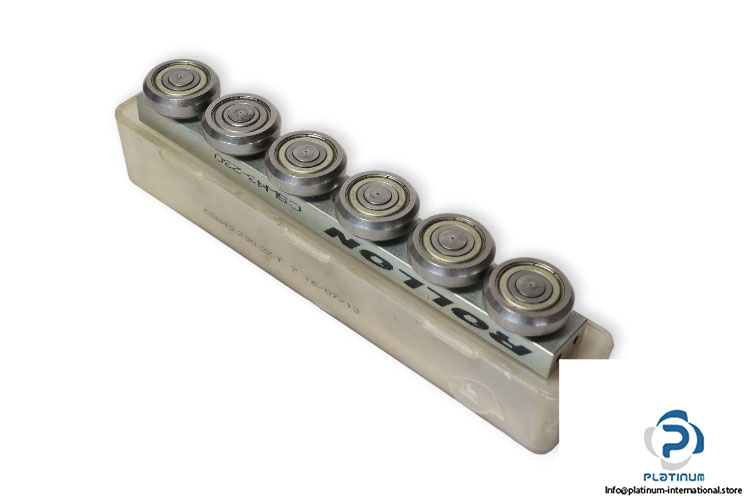

Rollon CSW43-230-2Z-T Linear Roller Bearing

Manufacturer: ROLLON
Type: SLIDER
Model: CSW 43 230 2Z T

Number of rollers: 6
Type of roller: CPA43
Number of fixing holes: 3

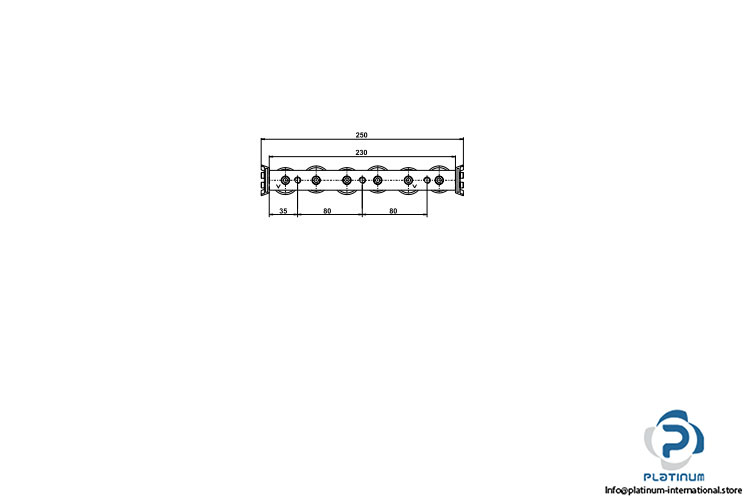

Dimensions:
Nominal Diameter: 43 mm
Slider body length: 230
S1: 1.4 mm
S2: 2.5 mm
B_min: 35.6 mm
B_nom: 37 mm
B_max: 39.5 mm
Roller protection: 2Z, shield type
Type of wiper: T
Acceleration: 15 m/s²
Dynamic Load Capacity: 14675 N
Radial Static Load Capacity: 6540 N
Axial Static Load Capacity: 2645 N
Moment Capacity
Mx: 52 Nm
My: 135.8 Nm
Mzd: 313.5 Nm
Mzs: 522.5 Nm
Operating Temperature: – 20°C/+120°C
