Rollon MCR105LI Linear Actuator
New
In stock2 unitsReady to ship
Linear Actuator
Rollon MCR105LI Linear Actuator features a 1348 mm stroke, 5 m/s maximum speed, and 3300 N load capacity. Its compact design with belt handling ensures high precision and smooth motion for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Rollon MCR105LI Linear Actuator

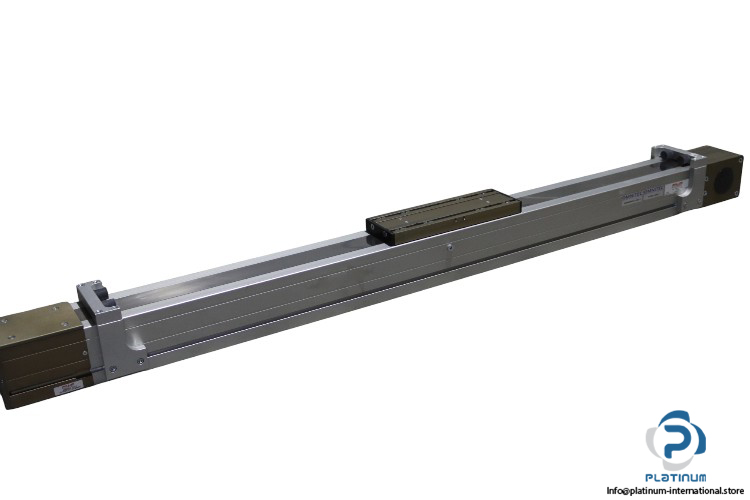

The Rollon MCR105LI Linear Actuator is a highly efficient and robust actuator designed for precise movement. With a compact closed section and a belt-driven system, it is ideal for high-performance applications requiring smooth motion and high load capacities.
Manufacturer: Rollon
Model: MCR105LI
Type: Linear Actuator

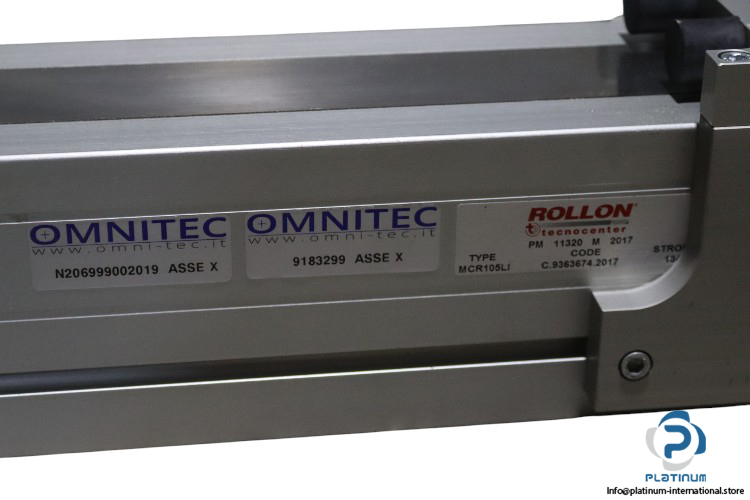

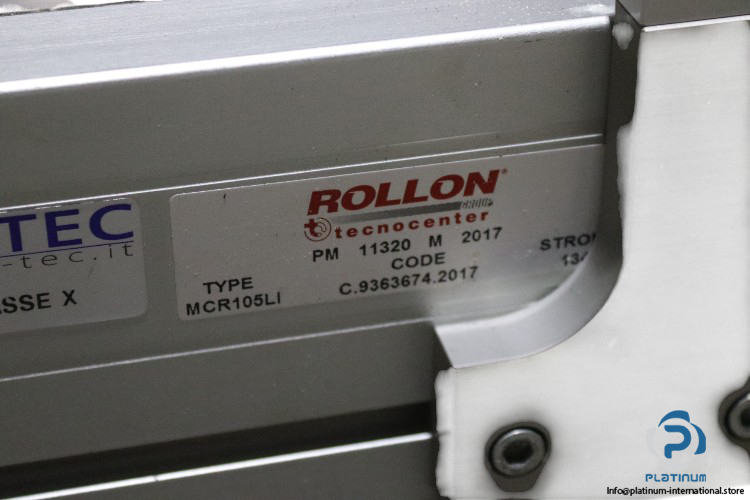

Part No.: C.9363674
Assembly (X) Part No.: 9183299
Maximum Simultaneous Stresses:
Load Capacities:
| Size | 105 |
| Series | M, compact closed section |
| Handling | C, with belt |
| Total Length | 166.5 cm |
| Stroke | 1348 mm |
| Pulley Diameter | 92.31 mm |
| Carriage Displacement per Pulley Turn | 290 mm |

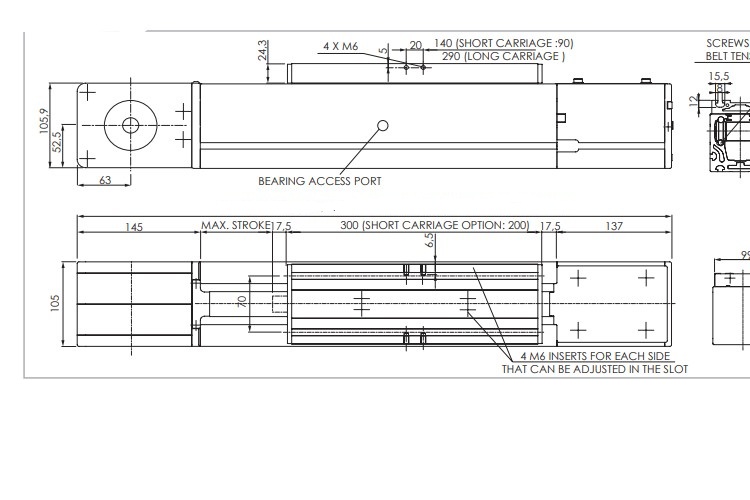

| Pole Holder Dimension | 105.9 x 145 mm |
| Type of Belt | 40 AT 10 |
| Belt Width | 40 mm |
| Maximum Speed | 5 m/s |
| Maximum Acceleration | 20 m/s² |
| Mx | 185 Nm |
| My, Mz | 580, 220 Nm |
| Fx | 3300 N |
| Fy, Fz | 1500, 2950 N |
