Rosemount 1054B-01 Microprocessor
Used
In stock1 unitReady to ship
Rosemount Analytical Microprocessor 1054B01 with 115/230 V AC supply voltage, adjustable interval timer, and relay contact ratings up to 5.0 Amps. Designed for industrial applications with a wide operating temperature range of -10 to 65°C.
10115/2305.065°CACAdjustableAmbientAmpscontacts.ControlEpoxyIndustrialIntervalMicroprocessorPowerRelayRosemountSealedSpstsupplyTemperatureTimertoV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

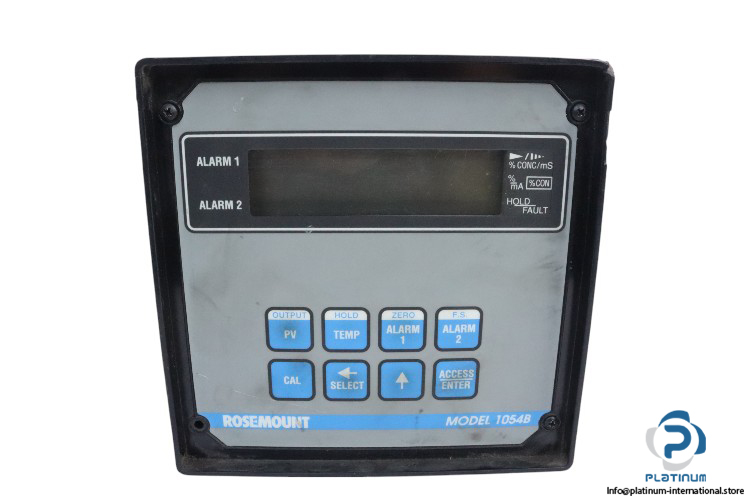

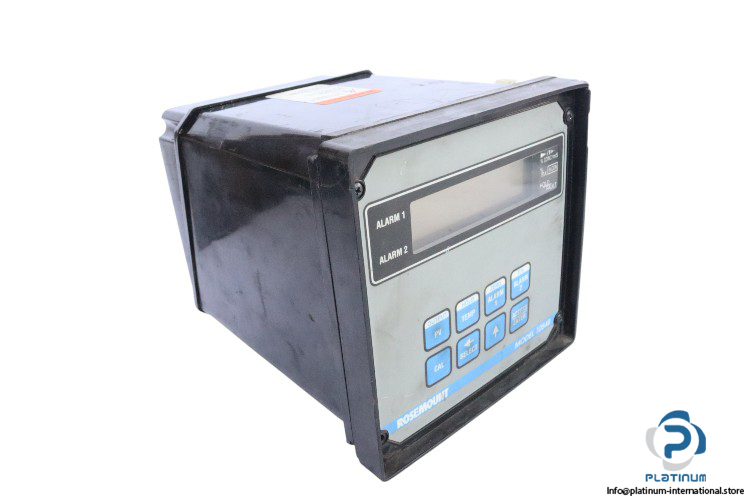

Rosemount Analytical Microprocessor 1054B01
Rosemount Analytical Microprocessor 1054B01 is a high-performance device designed for industrial applications, providing precise control and monitoring functions. It features adjustable interval timing, relay contacts, and a wide temperature range, making it ideal for diverse environmental conditions. Below are the key technical specifications:
- Manufacturer: Rosemount Analytical
- Type: Microprocessor
- Model: 1054B01
- Part No.: 1054/1064A/10543/2054
Technical Data:
- Supply Voltage: 115/230 V AC
- Frequency: 50/60 Hz
- Power: 4 W
- Relay Contacts: Epoxy Sealed Form A contacts, SPST, Normally Open
- Relay Ratings (115 Vac): Resistive: 5.0 Amps, Inductive: 3.0 Amps
- Relay Ratings (230 Vac): Resistive: 5.0 Amps, Inductive: 1.5 Amps
- Interval Timer:
- Interval: Minimum 10 minutes
- On Counts: 1 to 60
- On Duration: 1 to 299 seconds
- Off Duration: 1 to 299 seconds
- Wait Duration: 1 to 299 seconds
- Ambient Temperature: -10 to 65°C
- Dimensions: 144 X 144 X 192 mm
