Rosemount 1151 LT4SA4F22D Pressure Transmitter
New
In stock1 unitReady to ship
1 299,99$

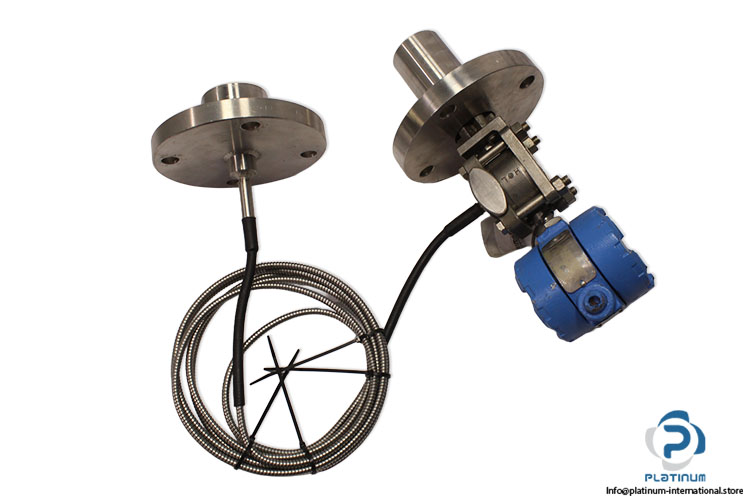

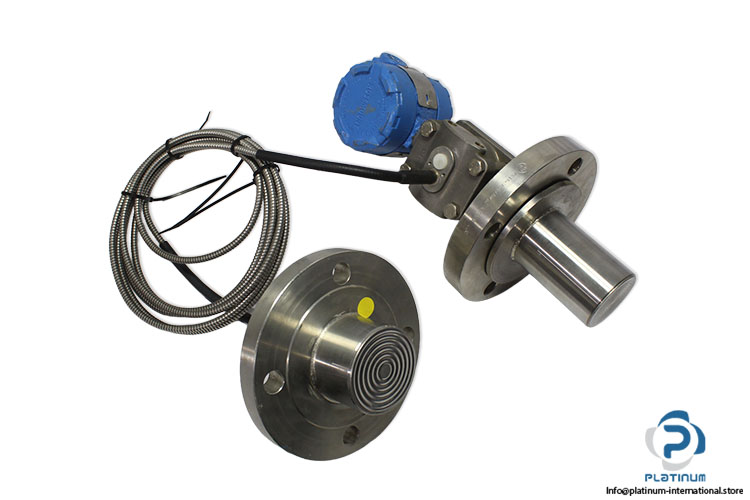

ROSEMOUNT Pressure Transmitter The ROSEMOUNT 1151 LT4SA4F22D is a high-accuracy flange-mounted pressure and liquid level transmitter designed for critical industrial process measurement applications. Featuring HART smart communication, 4–20 mA output, and robust stainless steel construction for reliable long-term operation.
Calibration Pressure:
-550 To 65 mmH2O
Pressure Range:
150 inH2O
Flange Material:
316L SST

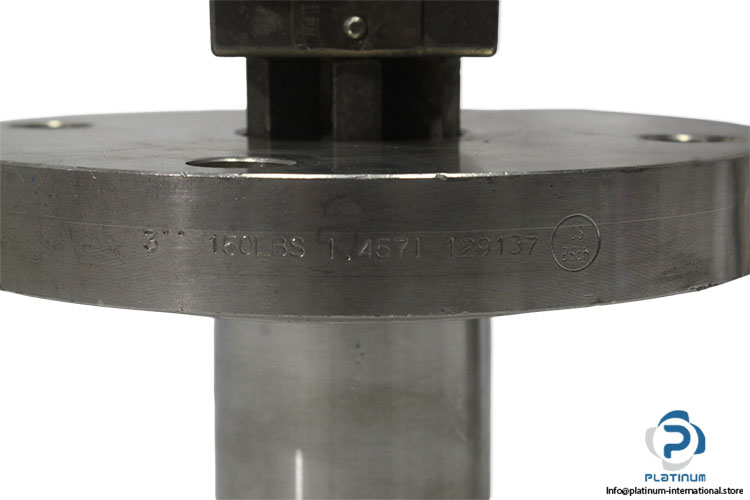

Flange Size:
3 in./DN 80
Power Supply:
Max. 45 VDC
Output:
4–20 mA With HART Protocol
Max Working Pressure:
150 lbs
0.2AccuracyANDApplicationsAtexDeltabardemandingdifferentialFieldbusforFoundationHartIndustrialInstrumentationIP66PAPresPressureProcessProfibusProtectionSensorsTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

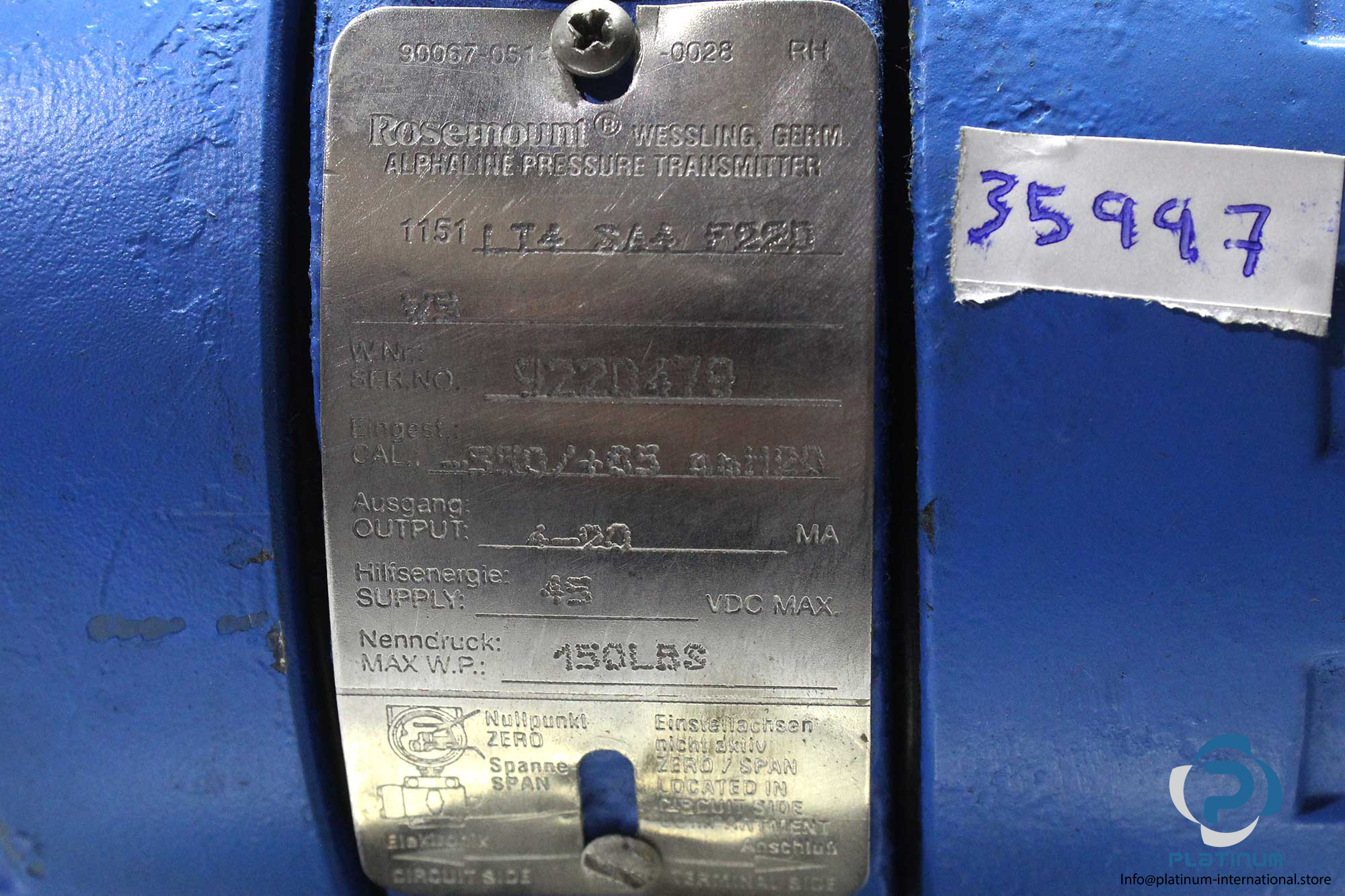

| SN | 9220479 |
| Ref No | 1151-937-7 / AA |

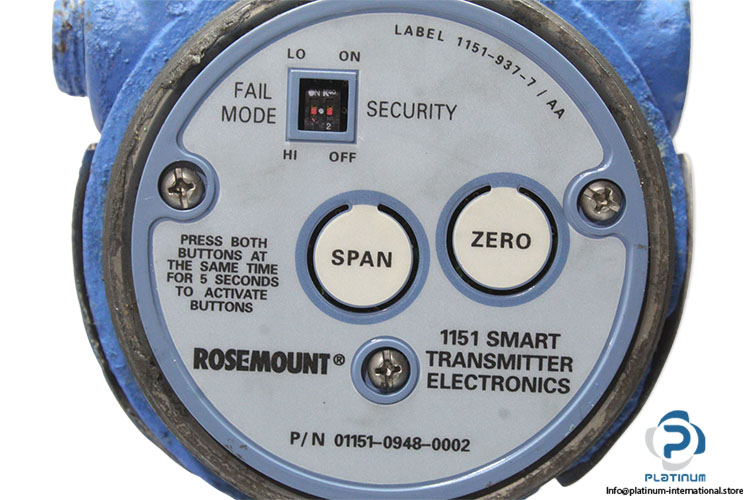

| Part No. | 01151-0948-0002 |

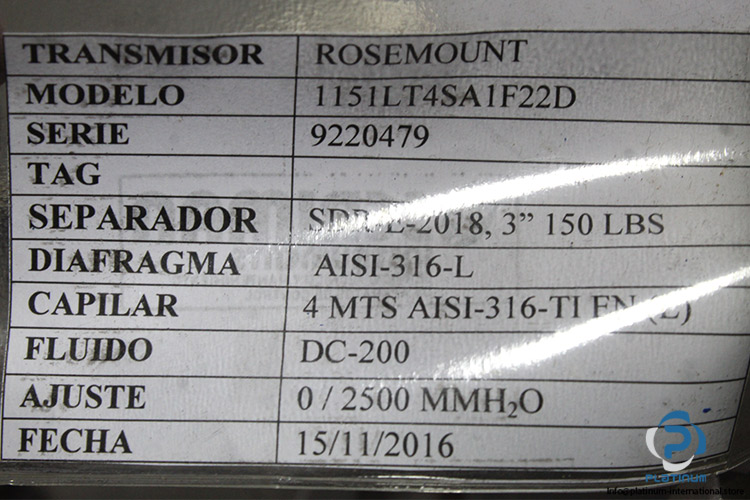

| MNR | 1151LT4SA1F22D |
| Calibration Pressure | -550 to 65 mmH2O |
| Pressure Range | 150 inH2O (0–635 to 0–3,810 mmH2O) |
| Flange Materials | 316L SST |
| Flange Size | 3 in./DN 80 |
| Mounting Flange | 3 in |
| Mounting Flange Material | SST |
| Applicable with these High Pressure Side Diaphragm Size | 3 in./DN 80 |
| Process Fill - High Pressure Side | D. C. Silicone 200 |
| Low-Side Flange and Adapter Drain/ Vent Valves Material | 316 316 SST |
| Power Supply | max. 45 VDC |
| Output | 4–20 mA with Digital Signal based on HART Protocol (Smart |
| Max Working pressure . | 150 lbs |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099064 |
| Weight | 20 |
