Rosemount 1151DP4S22S2B1L404 Pressure Transmitter
New
In stock1 unitReady to ship
1 299,99$
ROSEMOUNT Differential Pressure Transmitter The ROSEMOUNT 1151DP4S22S2B1L404 is a smart differential pressure transmitter engineered for precise industrial process measurement. Featuring HART digital communication, 4–20 mA output, 316 stainless steel wetted parts, silicone fill fluid, and robust pipe-mount construction for reliable long-term performance.
Pressure Range:
150 inH2O (37.3 kPa)
Operating Pressure:
45 To 275 PSI
Output:
4–20 mA + HART Smart Signal
Wetted Material:
316-SST
Fill Fluid:
Silicone
Mounting:
2-in. Pipe Mount Bracket
Stock Key:
COO-003
0.2AccuracyANDApplicationsAtexDeltabardemandingdifferentialFieldbusforFoundationHartIndustrialInstrumentationIP66PAPresPressureProcessProfibusProtectionSensorsTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 01151-0934-0004 |
| Ser. No. | 2012902 |
| Pressure Range | 150 inH2O (37.3 kPa) |
| Flanges/Adapters, Drains/Vents ,Diaphragms Material | 316- SST |
| Fill Fluid Material | Silicone |
| Mounting Brackets (optional - select one) | Bracket, 2-in. Pipe Mount |

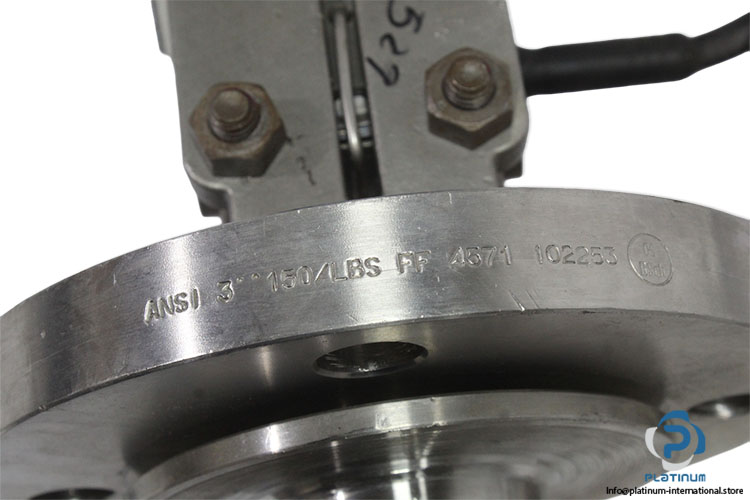

| Separator | ANSI 3 150/LBS FF 4371 |
| Pressure | 45 to 275 PSI |
| Output | 4–20 mA with Digital Signal based on HART Protocol (Smart) |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099063 |
| Weight | 18,2 |
