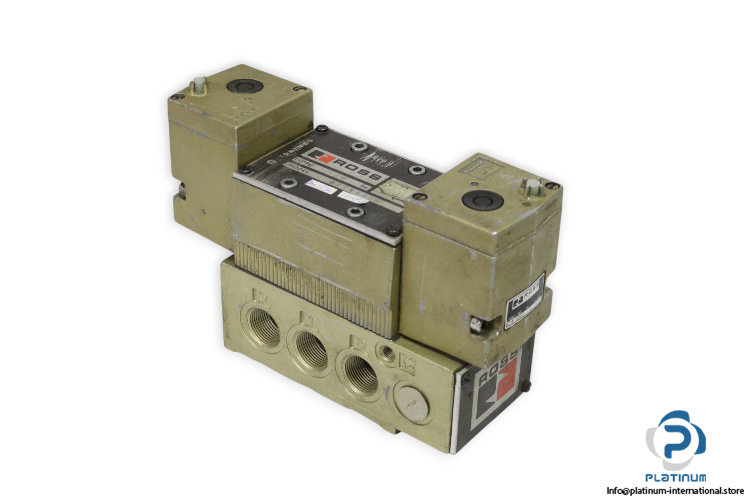

Ross W7077A4331 Double Solenoid Control Valve
Double Solenoid Control Valve
The Ross W7077A4331 (Series W70) is a 5/3-way double solenoid valve with 24 V DC actuation, G3/4 port size, and robust cast aluminum body, suitable for industrial pneumatic systems.Ross Double Solenoid Control Valve W7077A4331 (Series W70)
The Ross W7077A4331 from the W70 series is a high-performance double solenoid control valve designed for reliable operation in industrial pneumatic systems. With a 5/3-way configuration, normally closed default position, and robust cast aluminum body, this valve ensures safe and efficient control of filtered air in demanding environments. Its stainless steel internals and Buna-N seals provide durability and extended service life.
Manufacturer: Ross
Type: Double Solenoid Control Valve

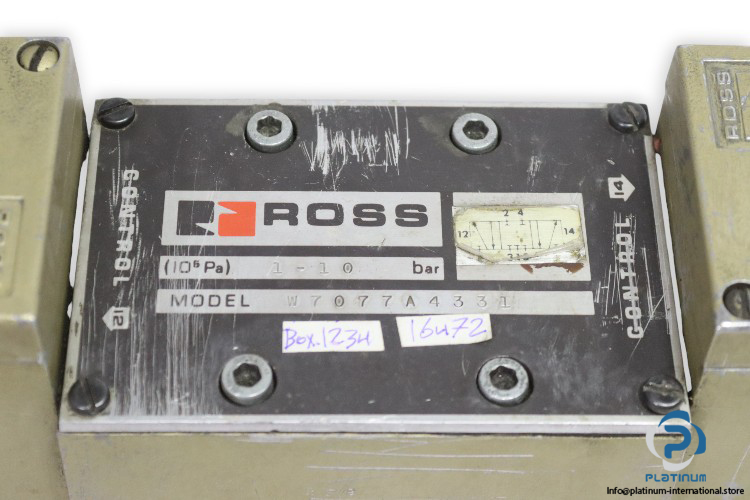

Model: W7077A4331
Series: W70
| Flow Media | Filtered air |
| Type of Actuation | Electrically |
| Function | 5/3-way, Double Solenoid |
| Default Position | Normally Closed |
| Operating Pressure | 1 to 10 bar |

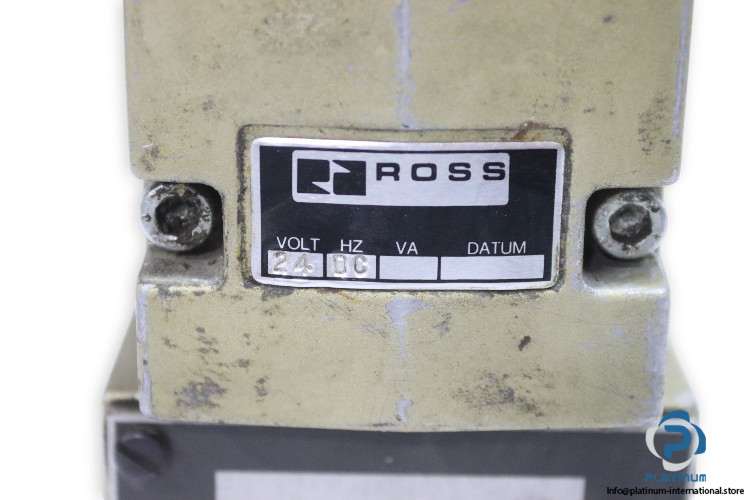

| Voltage | 24 V DC |
| Port Size | G3/4 |
| Ambient Temperature | 4 to 50°C |
| Media Temperature | 4 to 80°C |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Stainless Steel |
| Seal Material | Buna-N |
| Dimensions | 99 x 306 x 101 mm |
