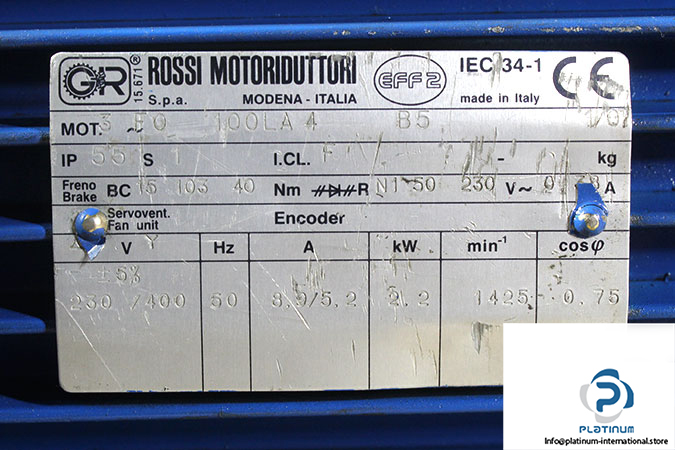

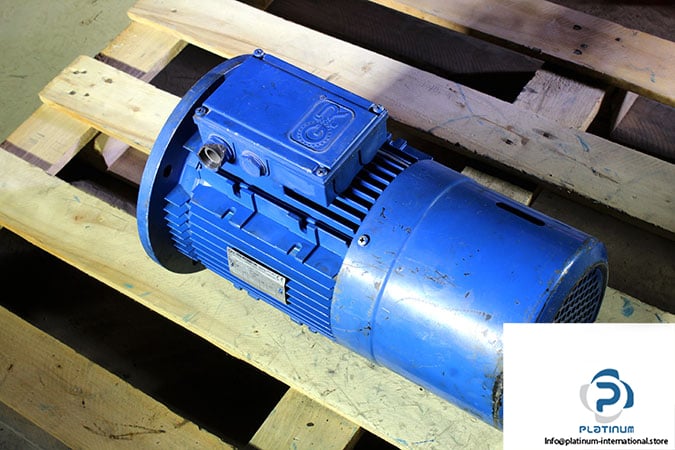

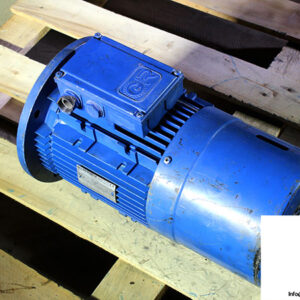

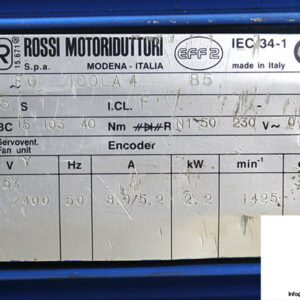

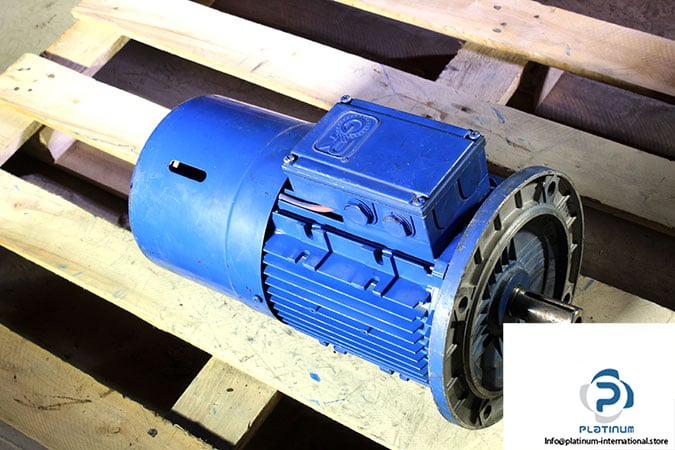

Rossi F0 100LA4 B5 Brake Motor

Manufacturer: Rossi
Type: Brake Motors
Model: F0100LA4B5

Motor Speed [r/min]: 1425
Motor Power [kW]: 2.2
Rated Voltage [V]: 230/400
Nominal Current [A]: 8.9/5.2
Motor Frequency [Hz]: 50
Cos Phi: 0.75
Thermal Class: F
Duty: S1
Protection Class [IP]: 55
Mounting Position [MI]: B5
Brake Model: BC15 103
Brake Torque [Nm]: 40
Brake Voltage [V]: 230
Brake Current [A]: 0.38
Weight [kg]: 29,6
