Rotech TPFF25EMVAZ Position Indicator Unit
Position Indicator Unit
High-performance Rotech TPFF25EMVAZ position indicator equipped with Pepperl + Fuchs NBN3-F25F-E8 inductive sensor. Offers precise feedback, durable construction, IP67 protection, and reliable operation in demanding automation environments.Rotech TPFF25EMVAZ Position Indicator Unit

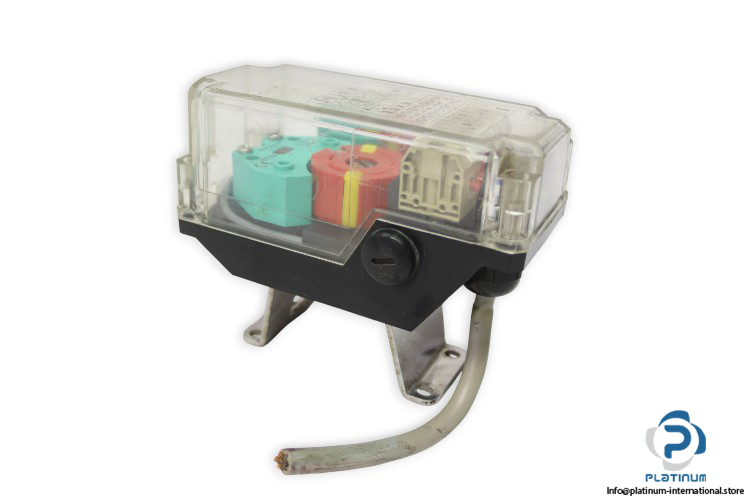

The Rotech TPFF25EMVAZ Position Indicator Unit is a highly reliable and precise solution designed for monitoring rotary and linear movement in industrial automation systems. Built with durable materials and engineered for long-term performance, it offers accurate position feedback essential for demanding applications such as conveyors, process machinery, material handling systems, and automated control setups.

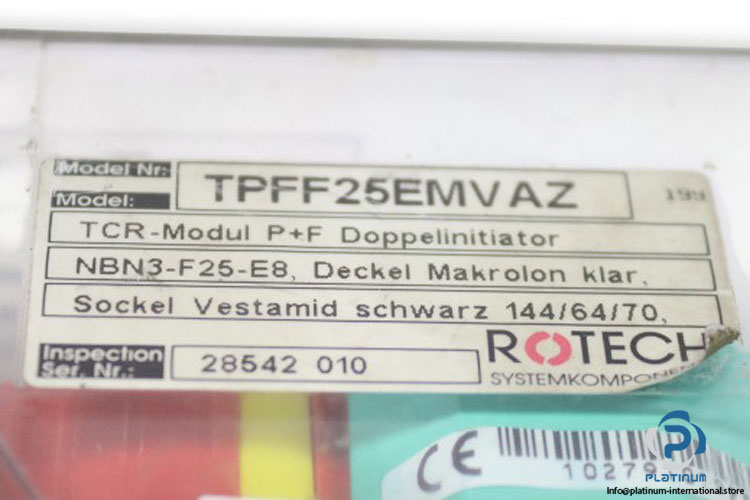

Manufacturer: Rotech
Type: Position Indicator Unit
Model: TPFF25EMVAZ
Serial No.: 28542 010

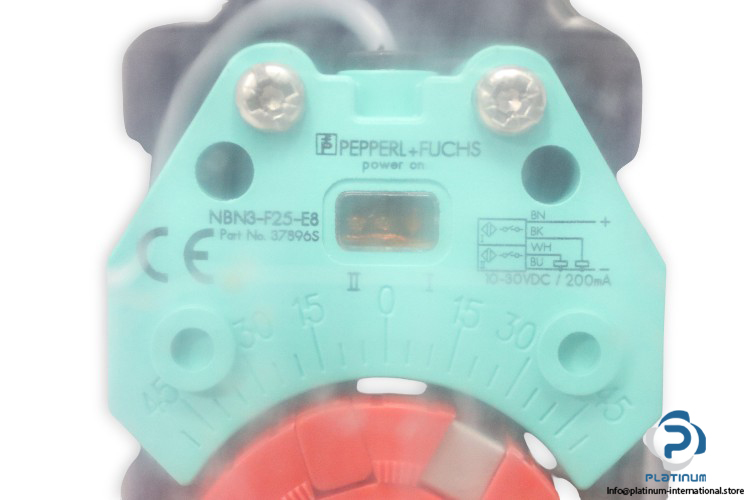

Pepperl + Fuchs Inductive Proximity Sensor
Type: NBN3-F25F-E8
Part No.: 37896S
Output: NO, PNP
Operating Voltage: 10 to 30 VDC
Current: 200 mA max
Rated Range: 3 mm
Output: Short-circuit resistant, non-polarized
Visualization: LED
Temperature: -25 to +85°C
Base: Polyamide, black
Lid: Polycarbonate, transparent
Gasket (housing): EPDM
Protection: IP67, IP65
Accuracy of the commutation: <0.5°
Connection: Cable gland M20x1.5
Connection: M12x1.5 cable gland
Technical Information
- High accuracy position feedback suitable for industrial automation
- Durable housing materials for harsh environments
- Integrated Pepperl + Fuchs inductive sensor for reliable detection
- LED visual indication for quick status monitoring
- Dual cable gland options for flexible installation
- Wide operating temperature range for versatile applications
- IP65 and IP67 protection for dust and water resistance
