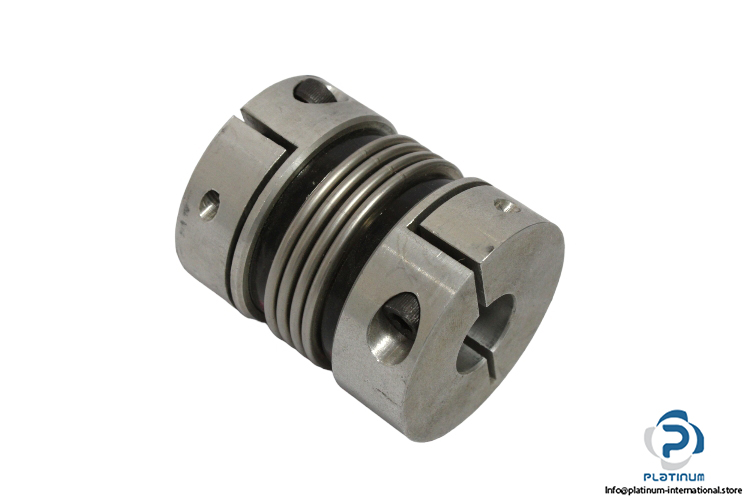

Name: R+W BKL/30/19/20 BELLOWS COUPLING
SKU: 1002399
Availability: LimitedAvailability

Manufacturer: R+W

Type: Bellows Coupling

Model: BKL/30/19/20

Art No.: N/A

MNR.: N/A

Size: 30

Material: Aluminum

Bore diameter d1/ d2: 19 mm/ 20 mm

Outer diameter: 56 mm

Total length: 68 mm

Torque: 30 Nm

Torsional stiffness: 31000 Nm/rad

Radial spring stiffness: 366 N/mm

Axial spring stiffness: 50 N/mm

Shaft Fastening Method: Clamping hubs

Specification	Value
Weight	0,3 kg
Condition	Used
Part No.	N/A
Shelf No.	230308
Size	30
Material	Aluminum
Bore Diameter d1/d2 [mm]	19 / 20
Outer Diameter [mm]	56
Torque [Nm]	30
Torsional Stiffness [Nm/rad]	31000
Radial Spring Stiffness [N/mm]	366
Axial Spring Stiffness [N/mm]	50
Shaft Fastening Method	Clamping Hubs

Price	On Request
Stock	Available on request
Category	Couplings
Condition	Used
SKU	1002399

Weight	0,3 kg
Condition	Used
Part No.	N/A
Shelf No.	230308
Size	30
Material	Aluminum
Bore Diameter d1/d2 [mm]	19 / 20
Outer Diameter [mm]	56
Torque [Nm]	30
Torsional Stiffness [Nm/rad]	31000
Radial Spring Stiffness [N/mm]	366
Axial Spring Stiffness [N/mm]	50
Shaft Fastening Method	Clamping Hubs

R+W BKL/30/19/20 Bellows Coupling
