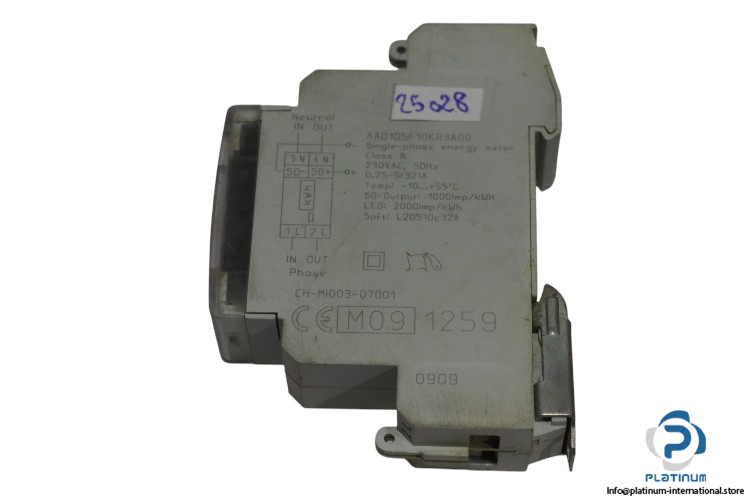

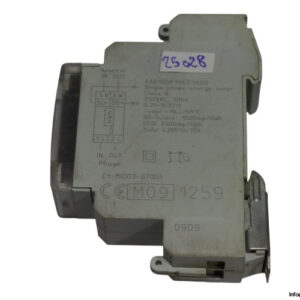

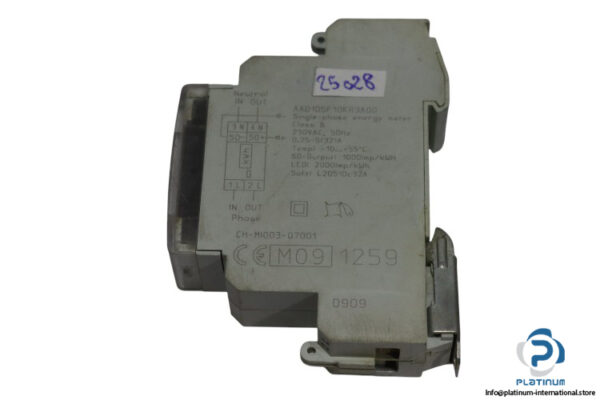

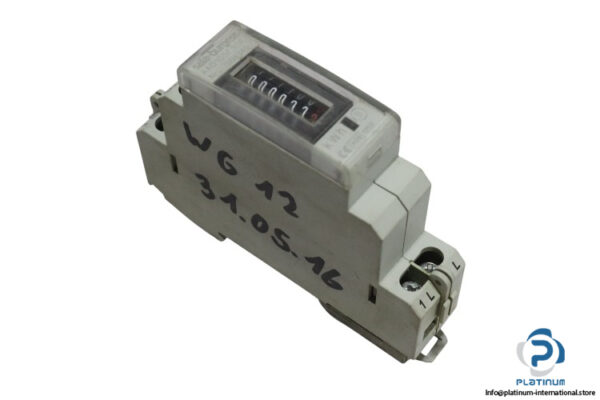

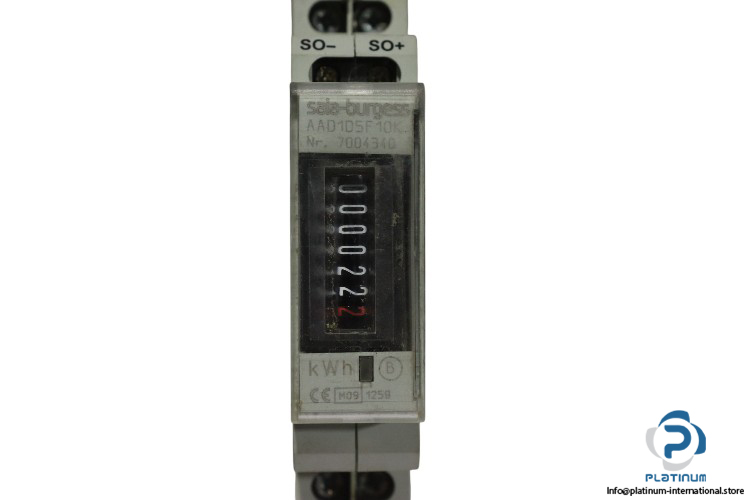

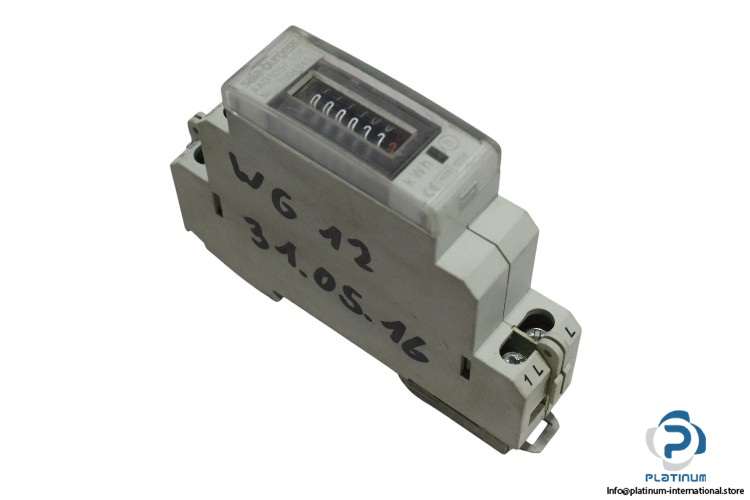

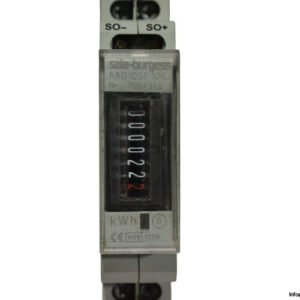

Saia Burgess AAD1D5F 10KR3A00 Energy Meter

Saia Burgess AAD1D5F 10KR3A00 Energy Meter

The Saia Burgess AAD1D5F 10KR3A00 is a precise and efficient energy meter engineered for monitoring electrical consumption in residential, commercial, or light industrial environments. Designed to operate on 230VAC at 50Hz, this meter supports a current range of 5(32)A and provides accurate output readings via a 1000 impulses/kWh signal. An LED indicator displays consumption at a rate of 2000 impulses/kWh, offering clear visual feedback. The device functions reliably in temperatures from -10°C to +55°C.

• Manufacturer: Saia Burgess
• Type: Energy Meter
• Model: AAD1D5F 10KR3A00

Technical Specifications:

• Voltage: 230 VAC, 50 Hz
• Current Rating: 5(32) A
• Output: 1000 imp/kWh
• LED Indicator: 2000 imp/kWh
• Operating Temperature: -10°C to +55°C

Applications:

• Residential energy monitoring
• Commercial building metering
• Energy management systems
• Sub-metering in multi-tenant facilities
