Saiet FM.C.3 Magnetic Sensor
New
In stock1 unitReady to ship
Magnetic Sensor
Carlo Gavazzi SAIET FM C 3 magnetic sensor with cylindrical 9.3 mm housing, NC reed contact output, and IP67 protection. Designed for reliable position detection in industrial automation and pneumatic systems.3AutomationCCarloContactCylinderCylindricalFMGavazziIndustrialIP67MagneticNCPneumaticReedSensorSeries
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

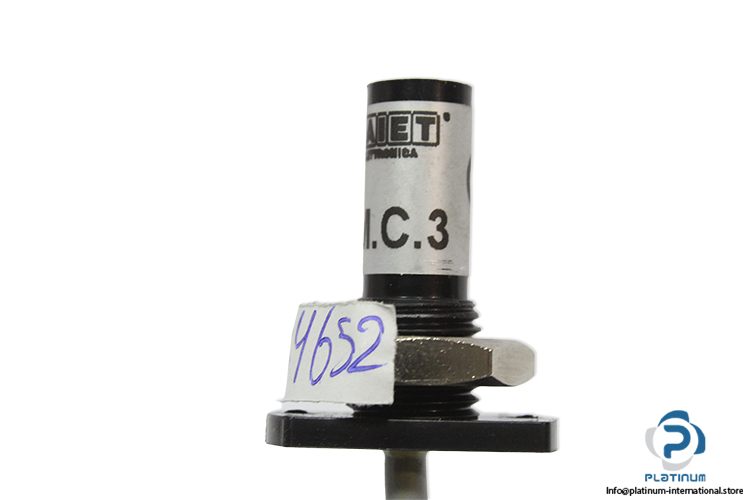

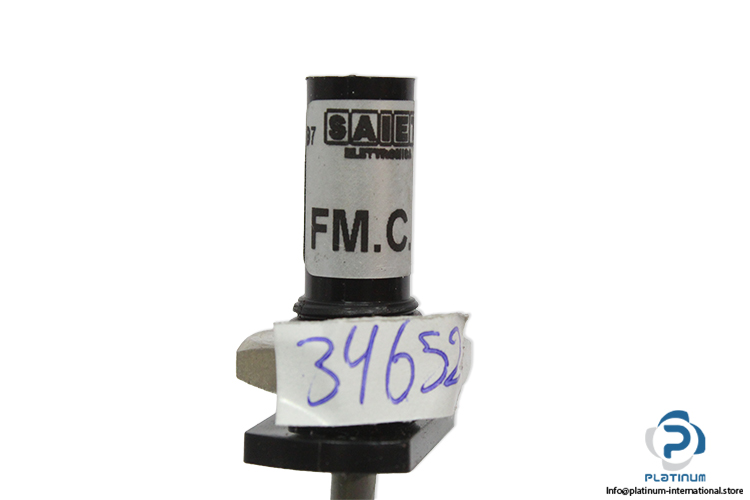

Carlo Gavazzi SAIET FM C 3 Magnetic Sensor
The Carlo Gavazzi SAIET FM C 3 magnetic sensor from the FM Series is designed for reliable position detection in industrial automation systems. Featuring a reed contact switching mechanism and a compact cylindrical housing, this sensor provides dependable sensing performance for machinery, pneumatic cylinders, and automation equipment.
Manufacturer: Carlo Gavazzi SAIET
Type: Magnetic Sensor
Model: FM C 3
Series: FM Series
| Output Function | C |
| Reed Contact Type | 3 |
| Housing Type | Cylindrical, 9.3 mm diameter |
| Output Configuration | NC (Normally Closed) |

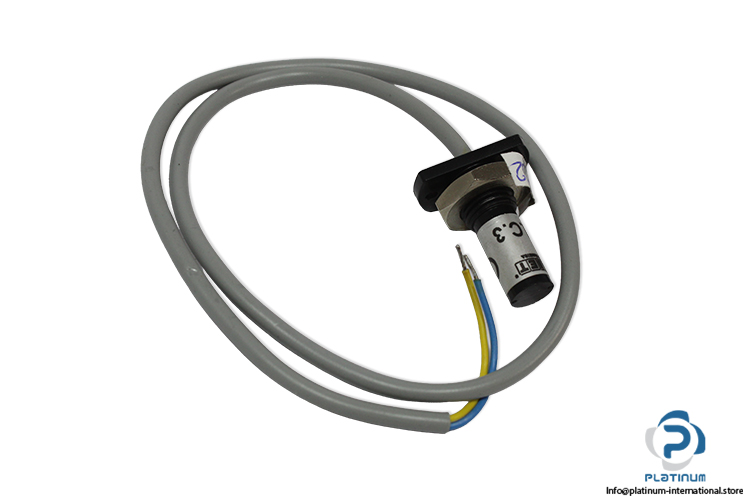

| Connection | PVC Cable (Typically 2 Meters Length) |
| Max Switching Voltage | 500 VAC |
| Max Switching Current | 0.5 A |
| Max Switching Power | 5 VA |
| Ambient Temperature Operating | -25 To +70 °C |
| Environment Degree Of Protection | IP67 |
| Material | Plastic |
