Samson 3244 DN50 PN16 Pneumatic Control Valve
Pneumatic Control Valve

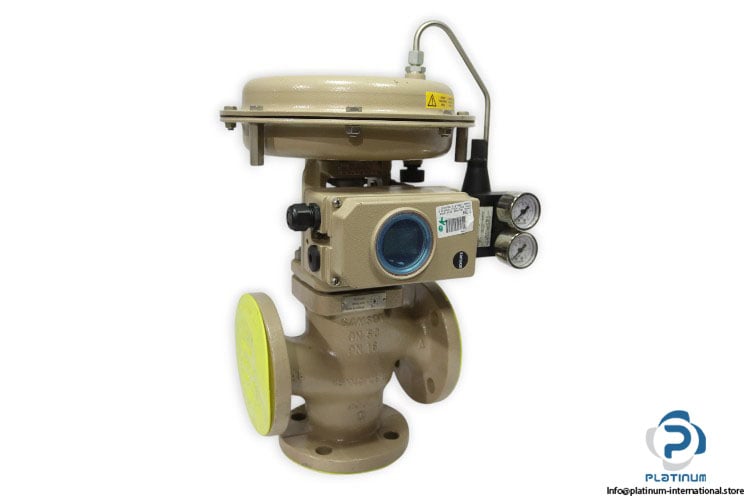

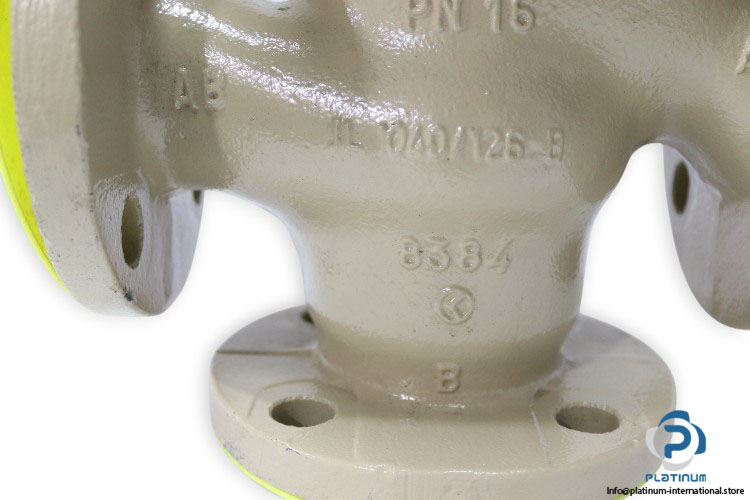

Samson 3244DN50PN16 Pneumatic Control Valve with Intelligent Positioner and HART® capability. Designed for accurate flow control and reliable automation performance in industrial, chemical, and energy systems.Samson 3244DN50PN16 Pneumatic Control Valve with Intelligent Positioner
The Samson 3244DN50PN16 Pneumatic Control Valve with Intelligent Positioner is a high-precision control solution engineered for demanding industrial environments. Designed to deliver accurate flow control, reliable performance, and seamless integration in automated process systems, this valve ensures exceptional regulation of pressure, flow, and temperature. With its robust cast-iron body and advanced positioner technology, it provides superior control stability and long service life.
Manufacturer: Samson
Type: Pneumatic Control Valve with Intelligent Positioner
Model: 3244DN50PN16
Code: 3-191244901AA
Positioner: 3730-3 HART® capable
Actuator Details
Positioner Details
Applications
Process automation and plant control
Steam and condensate control systems
Heating and cooling networks
Chemical and petrochemical industries
Water and energy management systems
This Samson 3244DN50PN16 valve provides efficient, stable, and intelligent flow control across a wide range of process conditions. Its advanced diagnostics and communication features reduce maintenance downtime, while the rugged actuator and positioner guarantee accurate response and durability. Ideal for industries seeking precision, safety, and automation reliability.

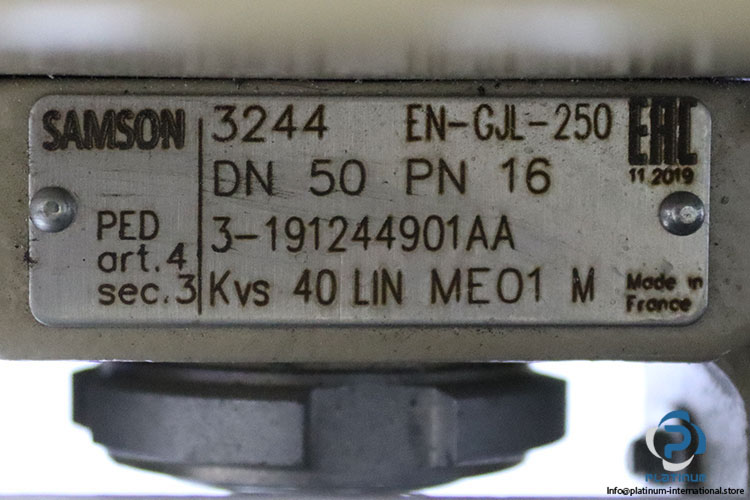

| Nominal Diameter | 50 mm (DN 50) |
| Pressure Rating | 16 bar (PN 16) |
| Kvs Value | 40 |
| Flow Characteristic | Linear (LIN) |

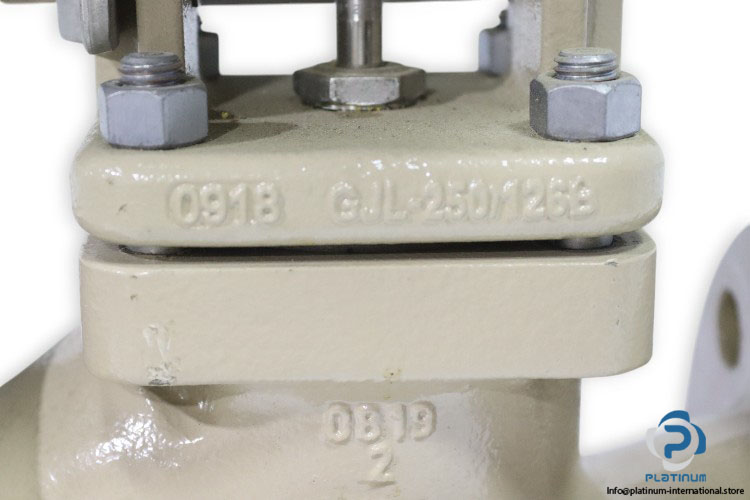

| Body Material | Cast Iron (EN-GJL-250) |
| End Connections | Flanged (PN16) |

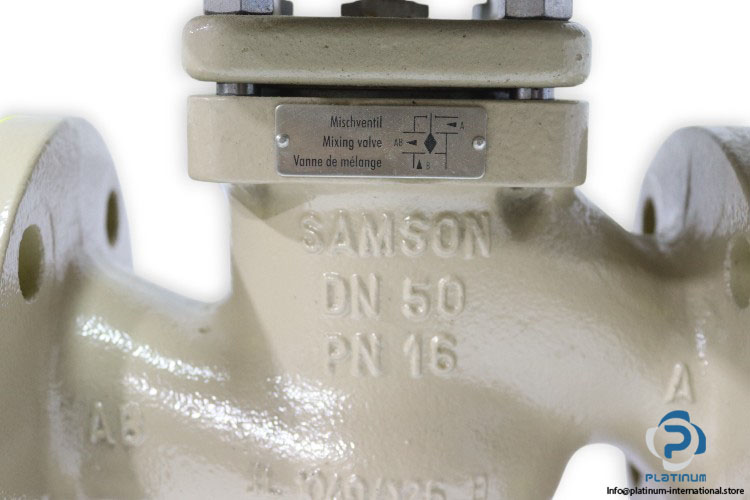

| Valve Function | Mixing Valve (AB to A/B ports) |
| PED Compliance | Article 4, Section 3 |
| Marking | CE and EAC Certified |

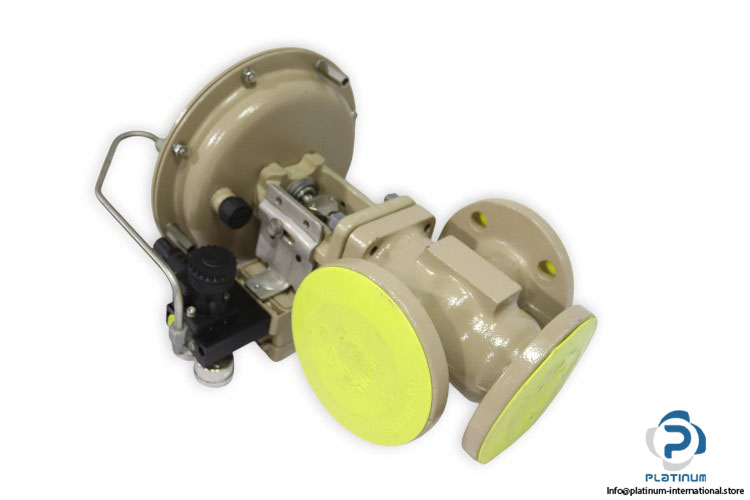

| Actuator Type | Pneumatic Diaphragm Actuator |

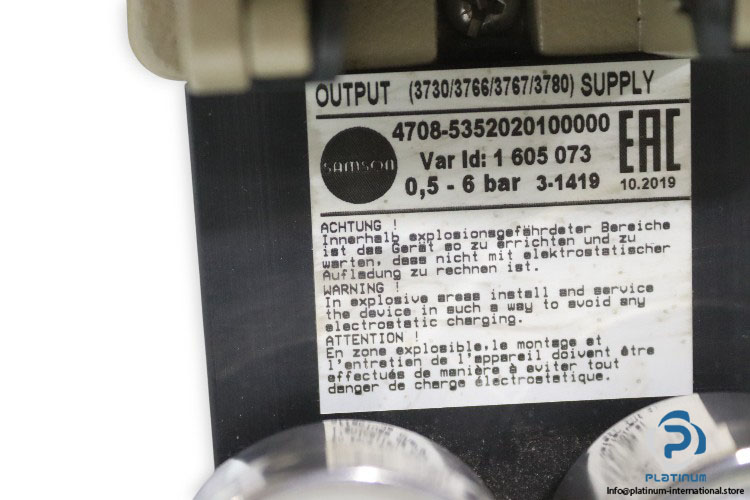

| Actuator Model | 4708-5352020100000 |
| Actuator ID.No. | 1 605 073 |
| Code | 3-1419 |
| Supply Pressure | 0.5 to 6 bar |
| Explosion Protection | EAC Certified (10.2019) |

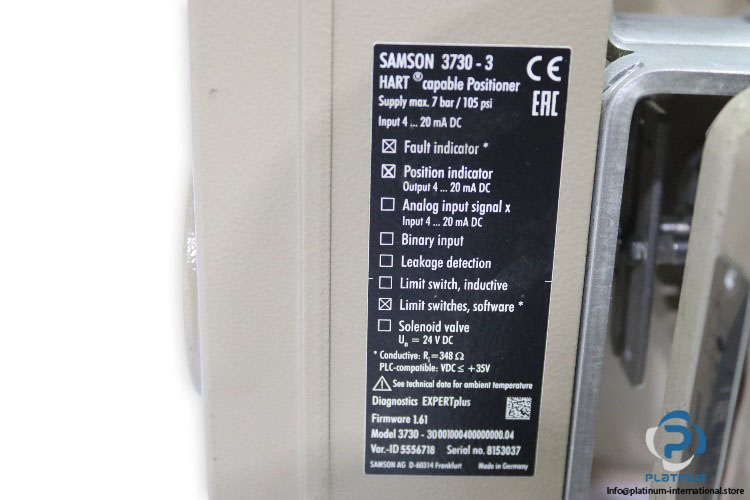

| Actuator Type | HART capable Positioner |
| Positioner Model | 3730-30001000400000000.04 |
| Serial No. | 8153037 |
| Part No. | 5556718 |
| Supply Pressure | Max. 7 bar / 105 psi |
| Output Signal | 4 to 20 mA DC feedback |
| Solenoid Valve | 24 V DC |

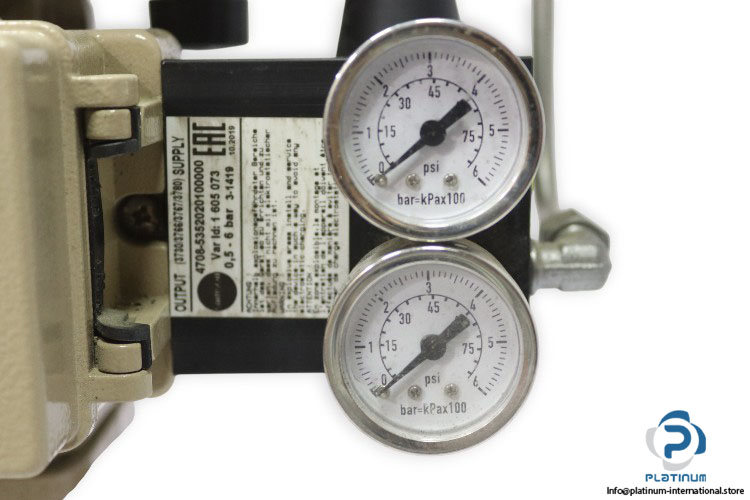

| Pressure Gauges | Dual for input/output monitoring |
| Input Signal | 4 to 20 mA DC (HART® Communication) |
| Diagnostic System | EXPERT plus (Firmware 1.61) |
| Features | Fault indication, leakage detection, inductive limit switches |
| Protection Class | IP66 / NEMA 4X |
