Samson 44-5 Pressure Reducing Valve
New
In stock1 unitReady to ship
388,88$
Pressure Reducing Valve
SAMSON 44-5 pressure reducing valve DN25, PN25, with Kvs 5.0 and high-temperature design featuring an intermediate valve-actuator extension piece.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

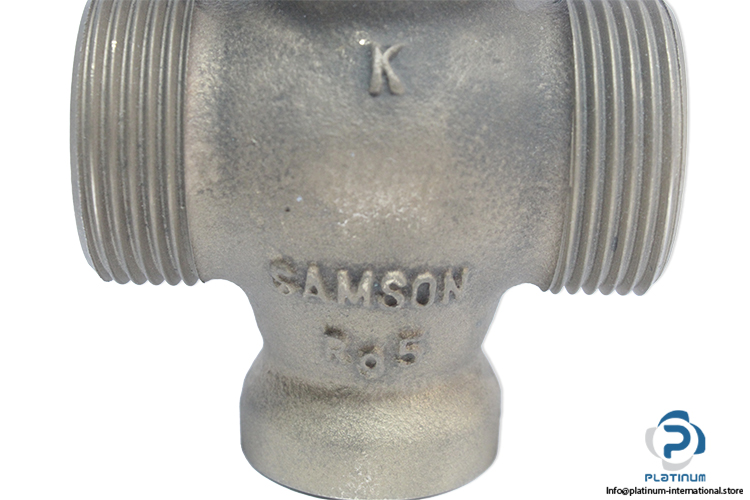

SAMSON 44-5 Pressure Reducing Valve
The SAMSON 44-5 is a pressure reducing valve engineered for precise pressure control in industrial piping systems. It is designed for higher temperature applications and incorporates an intermediate valve-actuator extension piece to ensure reliable operation and long service life under demanding conditions.
Manufacturer: SAMSON
Type: Pressure Reducing Valve
Model: 44-5

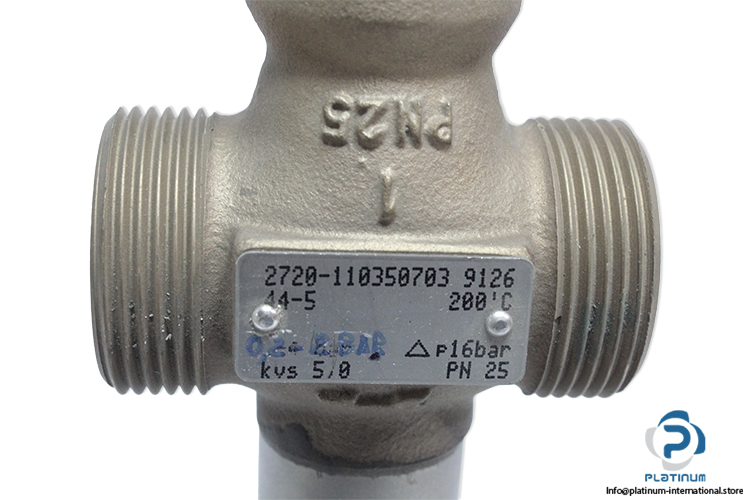

Part Number: 2720-110350703 9126

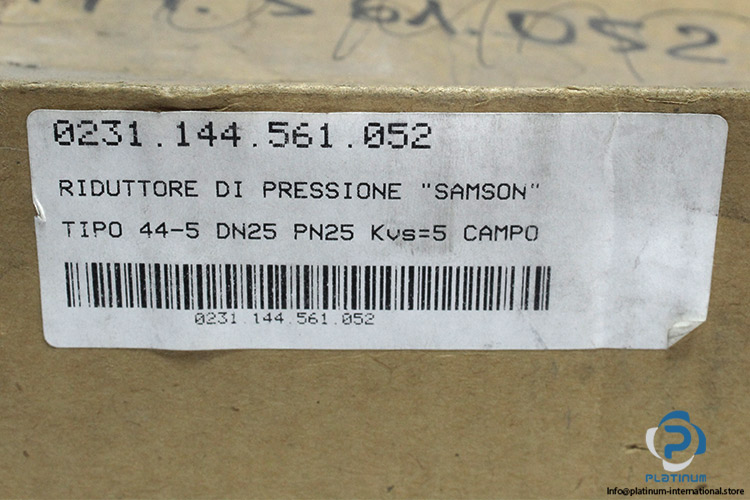

Code: 0231.144.561.052
This valve is designed for higher temperatures and therefore contains an intermediate valve-actuator extension piece.
| Nominal Size | DN25 |
| Pressure Rating | PN25 |
| Flow Coefficient (Kvs) | 5.0 |
| Maximum Temperature | 200°C |
| Differential Pressure | 16 bar |
| Port Size | 1-1/4 in |
| Pipe Diameter | 33.7 mm |
| Width Across Flats | 46 mm |
| Length (L) | 75 mm |
| Length with Welding Ends | 244 mm |
