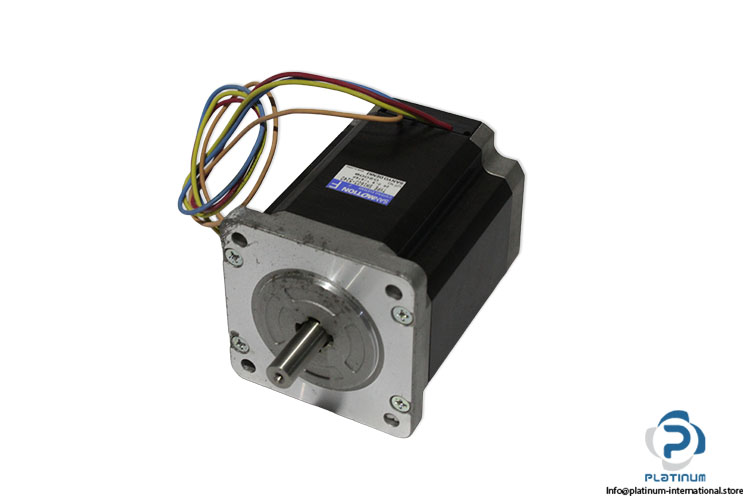

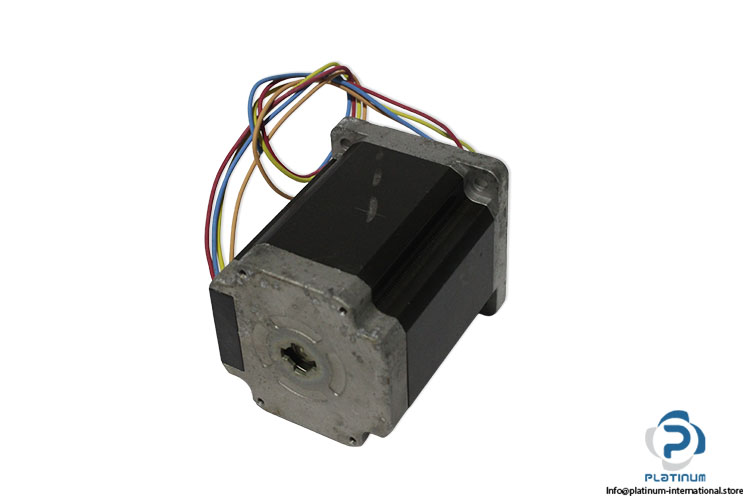

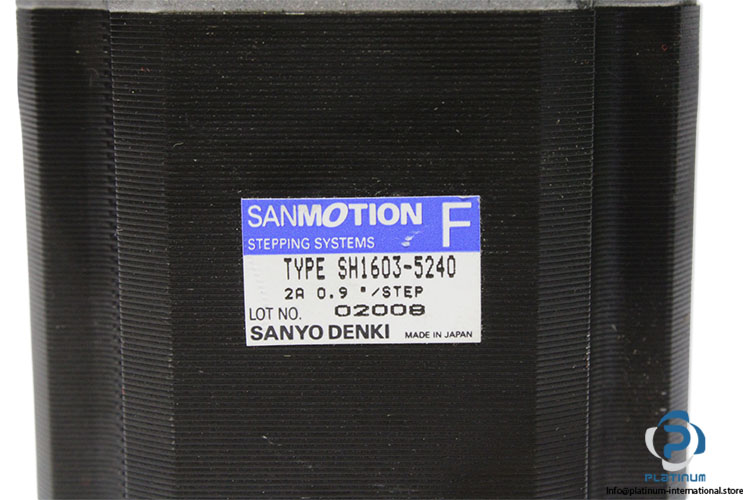

Sanyo Denki SH1603-5240 Stepper Motor
New
In stock1 unitReady to ship
2-Phase Stepper Motor SANYO DENKI SANMOTION F2 2-phase stepper motor featuring a 0.9° step angle, 2.15 N·m holding torque, bipolar wiring, and a compact 60 mm flange for precision industrial motion control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ref No | 02008 |
| Series | SANMOTION F2 |
| Basic step angle [ º ] | 0.9 |
| Motor flange size[mm] | 60 |
| Motor length [mm] | 76 |
| Single/Dual shaft | Single shaft |
| Output shaft | Circular |
| Holding torque [N·m] | 2.15 |
| Rotor inertia [×10-4kg·m2] | 0.75 |
| Rated current [A/phase] | 2 |
| Wiring | Bipolar |

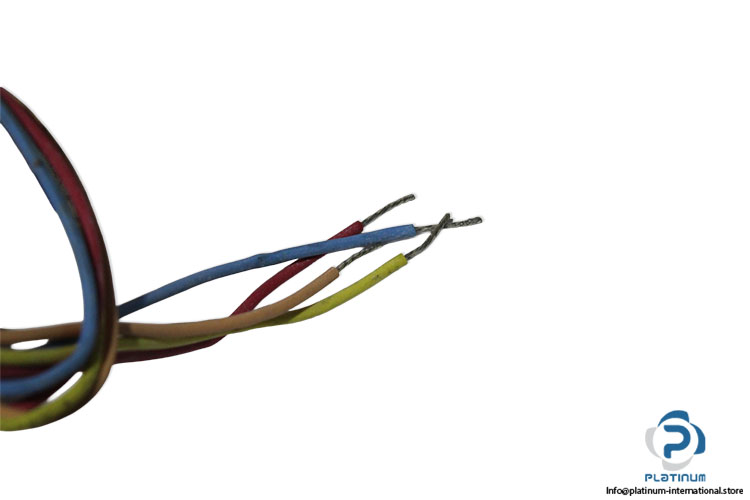

| Connection type | Lead wire type |
| Allowable thrust load [N] | 15 |
| Allowable radial load [N] | 83 |
| Operating temperature range | -10 to +50? |
| Operating humidity range | 20 to 90% RH (non-condensing) |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100361 |
| Weight | 1,18 |
