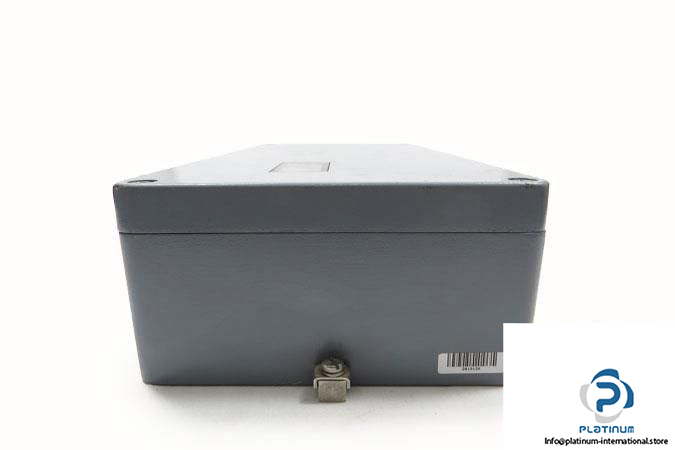

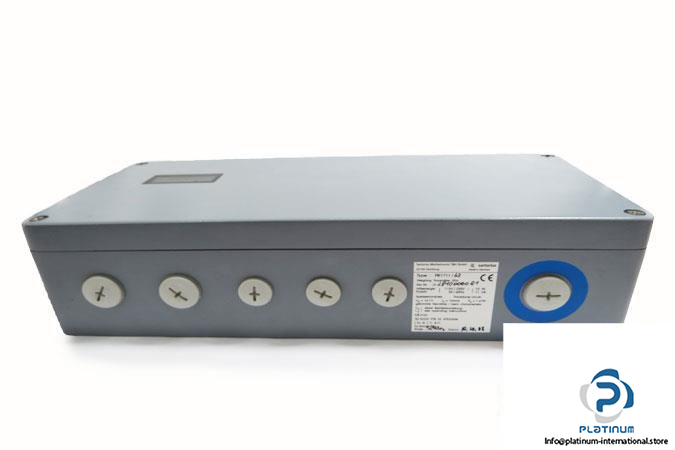

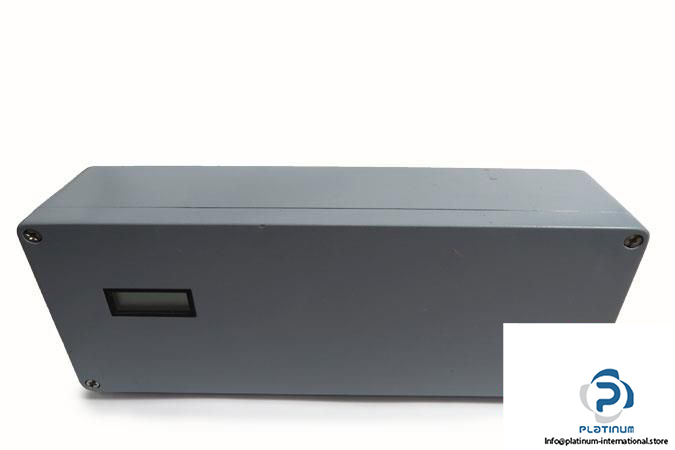

Sartorius PR1711/62 Digital Weighing Transmitter

Manufacturer: SARTORIUS

Type: INSTRINSICALLY SAFE DIGITAL WEIGHING TRANSMITTER

Model: PR 1711/62

MRN: 940511711621

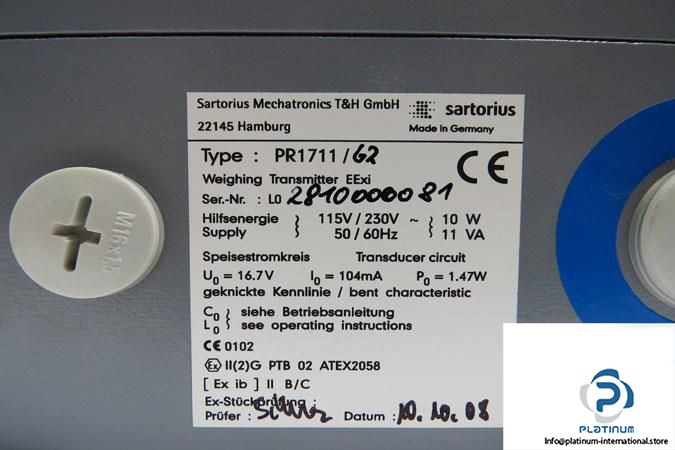

TRANSDUCER CIRCUIT:

Voltage: 16.7 V

Current: 104 mA

Power: 1.47 W

Supply Voltage: 115/230 VAC

Power Consumption: 11 VA

Connection: Via 6 Cable Glands

Operation Temperature: -10 … +55° C

Linearity: < 0.007 %
Service Interface: 9-Pole D-SUB Connector RS 232, 9.6 kB for PC or Terminal

Functions: Calibration, Configuration and Monitoring

Max. Baudrate: 19.2 kB

Conversion Rate: 50 ms

Measuring Time: 50 ms; 100 ms or Multiples

Load Impedance: Min. 87.5 ‎Ω

Load Cell Connection: 6 or 4 Wire Connection Possible

Load Cell Supply: 12 V or 7 VDC, Selectable

Protection Class: IP 65

Weight: 4.22 Kg
