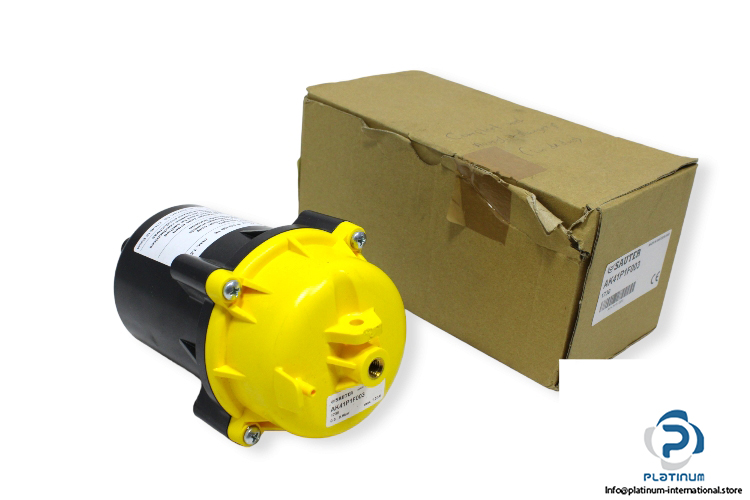

Sauter AK41P1F003 Pneumatic Actuator

Manufacturer: SAUTER

Type: Pneumatic Actuator

Model: AK41P1F003

Art No.: N/A

MNR: N/A

Features:

• ATEX-certified for use in areas of zone 1 where there is a risk of explosions
• Compliant with EN 13463-1 and EN 1127-1 (Ex II 2 G T6) with actuators of the AK 41 P and AK 42

  P series
• Rolling diaphragms made of silicone; drive spindle in stainless steel with M8 male thread
• Plug nipple for connecting plastic tubing with an internal diameter of 4 mm (AK41)
• Compressed-air connection with Rp ⅛” female thread (AK42, 43)

Control pressure: 0 – 1.2 bar

Housing material: Fire-retardant thermoplastic

Working pressure range: 0.3 – 0.9 bar

Pushing force: 100 N
