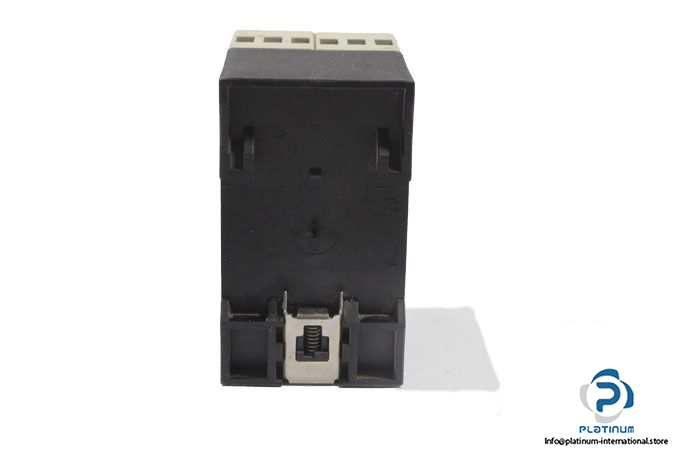

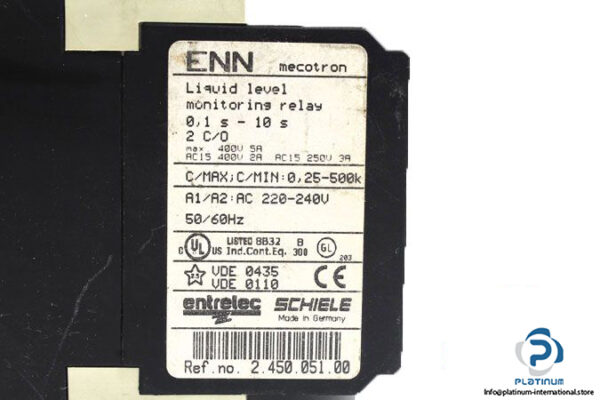

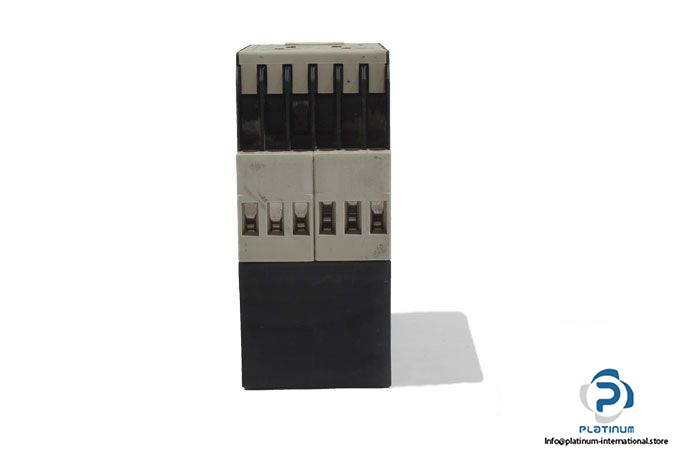

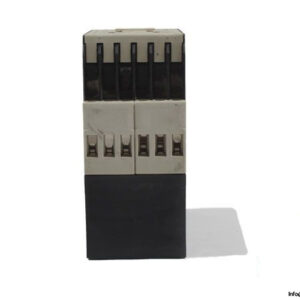

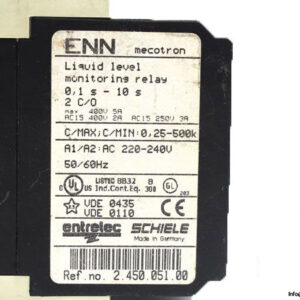

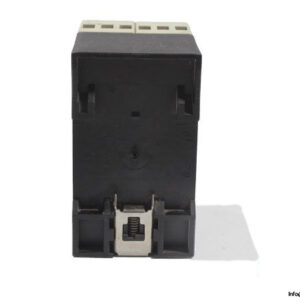

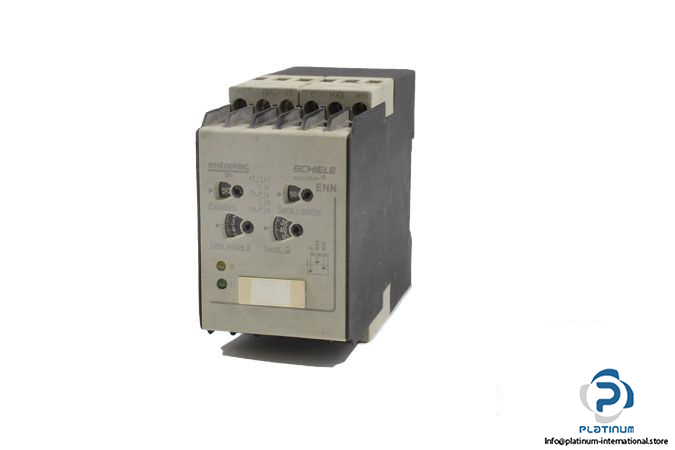

Schiele ENN Liquid Level Monitoring Relay

Manufacturer: SCHIELE

Type: Liquid Level Monitoring Relay

Model: ENN

Supply Voltage: 220. .. 240 VAC

Power Consumption: 3 VA

Electrode Voltage max.: 20 VAC

Rated Operating Current: 3 A (230 V)

Response Sensitivity: 250 Ω … 500 kΩ

Rated Impulse Withstand Vimp: 4 kV

Operating Temperature: -25 … +65 °C

Frequency: 50/60 Hz

Mounting to DIN Rail: snap-on mounting/screw mounting by adapter

Cable Size Stranded with Wire End Ferrule: 2 X 2.5 mm²

Delay on Operate or on Release Time: selectable 0.1 … 10 s

Dimensions: 45 X 78 X 101 mm

Weight: 0.3 Kg
