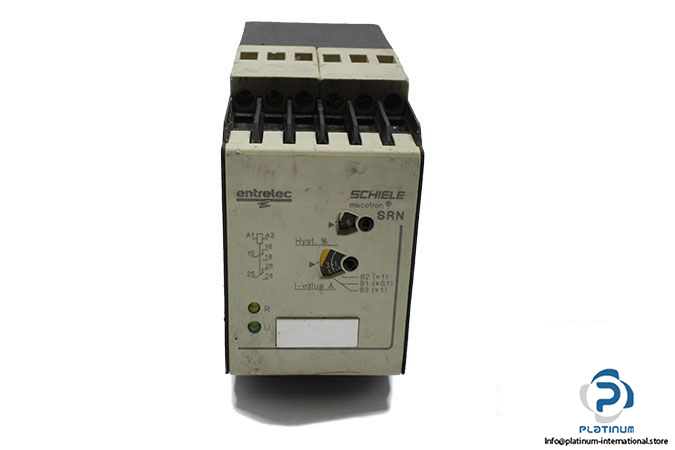

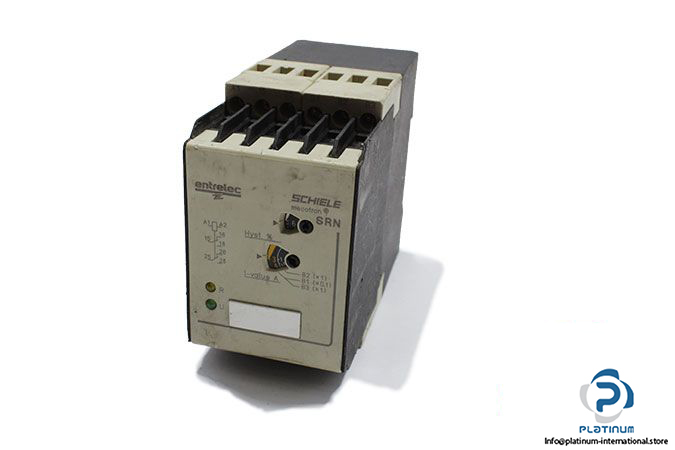

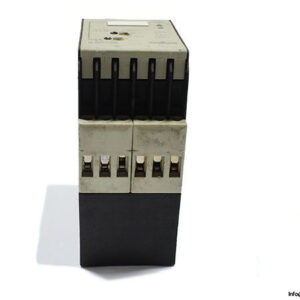

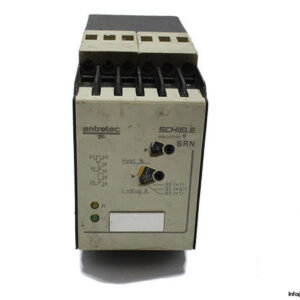

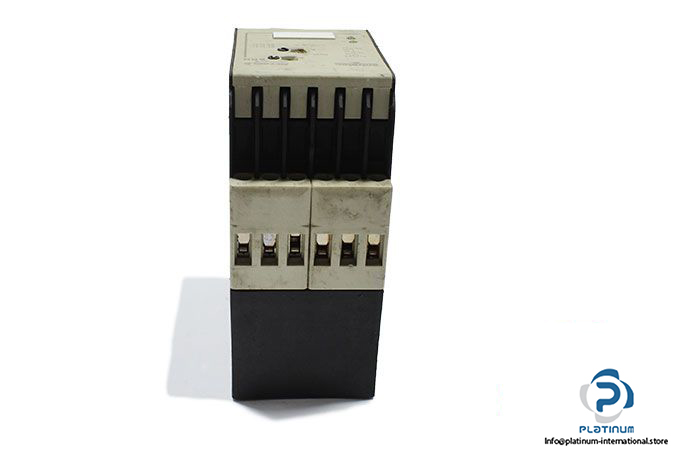

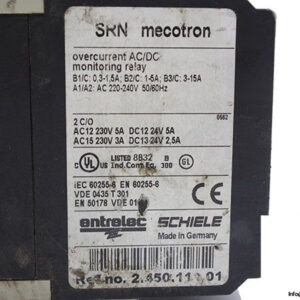

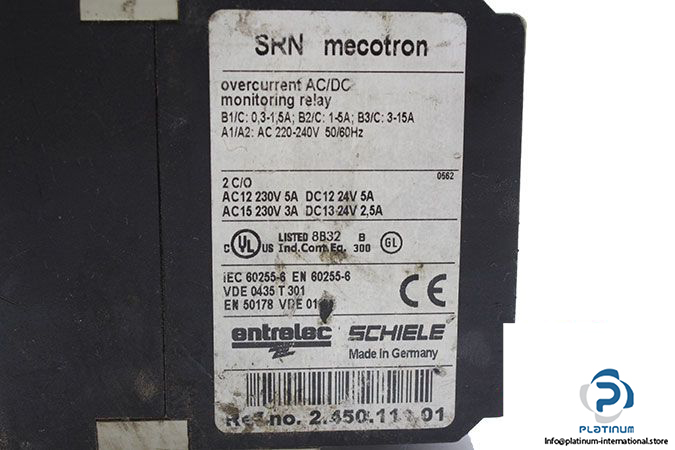

Schiele SRN 2 450 111 01 Current Monitoring Relay

Manufacturer: SCHIELE

Type: Current Monitoring Relay

Model: SRN 2 450 111 01

Supply Voltage: 220 … 240 VAC

Frequency: 50/60 Hz

Power Consumption: 2 VA

Delay on Operate Time Adjustable: 0.05 … 1 s and 1.5 … 30 s

Measuring Cycle: max. 80 ms

Rated Switching Voltage: max. 400 VAC

Rated Switching Current AC / DC 12 (Resistive): 5 A (at 230 V) / 5 A (at 24 V)

Rated Switching Current AC 15/ DC 13 (Inductive): 3 A (at 230 V) / 2.5 A (at 24 V)

Operating Temperature: -25 … +60°C

Dimensions: 45 X 100.5 X 78 mm

Weight: 0.3 Kg
