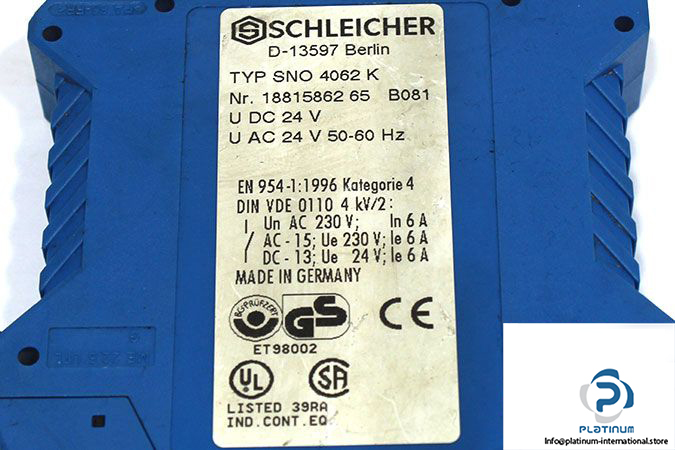

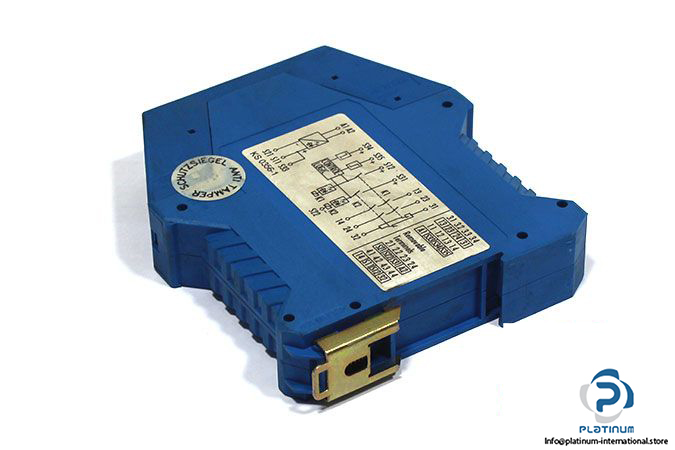

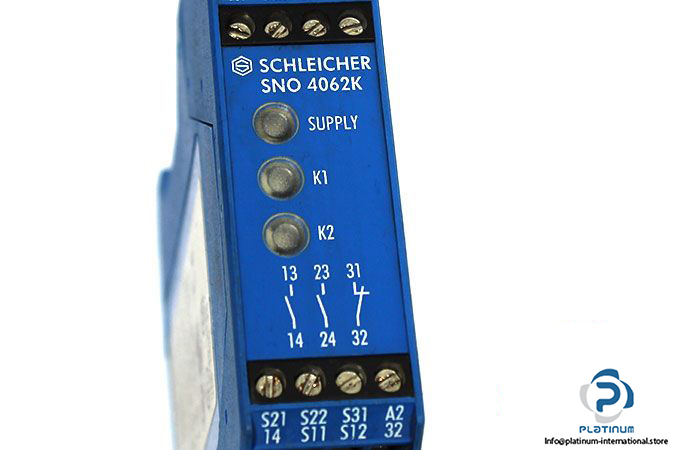

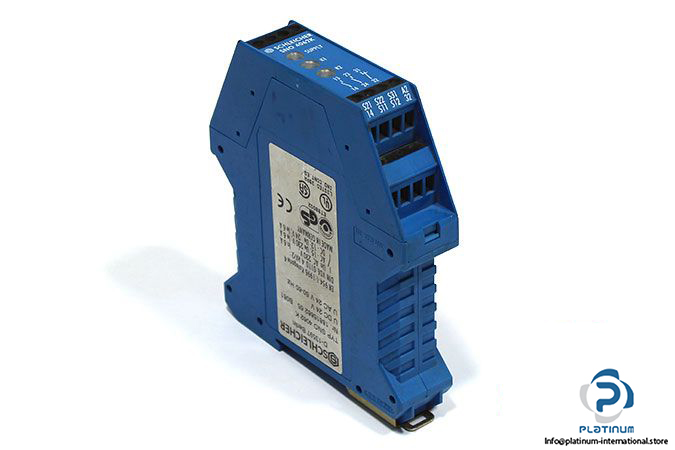

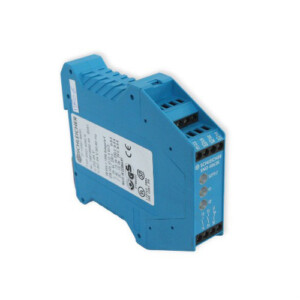

Schleicher SNO 4062K Monitoring OF Emergency Stop

Manufacturer: Schleicher

Type: Monitoring of Emergency Stop

Model: SNO 4062 K

Part No: R1.188.0700.2

Applications

• Protection of People and Machinery
• Monitoring of Emergency Stop Applications
• Monitoring of Safety Gates
• Monitoring of Light Barriers
• Up To PL E/Category 4 (EN ISO 13849-1)
• Up To SILCL 3 (EN 62061)

Rated Voltage: 24 V AC/DC

Rated Consumption: 2.0 W / 2.1 W

Frequency: 50/60 Hz

Rated Output Voltage: 22 V DC

Rated Switching Voltage: 230 V AC

Minimum ON Time: 50 ms

Recovery Time: 150 ms

Function Display: 3 LEDs, Green

Protection Class: IP40/IP20

Ambient Temperature: -25…55 °C

Dimensions: 110 X 99 X 22 mm

Weight: 0.2 kg
