Schleicher SNV 2020-17(A) Emergency Stop Relay
Used
Available on request
100,00$
Manufacturer:
Schleicher
Type:
Emergency Stop Relay
Model:
SNV2020-17(A)
Part No.:
18813084 027
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

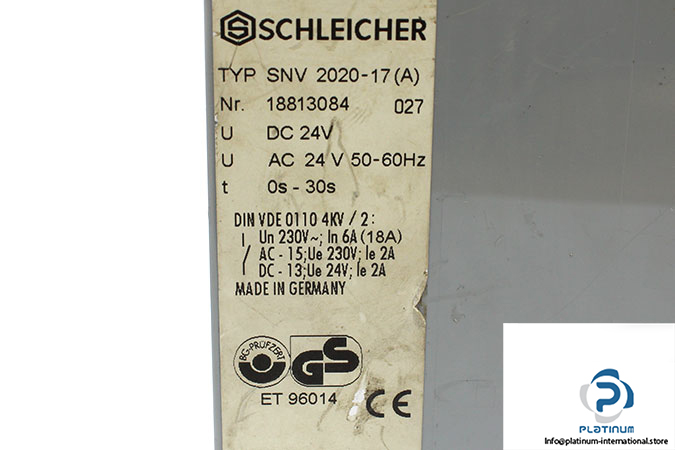

Manufacturer: Schleicher
Type: Emergency Stop Relay
Model: SNV2020-17(A)
Part No.: 18813084 027
Rated Voltage Ue: 24 V AC/DC
Nominal Voltage Un: 230 V AC
Nominal current In: 6 A (18 A)
Frequency: 50 … 60 Hz
Response Time: 0 … 30 s
Rated Impulse Withstand Voltage Uimp: 4 kV
Test Voltage Ueff: 2,21 kV
Switching Voltage:
AC-15: 230 V, 2 A
DC-13: 24 V, 2 A

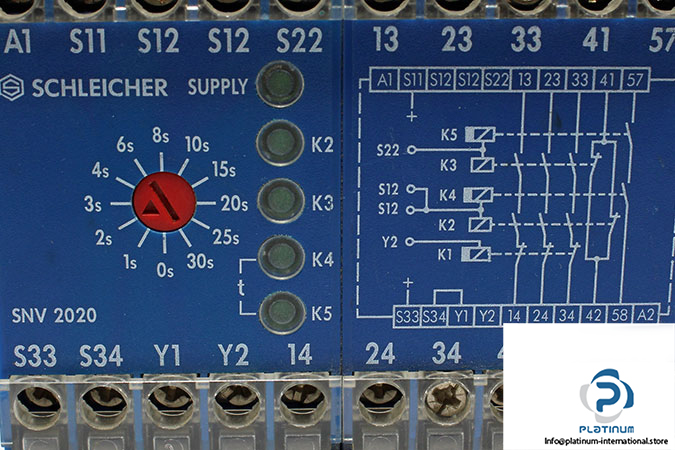

Contacts: 3 NO Safety Contact Stop, 1 NO Safety Contact Off – Delayed Stop, 1 NC Control Contact Forced Contact
Standard: VDE 110
Protection Degree Housing/Terminals: IP 40/IP 20
Ambient Temperature: -25 … + 55 °C
Dimensions: 90 x 110 x 75 mm
