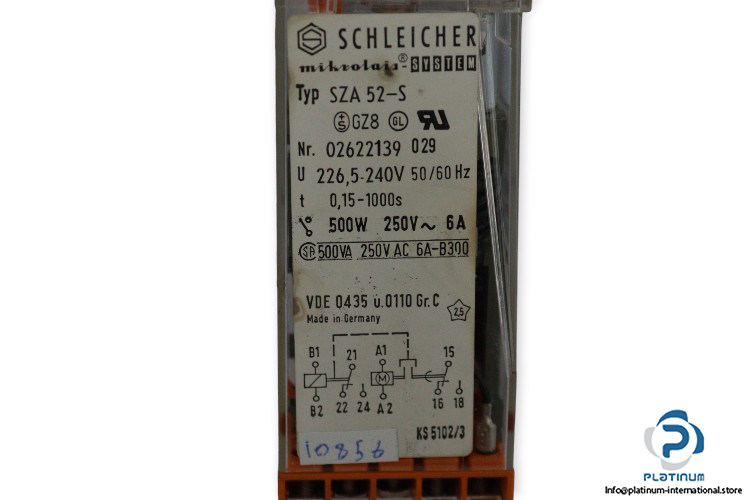

Schleicher SZA 52-S Timer Relay

Manufacture: Schleicher
Type: Timer Relay
Model: SZA 52-S
Part No.: 02622139 029

Rated operating voltage Un: 230 V (226.5 … 240 V AC)
Max. continuous current In: 5 A
Rated impulse voltage: 4 kV
Frequency: 50/60 Hz
Time: 0.15 …. 1000 s
Contact assignment: 1 timed and 1 instantaneous change-over contact
Contact rating: 500 W,250 V AC,6A
Function type: Electromechanical timer relay for single voltage
Degree of pollution: 3 outside 2 inside
Protection degree housing/terminals: IP30/IP20
Ambient temperature, operating range: -10 … +55 °C
Dimensions: 126 x 75 x 45 mm
