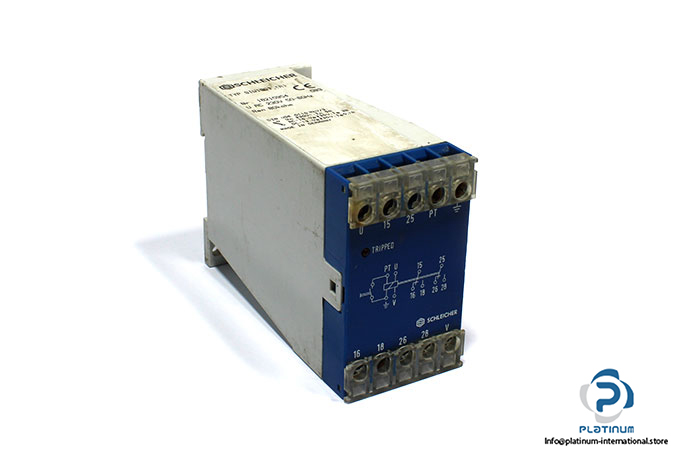

Schleicher SIW1001 (A) Line Monitoring Relay
Used
In stock1 unitReady to ship
Manufacturer:
Schleicher
Type:
Line Monitoring Relay
Model:
SIW1001(A)
Part No.:
18210954 083
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schleicher
Type: Line Monitoring Relay
Model: SIW1001(A)
Part No.: 18210954 083
Rated Voltage: 230 V AC
Frequency: 50 … 60 Hz
Resistance: 80 kohm
Rated withstand Voltage: 4 kV/3
Nominal voltage Un: 230 V AC
Nominal current In: 5 A
Switching voltage:
AC-15: 230 V AC, 3 A
DC-13: 230 V DC, 0.1 A
Contacts: 2 Changeover contact (CO)
Dimensions: 45 x 75 x 110 mm
