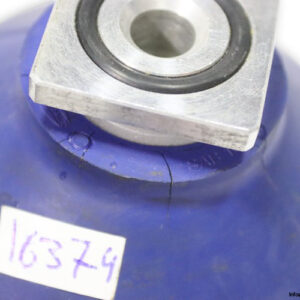

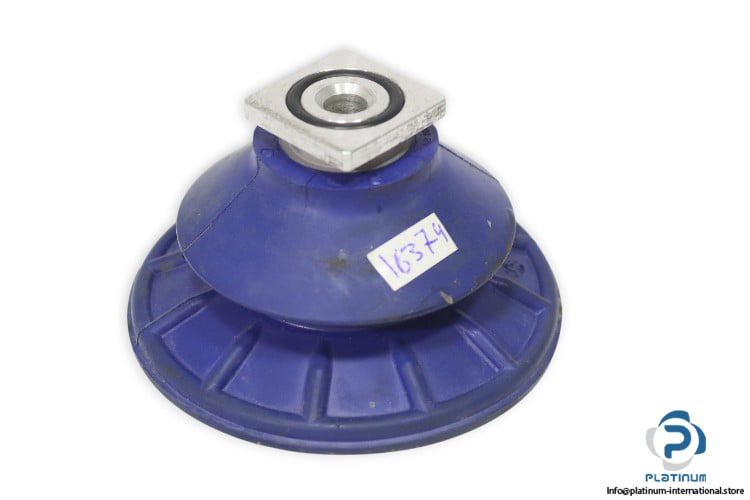

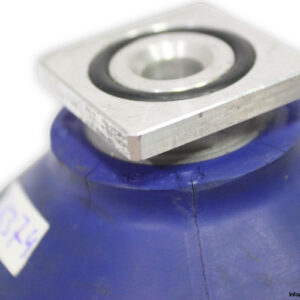

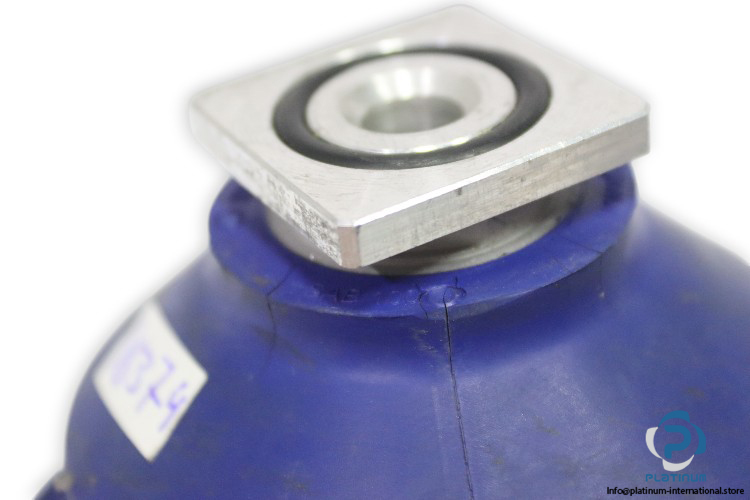

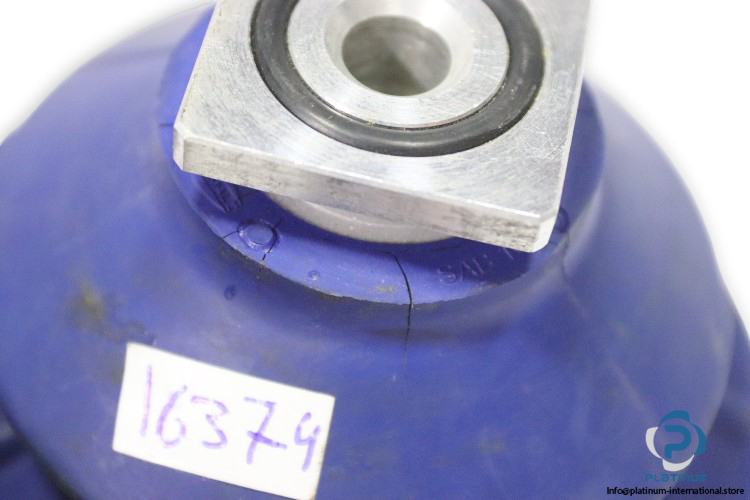

Schmalz SAB 100 Bellows Suction CUP

In stock1 unitReady to ship

Bellows Suction Cup

The SCHMALZ SAB 100 is a flexible 1.5-fold bellows suction cup with M10 connection and 60 Shore A hardness, offering up to 190 N suction force for efficient vacuum handling of curved or smooth workpieces.

Manufacturer
SCHMALZ
SKU
1083830
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

SCHMALZ SAB 100 Bellows Suction Cup

The SCHMALZ SAB 100 Bellows Suction Cup is engineered for reliable handling of smooth or slightly curved surfaces. Its flexible 1.5-fold bellows design ensures strong gripping power, excellent adaptability, and secure lifting in automated vacuum systems.

Manufacturer: SCHMALZ

Type: Bellows Suction Cup

Model: SAB 100

Family: SAB

Size: 100

ConnectionM10
Material Hardness [Shore A]60 (Shore A)
No. of Folds1.5
Suction Force (-600 mbar)190 N
Pull-off Force357 N
Lateral Force295 N
Lateral Force (Oily Surface)214 N
Volume115 cm³
Workpiece Radius Min. (Convex)90 mm
Hose Inner Diameter (Recom.) d6 mm
