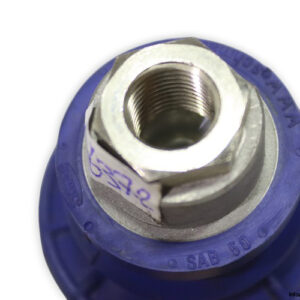

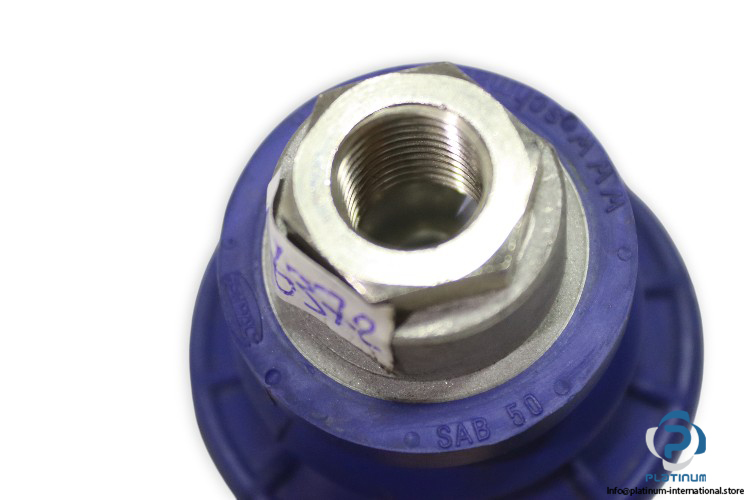

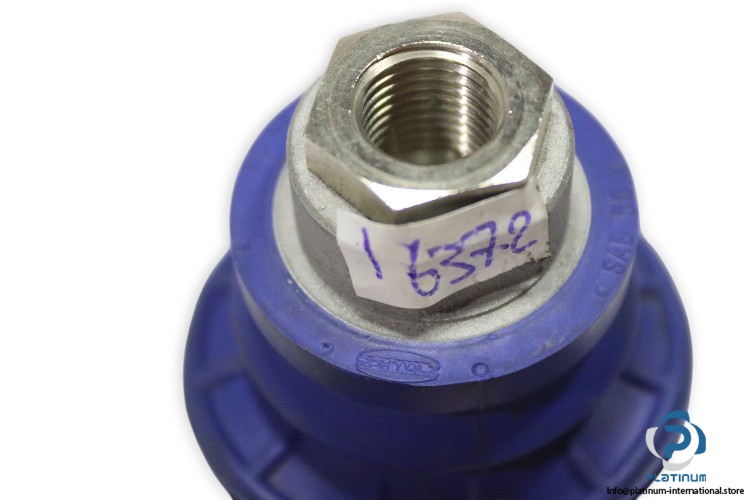

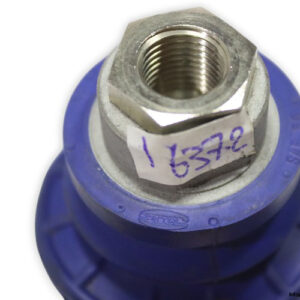

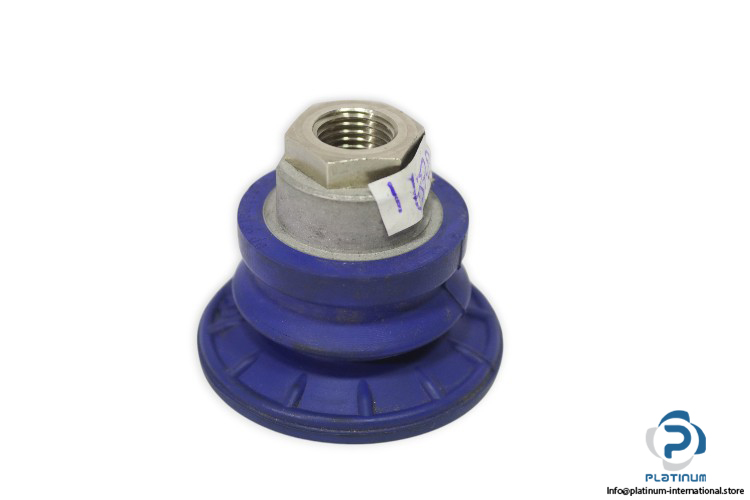

Schmalz SAB 50 Bellows Suction CUP

In stock1 unitReady to ship

Bellows Suction Cup

The SCHMALZ SAB 50 is a 1.5-fold bellows suction cup with G1/4 connection, 53 N suction force, and 60 Shore A hardness, ideal for reliable vacuum handling of curved workpieces.

Manufacturer
SCHMALZ
SKU
1083828
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

SCHMALZ SAB 50 Bellows Suction Cup

The SCHMALZ SAB 50 Bellows Suction Cup is engineered for reliable and flexible handling of smooth or slightly curved surfaces. Its single-fold design and durable elastomer material provide excellent holding force and stability for automated vacuum lifting applications.

Manufacturer: SCHMALZ

Type: Bellows Suction Cup

Model: SAB 50

Family: SAB

Size: 50

Suction Cup MaterialG1/4"-F
ConnectionG1/4-IG
No of Folds1.5
Material Hardness [Shore A]60 (Shore A)
Suction Force (-600 mbar)53 N
Pull-off Force87 N
Lateral Force95 N
Lateral Force (Oily Surface)52 N
Volume16.1 cm³
Workpiece Radius Min. (Convex)50 mm
Hose Inner Diameter (Recommended) d4 mm
