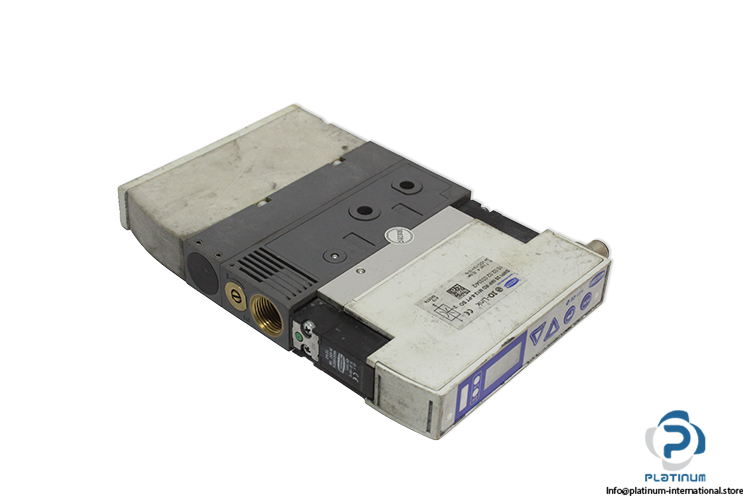

SCHMALZ SMPI 25 IMP RD M12-8-PT SO Compact Ejector
The SCHMALZ SMPI 25 IMP RD M12-8-PT SO is a compact ejector from the SMPI family, designed for efficient vacuum generation with integrated digital control. Featuring IO-Link technology and a bistable control valve, it delivers precise vacuum control, high suction performance, and reliable operation in automated industrial environments.
Manufacturer: SCHMALZ
Type: Compact Ejector
Model: SMPI 25 IMP RD M12-8-PT SO
Part No.: 10.02.02.03334/2
Code: A12 / 645574
Family: SMPI
| Technology | IO-Link |
| Operating Pressure Range | 4 / 7 bar (Optimal 4 / 5 bar) |
| Power Supply | 24 VDC |
| Nozzle Diameter | 2.5 mm |
| Fluid | Air |
| Control Valve | Bistable, Switched With Pulse |
| Design | Digital Vacuum Switch With Integrated Control Function |

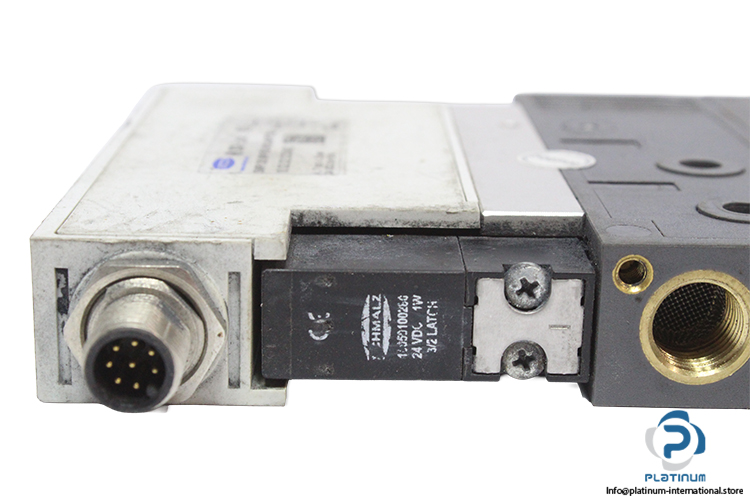

| Electrical Connection | M12-8 |
| Potential Separation | With Potential Separation |
| Max. Suction Rate | 185 l/min |
| Air Consumption | 290 l/min |
| Sound Level | 77 dBA |
| Port Size | G1/4, G3/8 |
| Working Temperature | 0 to 50 °C |
| Vacuum Switch Parameters Limit Value H1 | 750 mbar |
| Hysteresis Value h1 | 750 mbar |
| Limit Value H2 | 550 mbar |
| Hysteresis Value h2 | 10 mbar |
