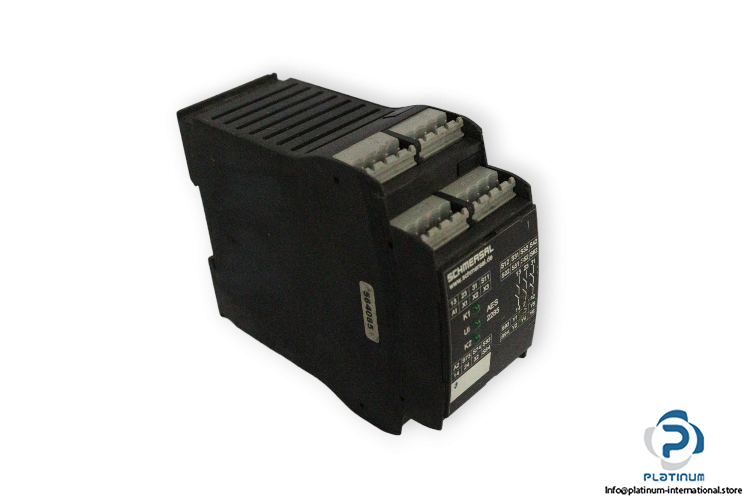

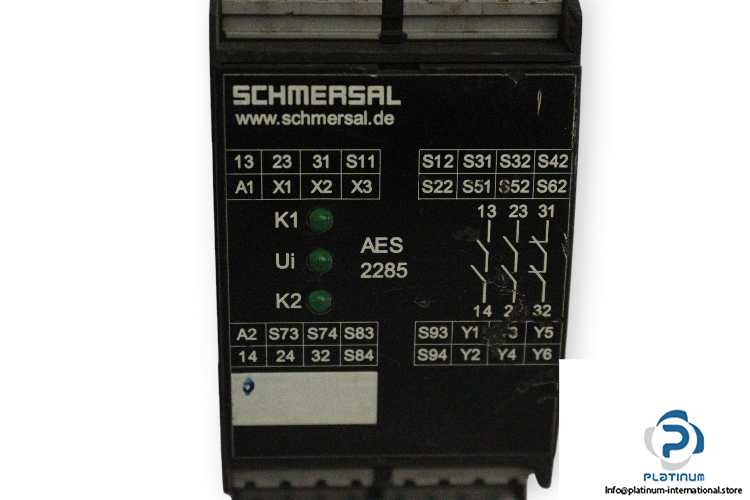

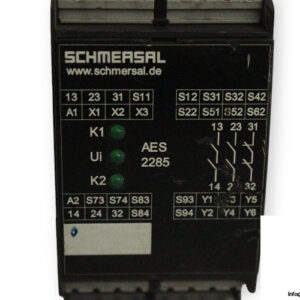

Schmersal AES 2285 Safety Monitoring Module

Manufacturer: SCHMERSAL
Type: Safety Monitoring Module
Model: AES2285

Rated Operating Voltage: 24 V DC
Rated Operating Current: 0.125 A
Rated Insulation Voltage: 250 V
Rated Impulse Voltage: 4 kV
Thermal Current: 6 A
Contact: 4 Normally Open (NO) + 2 Normally Closed (NC)
Rated Contact Voltage: AC-15: 250 V / DC-13: 24 V
Rated Contact Current: 6 A
No. of Safety Contacts: 2
No. of Auxiliary Contacts: 1
No. of Signaling Outputs: 6
Housing Material: Plastic, Glass-Fiber Reinforced, Thermoplastic, Ventilated
Protection Class: IP54
Ambient Temperature: -25 … 45 °C
Dimensions H × W × D: 100 × 45 × 121 mm
