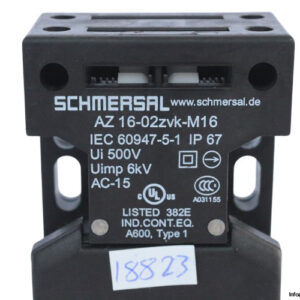

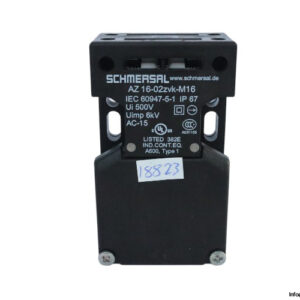

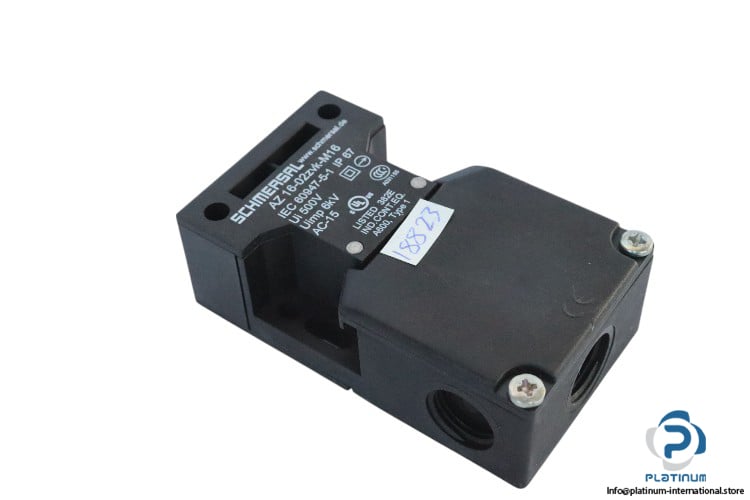

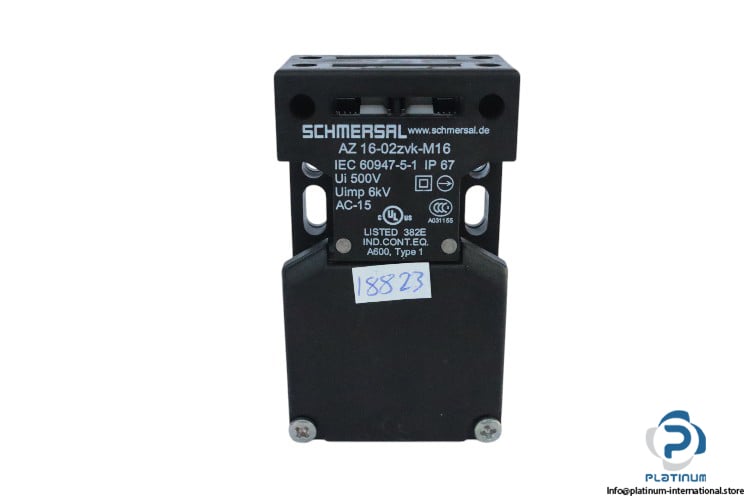

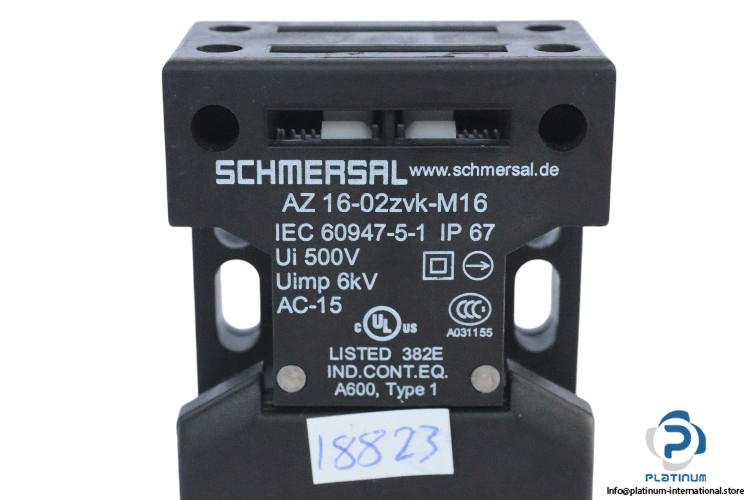

Schmersal AZ 16-02ZVK-M16 Safety Switch
Safety Switch
The Schmersal AZ 16-02ZVK-M16 Safety Switch operates with a 500V rated insulation voltage, 6kV rated impulse withstand voltage, and IP67 protection. Ideal for industrial applications with 2 NC contacts and an operating temperature range of -30°C to +80°C.Schmersal AZ 16-02ZVK-M16 Safety Switch
The Schmersal AZ 16-02ZVK-M16 Safety Switch is a highly reliable and robust safety switch designed for ensuring secure operations in industrial environments. This safety switch features a rated insulation voltage of 500V and a rated impulse withstand voltage of 6kV, offering enhanced protection against electrical surges. With screw terminal connections and three M16 cable entries, it ensures easy and secure wiring. The AZ 16-02ZVK-M16 is equipped with two NC contacts and a slow action, positive break NC contact for a high level of safety in critical applications.
It is designed for use in environments with a degree of pollution level 3, and it operates within a thermal test current of 10A. The device is built with an IP67 degree of protection, making it resistant to dust and water, ensuring reliable operation even in harsh environments. With a wide ambient temperature range of -30 to +80°C, it is suitable for a variety of industrial applications. The safety switch's dimensions are 52 mm x 90 mm x 30 mm, making it compact yet highly efficient for industrial safety systems.
Manufacturer: Schmersal
Type: Safety Switch
Model: AZ 16-02ZVK-M16
The Schmersal AZ 16-02ZVK-M16 Safety Switch is a dependable solution for ensuring safe operation in a wide range of industrial environments, offering high protection standards and reliable performance.
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Cable Entry | 3 x M16 x 1.5 |
| Termination | Screw terminals |
| Degree of Pollution | 3 |
| Thermal Test Current | 10 A |
| Switching Element | 2 NC contact |
| Switching Principle | Slow action, positive break NC contact |
| Cable Section | 0.25 to 2.5 mm² |
| Degree of Protection | IP67 |
| Ambient Temperature | -30°C to +80°C |
| Dimensions | 52 mm x 90 mm x 30 mm |
