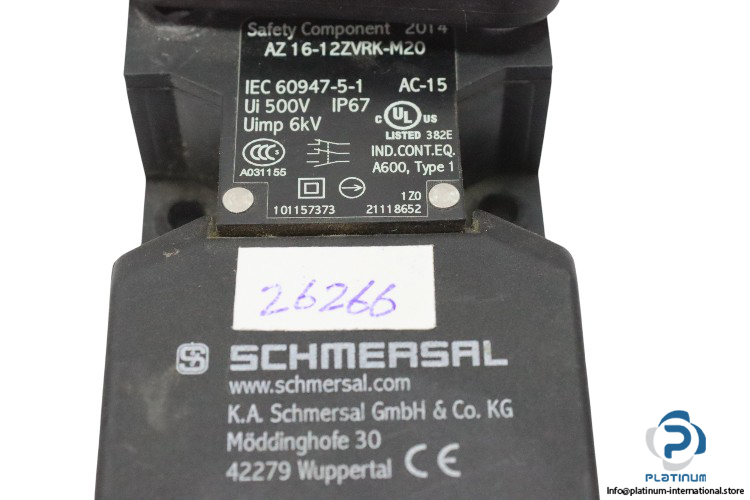

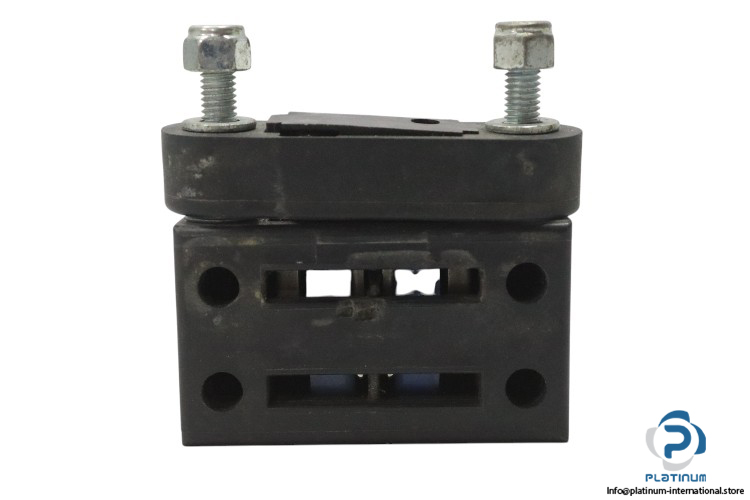

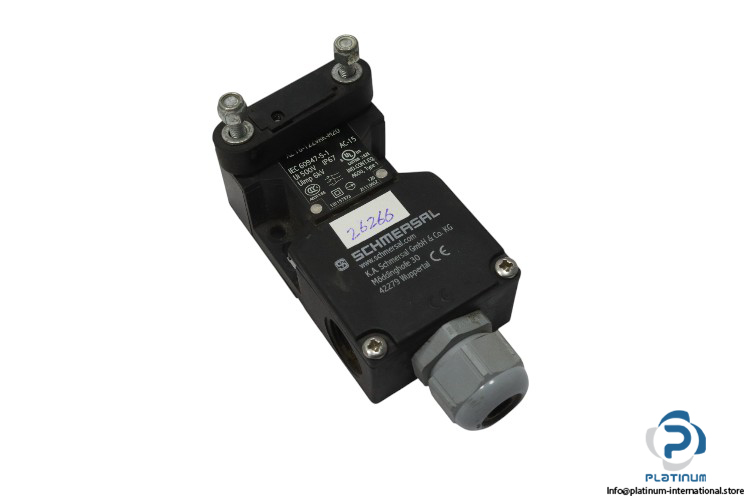

Schmersal AZ 16-12ZVRK-M20 Safety Switch
Used
In stock1 unitReady to ship
Safety Switch
The Schmersal AZ 16-12ZVRK-M20 is a compact safety switch with 1 NO and 2 NC contacts, IP67 protection, and multi-voltage capability for secure guard monitoring.16-12ZVRK-M20230v24v3-ContactAZcomasCompactDeviceGuardIndustrialInterlockIP67MachineSafetySchmersalSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Schmersal AZ 16-12ZVRK-M20 Safety Switch
The Schmersal AZ 16-12ZVRK-M20 is a compact and high-reliability safety switch used to monitor the position of protective guards and doors. Built to meet demanding industrial safety standards, it offers versatile switching elements and robust environmental protection.
Manufacturer: Schmersal
Type: Safety Switch
Model: AZ 16-12ZVRK-M20
| Rated Voltage AC-15 | 230V AC at 4 A |
| Rated Voltage DC-13 | 24 VDC at 4 A |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Thermal Test Current | 10 A |
| Required Rated Short-Circuit Current | 1,000 A |
| Switching Element | 1 NO contact, 2 NC contacts |
| Cable Entry | 3 x M20 x 1.5 |
| Termination | Screw terminals |
| Degree of Protection | IP67 |
| Ambient Temperature | -30 / +80 °C |
| Dimensions (HxWxD) | 90 x 52 x 30 mm |
