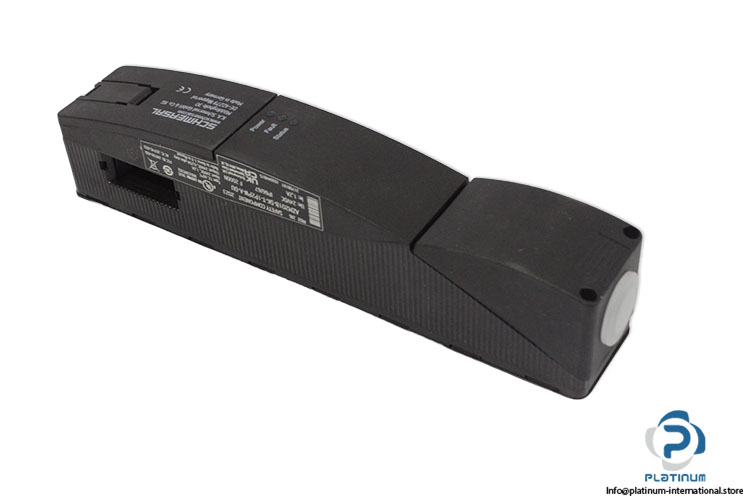

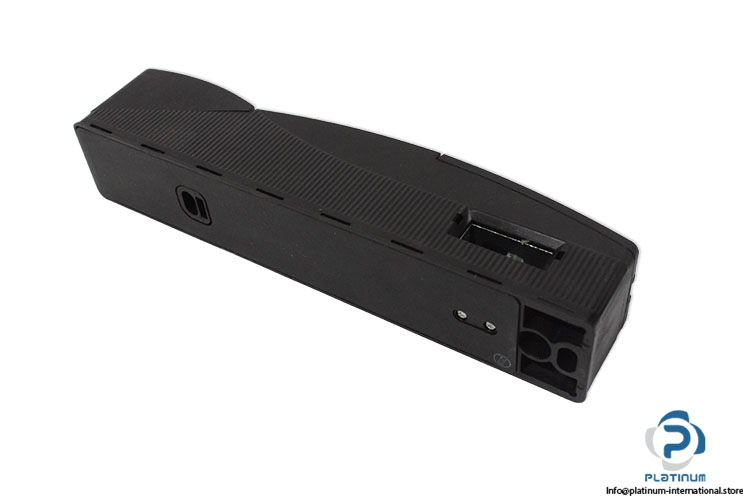

Schmersal AZM201B-SK-T-1P2PW-A-DU Solenoid Interlock
New
In stock1 unitReady to ship
Solenoid Interlock The Schmersal AZM201B-SK-T-1P2PW-A-DU is a high-performance RFID solenoid interlock designed for industrial machine safety and guard locking applications. Operating on 24 VDC, it features dual fail-safe inputs and outputs, IP66/IP67 protection, and compliance with EN IEC 61508 and EN ISO 13849-1 standards, ensuring reliable safety performance in demanding industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 103044815 |
| Work Order | 21798181 |
| Output | (Voltage: 24 VDC, Current: 0,25A) |
| Input | (Voltage: 24 VDC, Current: 1,2A) |
| Working principle | RFID |
| Frequency band RFID | 125kHz |
| Transmitter output RFID | max. -6dBm |
| Rated insulation voltage | Ui 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Length of sensor | 50 mm |
| Width of sensor | 40 mm |
| Height of sensor | 220 mm |
| Certificate | cULus, UKCA, CE |
| Number of digital fail-safe inputs | 2 |
| Number of fail-safe digital outputs | 2 |
| Standards | EN IEC 61508, EN ISO 13849-1 |
| Degree of protection | IP66, IP67 |
| Protection class | 3 |
| Ambient temperature | -25 ... +70 °C |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093133 |
| Weight | 0,54 |
