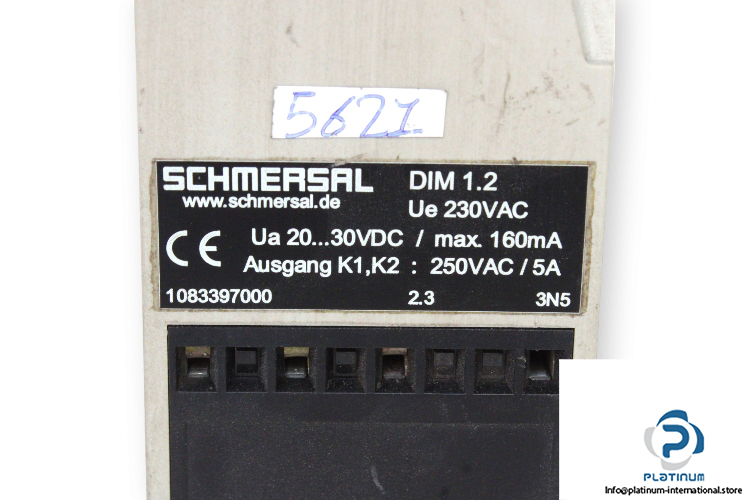

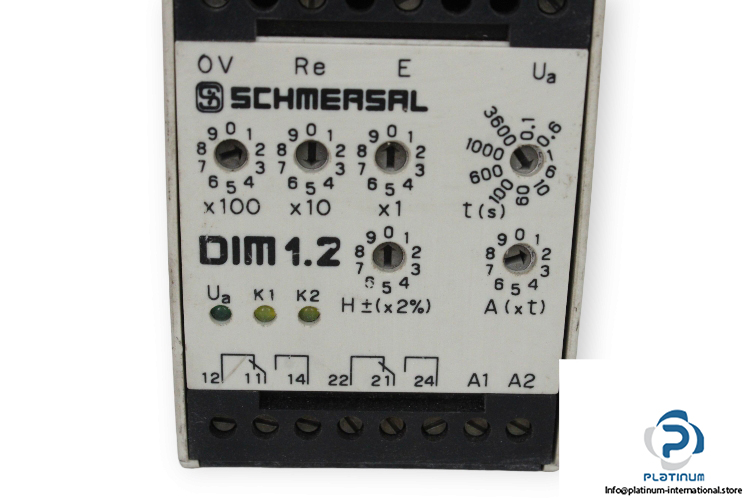

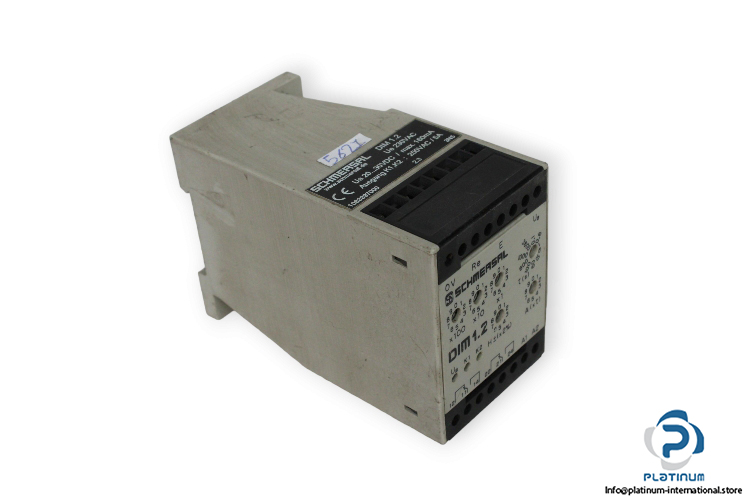

Schmersal DIM 1.2/230 VAC Motion Control Monitor

Manufacturer: SCHMERSAL
Type: Motion Control Monitor
Model: DIM 1.2/230 VAC
Part No.: 1083397000

Mounting: Two holes according to DIN 43660 or rail mounting complying to DIN EN 50022
Connections: M20 X 1.5
Degree of protection: Terminals IP 20; housing IP 40
Standard time (t): 0.1 s; 0.6 s; 1 s; 6 s; 10 s; 60 s; 100 s; 600 s; 1.000 s; 3.600 s
Start-up delay (A): 0 . . . 9 x time (t)
Hysteresis: ± 1% from the preset switching point
Operating voltage (Ue): 230 VAC
Frequency range: 50 . . . 60 Hz
Auxiliary voltage (Ua): 20 … 30 VDC
Max. output current (Ia): 160 mA
Ambient temperature: 0° . . . 60° C
