Schmersal SRB 301LC-24V Safety Relay
Used
In stock3 unitsReady to ship
SCHMERSAL Safety Relay SRB 301LC-24V
Reliable safety relay with 24 V DC/AC input, 230 V AC main output, 24 V DC auxiliary output, and robust IP20/IP40 protection.23024301LC-24VACAuxiliaryDeviceIndustrialIP20/IP40monitoringOutputProtectionRelaySafetySchmersalSRBVVDC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

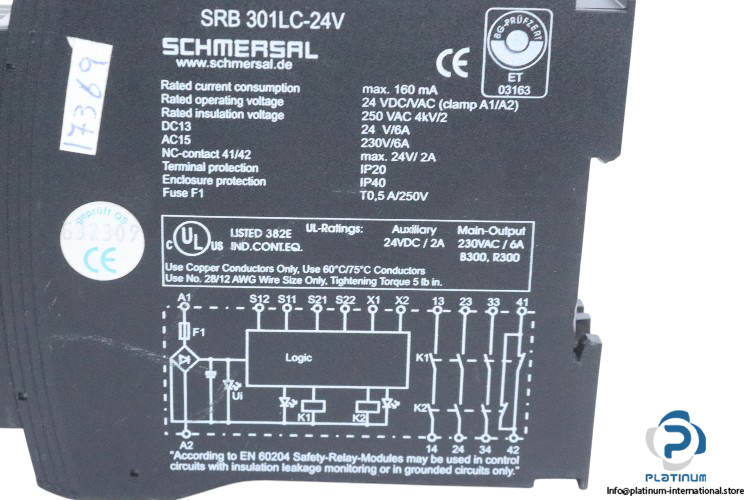

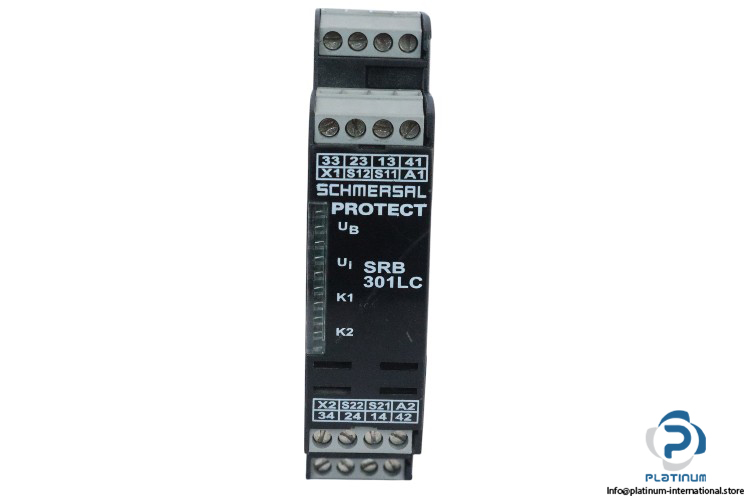

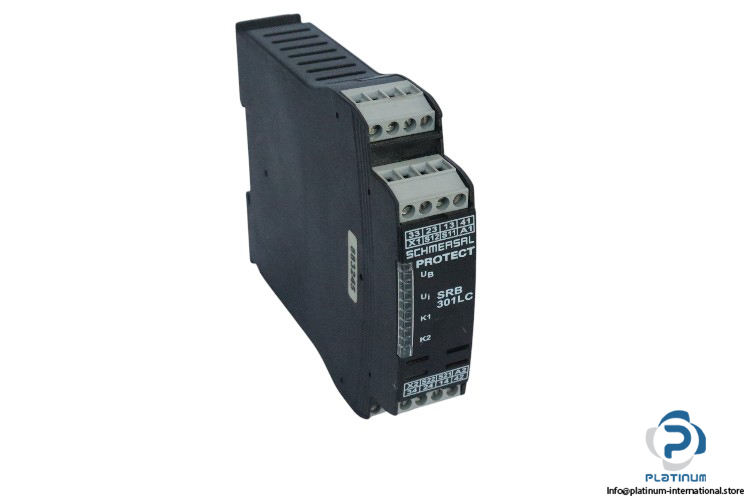

SCHMERSAL Safety Relay SRB 301LC-24V
The SCHMERSAL SRB 301LC-24V Safety Relay is a highly reliable device designed for industrial safety applications. It offers auxiliary and main outputs for enhanced operational flexibility, supporting 24 V DC or AC input and delivering robust performance. Compact and durable, it ensures compliance with stringent safety standards.
Specifications:
- Manufacturer: SCHMERSAL
- Type: Safety Relay
- Model: SRB 301LC-24V
- Rated Current Consumption: max. 160 mA
- Rated Operating Voltage: 24 VDC / VAC
- Auxiliary Output: 24 V DC, 2 A
- Main Output: 230 V AC, 6 A
- Rated Insulation Voltage: 250 V AC
- Wire Size: 28“12 AWG
- Tightening Torque: 5 in/lbs
- Degree of Protection: IP20 (terminals), IP40 (housing)
- Operating Temperature: 60“75 °C
