Schmersal TVS 400-12/BZ-M20 Hinged Guard Safety Switch

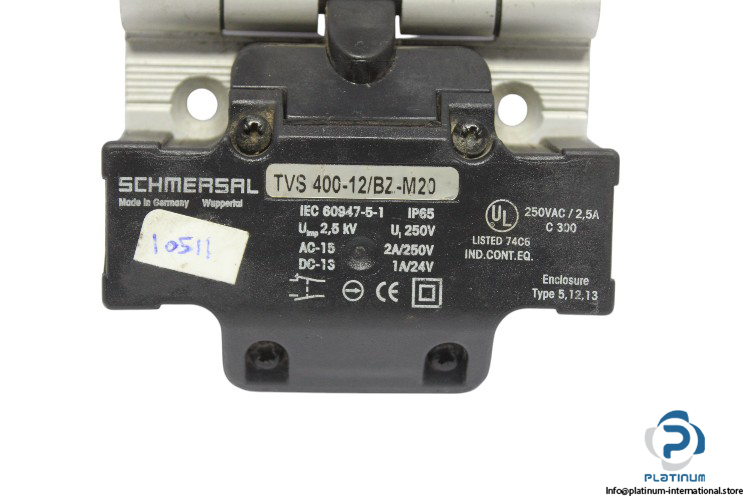

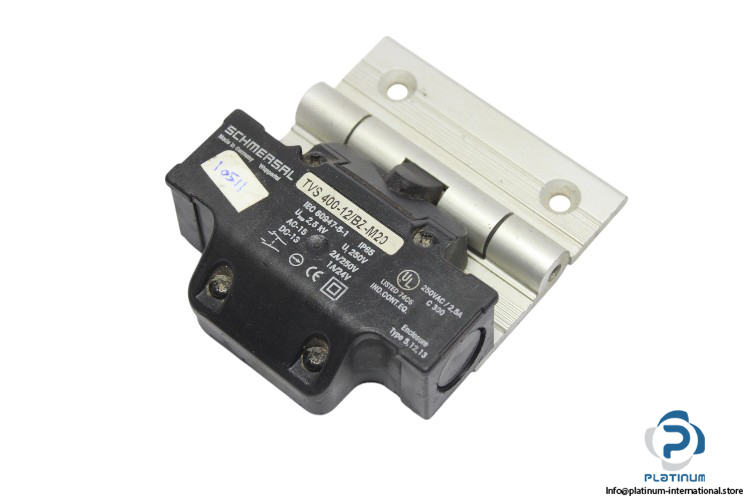

SCHMERSAL Hinged Guard Safety Switch TVS 400-12/BZ-M20

The SCHMERSAL Hinged Guard Safety Switch TVS 400-12/BZ-M20 is designed for ensuring the safety of access points and hinged guards in industrial systems. With a supply voltage of 250 V AC and a rated thermal current of 2.5 A, this safety switch provides reliable protection. It features 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration for efficient switching operations. Built from glass-fiber reinforced thermoplastic, it is self-extinguishing and highly durable. The switch also features IP65 protection for use in harsh environments and operates in a wide temperature range of -25 to 65°C.

Manufacturer: SCHMERSAL

Type: Hinged Guard Safety Switch

Model: TVS 400-12/BZ-M20

Art. No.: 101155808

Technical Specifications

• Supply Voltage: 250 V AC
• Rated Thermal Current (Ith): 2.5 A
• Rated Insulation Voltage (Ui): 250 V
• Rated Impulse Voltage (Uimp): 2.5 kV
• Frequency: 50 / 60 Hz
• Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Material: Plastic, Glass-Fiber Reinforced Thermoplastic, Self-Extinguishing
• Protection Class: IP65
• Ambient Temperature: -25 / 65 °C
• Dimensions: 92 x 111.5 x 36 mm
