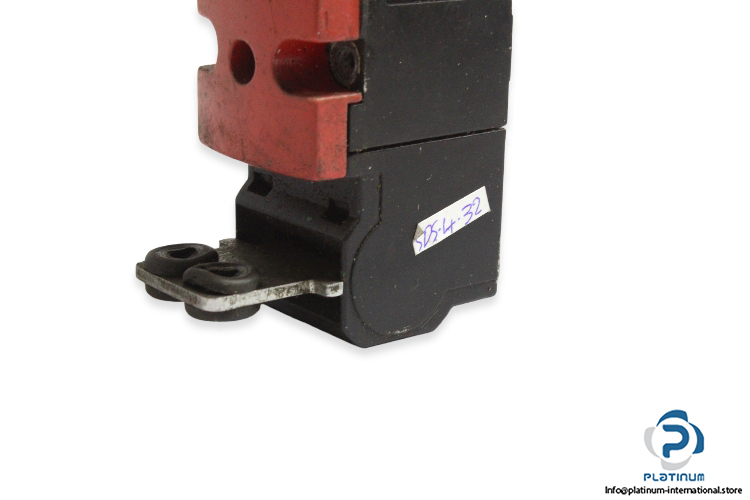

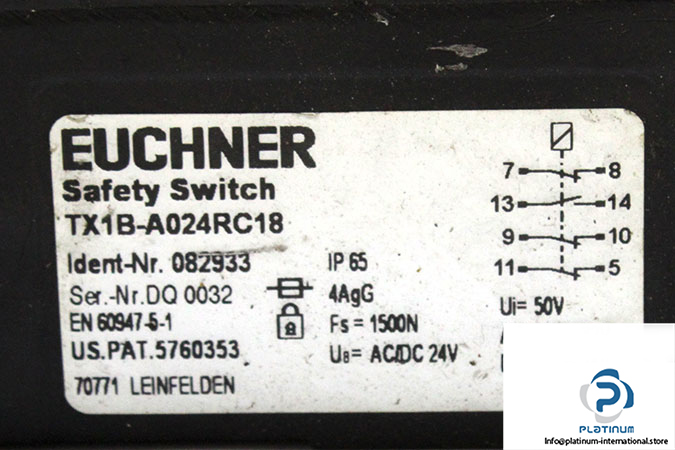

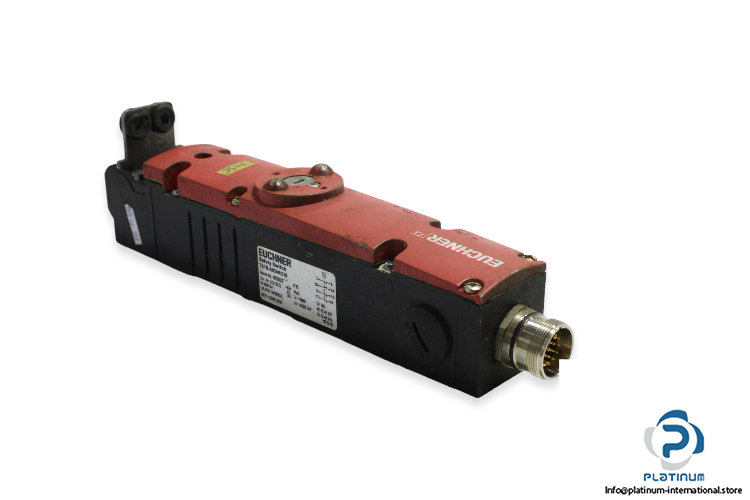

Euchner TX1B-A024RC18 Safety Switch
Manufacturer: EUCHNER
Type: Safety Switch
Model: TX1B-A024RC18
Id no: 082933
Output Configuration: NC + NO
Number of guard lock monitoring positively driven contacts: 2
Contact Operation: Slow-action
Actuator Type: guard locking
Power consumption: 8 W
Rated insulation voltage Ui: 50 V
Rated impulse withstand voltage Uimp: 1.5 kV
Solenoid operating voltage: AC/DC 24 V

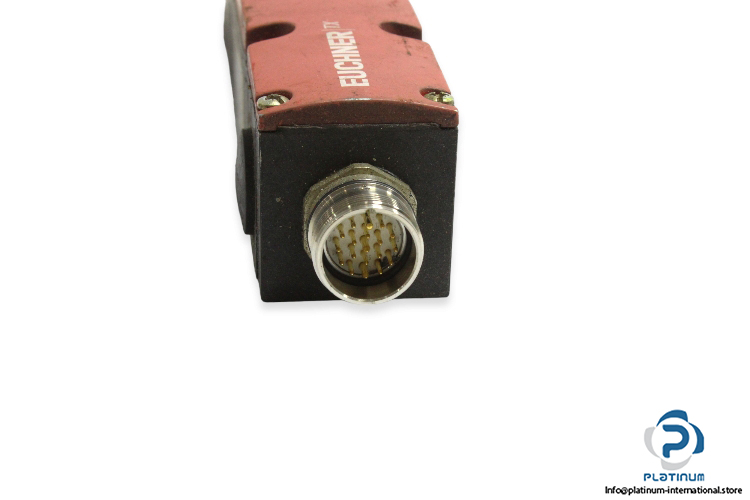

Connection: plug connector M23
Protection Class: IP65
Locking force Fmax: 1700 N
Ambient Operating Temperature: –20 … +80 °C
