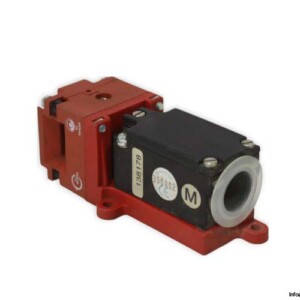

Schmersal TZG 01.103 Limit Switch
29,99$
Elan / Schmersal TZG01.103 Limit Switch Durable and precise limit switch for industrial automation. Features 1NC/1NO contacts, 400V insulation voltage, IP67 protection, and glass-fibre reinforced thermoplastic housing.
Elan / Schmersal TZG01.103 Limit Switch
The Elan / Schmersal TZG01.103 is a high-performance limit switch designed for industrial automation and machinery applications. Featuring a rugged glass-fibre reinforced thermoplastic housing and IP67 protection, this switch ensures durability, reliability, and long-term performance in harsh environments.
Key Details:
Manufacturer: Elan / Schmersal
Type: Limit Switch
Model: TZG01.103
The TZG01.103 Limit Switch is designed for applications requiring precise position sensing, safety monitoring, and automation control. Its rugged design and high protection class make it ideal for industrial environments.
| Output Configuration | 1NC/1NO |
| Rated Insulation Voltage (Ui) | 400 V |
| Rated Impulse Withstand Voltage (Uimp) | 2.5 kV |
| Switching Element | NC contact, NO contact |
| Switching Principle | Slow action |
| Termination | Screw terminals |
| Thermal Test Current | 10 A |
| Utilization Category AC-18 | 250 V AC |
| Utilization Category AC-18 | 8 A |
| Material of the Contacts (Electrical) | Silver |
| Housing Material | Glass-fibre reinforced thermoplastic |
| Protection Class | IP67 |
| Ambient Temperature | -25 to +70 °C |
| Dimensions | 39.5 x 50 x 106.5 mm |
