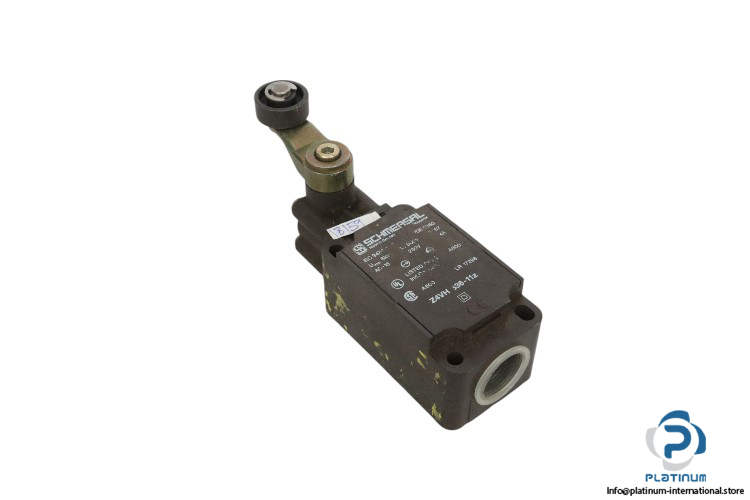

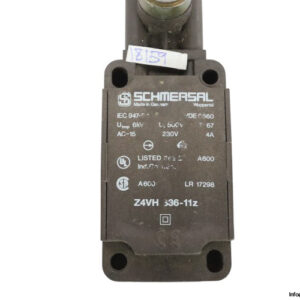

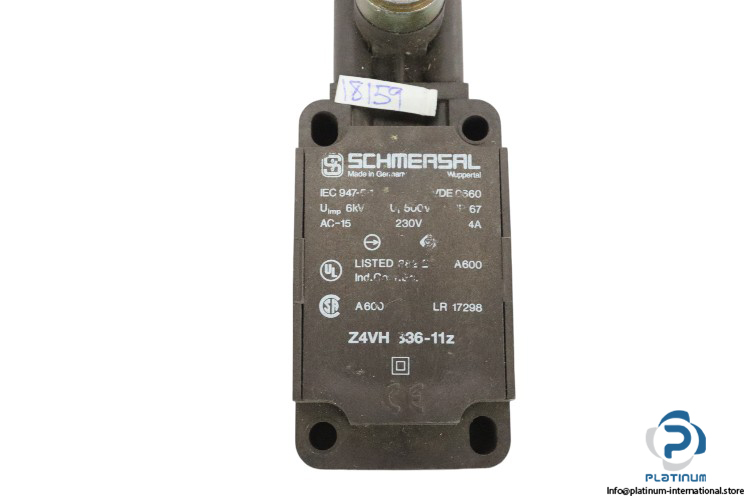

Schmersal Z4VH 336-11Z Position Switch

In stock1 unitReady to ship

Position Switch

The Schmersal Z4VH 336-11Z Position Switch features a roller lever actuator, IP67 protection, and NO/NC contacts for precise industrial position detection.

Manufacturer
SCHMERSAL
SKU
1059547
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Schmersal Z4VH 336-11Z Position Switch

The Schmersal Z4VH 336-11Z Position Switch is a robust safety switch designed for precise position detection in industrial environments. Featuring a roller lever actuating element, IP67 protection, and a durable thermoplastic housing, this switch ensures reliable operation under demanding conditions.

Manufacturer: Schmersal

Type: Position Switch

Model: Z4VH 336-11Z

Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Insulation Voltage (Ui)500 V
Thermal Test Current (Ith)10 A
Rated Voltage AC-15230 V / 4 A
Rated Voltage DC-1324 V / 4 A
Required Rated Short-Circuit Current1000 A
Max. Fuse Rating6 A gG D-fuse
Material HousingPlastic, Glass-Fibre Reinforced Thermoplastic, Self-Extinguishing
Design of Electrical ConnectionScrew Connection
Design of Actuating ElementRoller Lever
Design of Control ElementNormally Open Contact (NO), Opener (NC)
Switching PrincipleSnap Switch Element
Actuating Torque Min.26 Ncm
Protection ClassIP67
Ambient Temperature-30 to +80°C
Dimensions (H x W x D)129.5 x 40.5 x 60.5 mm
