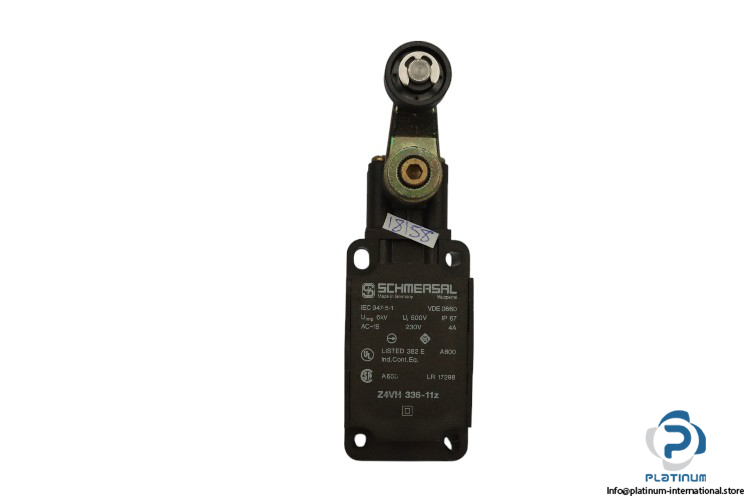

Schmersal Z4VH 336-11Z Position Switch

In stock1 unitReady to ship

Schmersal Position Switch Z4VH 336-11Z Reliable position switch with snap-action principle, roller lever actuating element, and IP67 protection. Rated for up to 6 kV impulse withstand voltage and designed for industrial environments.

Manufacturer
SCHMERSAL
SKU
1059546
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Schmersal Position Switch Z4VH 336-11Z

The Schmersal Position Switch Z4VH 336-11Z is a highly reliable industrial position switch featuring a snap switch element and a robust plastic housing made of glass-fibre reinforced thermoplastic material. Designed for use in demanding environments, this switch offers both Normally Open (NO) and Normally Closed (NC) contacts, ensuring flexibility in a variety of applications. It also has a high impulse withstand voltage of 6 kV, making it ideal for industrial and safety applications.

  • Model: Z4VH 336-11Z
  • Rated Impulse Withstand Voltage (Uimp): 6 kV
  • Rated Insulation Voltage (Ui): 500 V
  • Thermal Test Current (Ith): 10 A
  • Rated Voltage AC-15: 230 V / 4 A
  • Rated Voltage DC-13: 24 V / 4 A
  • Max. Fuse Rating: 6 A gG D-fuse
  • Housing Material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Electrical Connection: Screw connection
  • Actuating Element: Roller lever
  • Control Element: Normally open contact (NO), Opener (NC)
  • Switching Principle: Snap switch element
  • Actuating Torque Min.: 26 Ncm
  • Protection Class: IP67
  • Ambient Temperature: ˆ’30 to +80 °C
  • Dimensions (HxWxD): 129.5 x 40.5 x 60.5 mm
