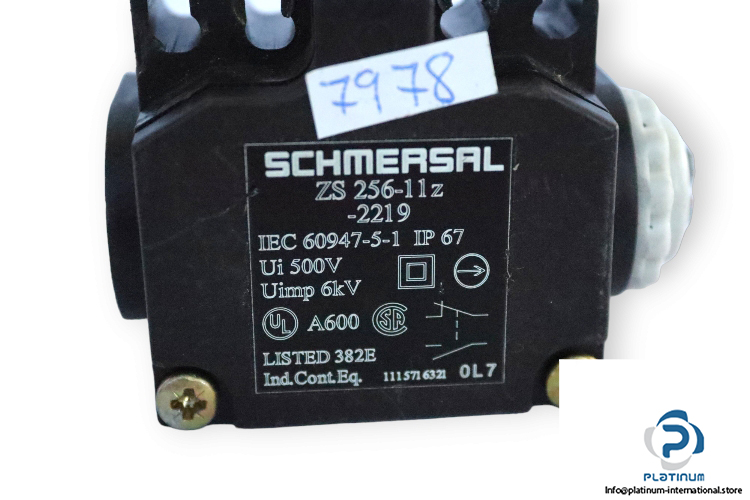

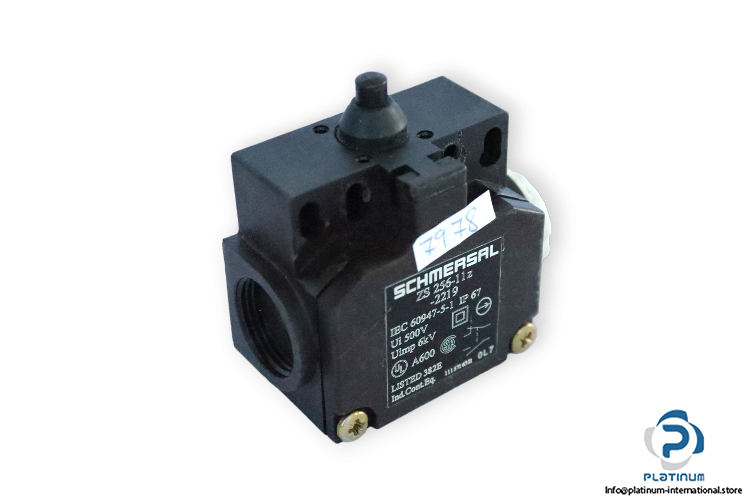

Schmersal ZS 256-11Z-2219 Position Switch
Manufacture: Schmersal
Type: Position Switch
Model: ZS 256-11Z-2219
Rated impulse withstand voltage Uimp: 6 kV
Rated insulation voltage Ui: 500 V
Thermal test current Ith: 10 A
Output configuration: 1 NO,1 NC contact
Switching principle: Snap switch element
Design of electrical connection: Screw connection
Design of actuating element: Plunger
Cable entries: 2 cable entries M 20 x 1.5
Ambient temperature: -30 … 80°C
Protection class: IP67
Dimensions: 58 x 62.5 x 31 mm
