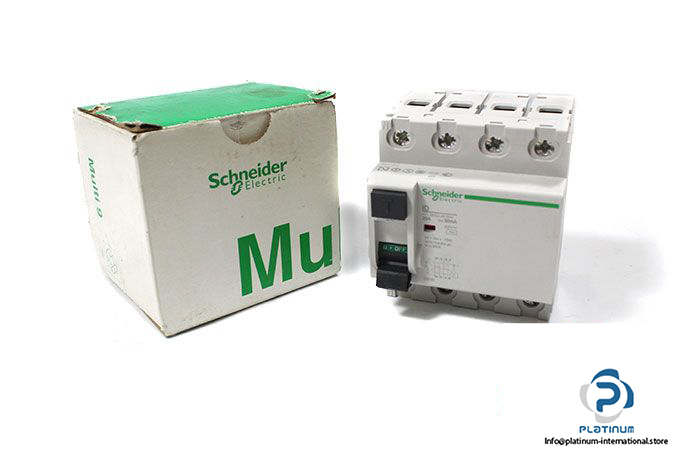

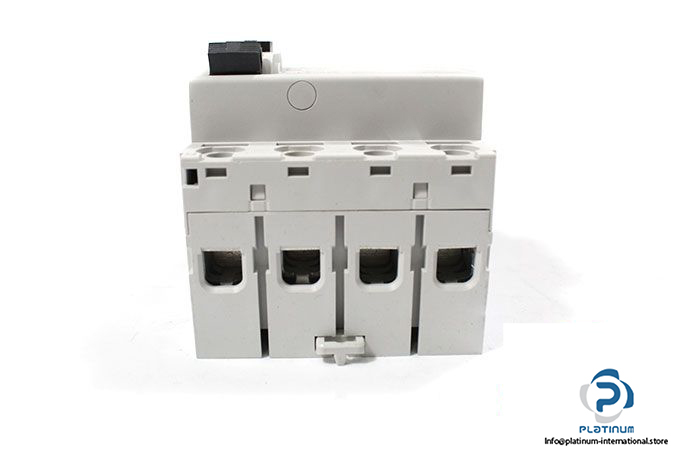

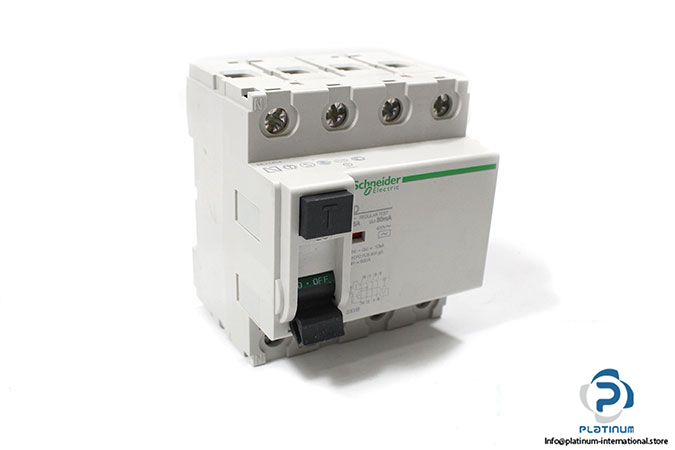

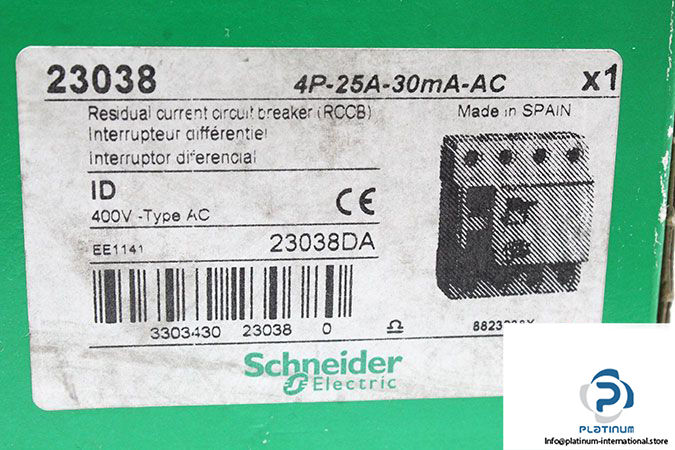

Schneider 23038 Residual Current Circuit Breaker
Manufacturer: SCHNEIDER ELECTRIC
Type: Residual Current Circuit Breaker
Model: 23038
rated current: 25 A
Earth-Leakage Sensitivity: 30 mA
Earth-Leakage Protection Class: Type AC
device short name: ID RCCB
No. Of Poles: 4P
Rated Operational Voltage: 230/400 V
mechanical durability: 20000 cycles
Rated Insulation Voltage: 440 V conforming to IEC 60947-3
Rated Impulse Withstand Voltage: 6 kV conforming to IEC 60947-3
Frequency: 50/60 Hz
Operating Temperature: -5…40 °C
Weight: 0.36 kg
