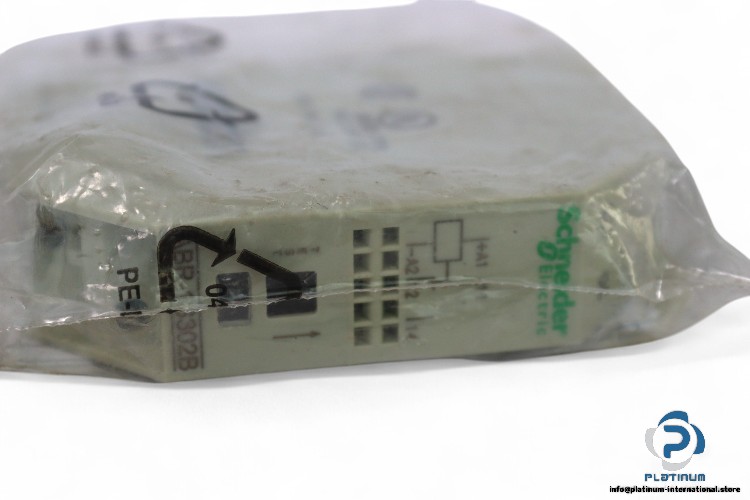

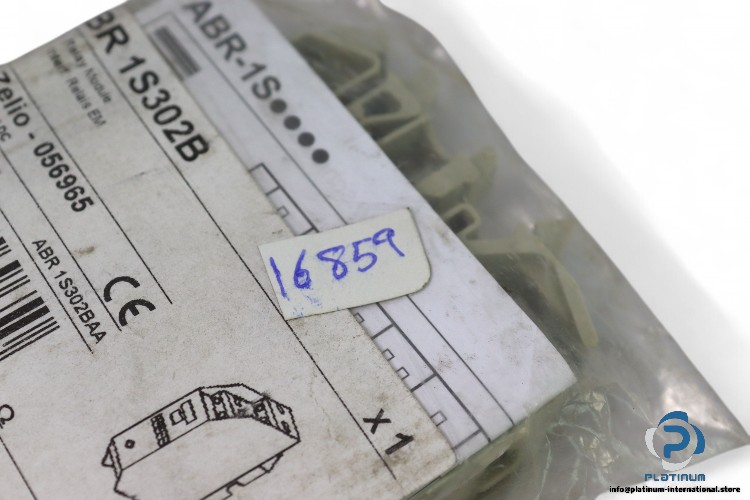

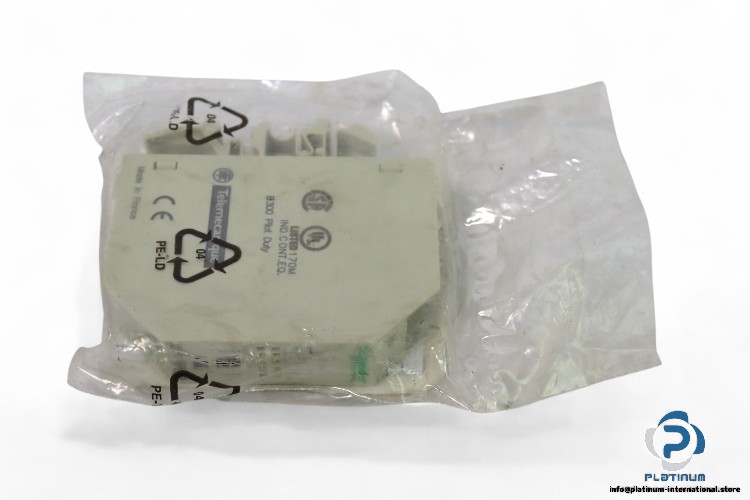

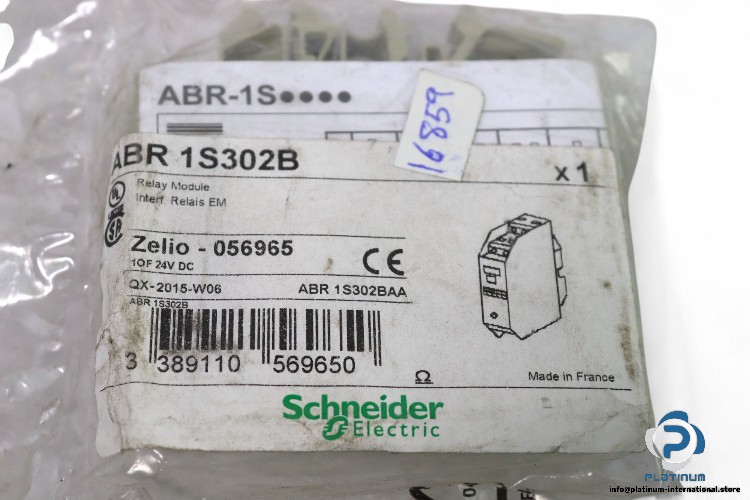

Schneider ABR 1S302B Relay Module
Manufacturer: Schneider
Type: OUTPUT INTERFACE MODULE
Model: ABR 1S302B
Product or component type: Electromechanical output interface module
Control circuit voltage: 24 V DC
Contacts type and composition: 1 C/O
Rated current: 62 mA DC
Local signaling: Green mechanical indicator for position of contacts and 1 green LED control signal state
Housing color: Grey
Connections – terminals: Screw clamp terminal
Network frequency: 50/60 Hz
Contact bounce time: 3 ms
Width pitch dimension: 17.5 mm
