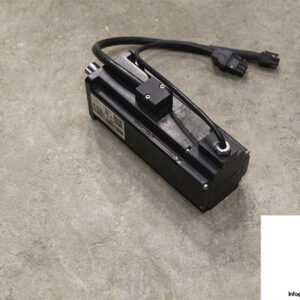

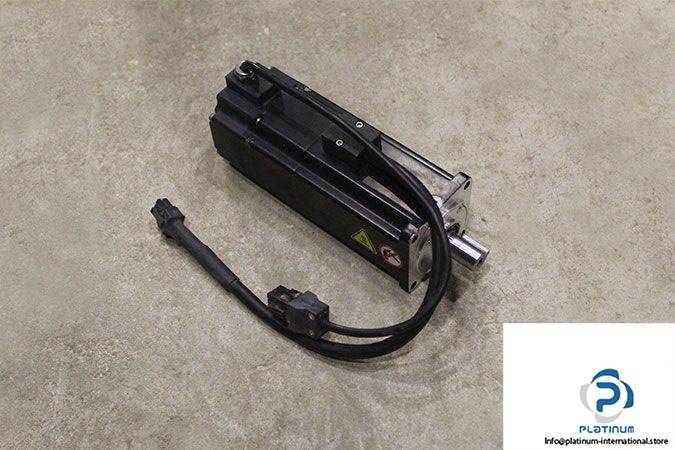

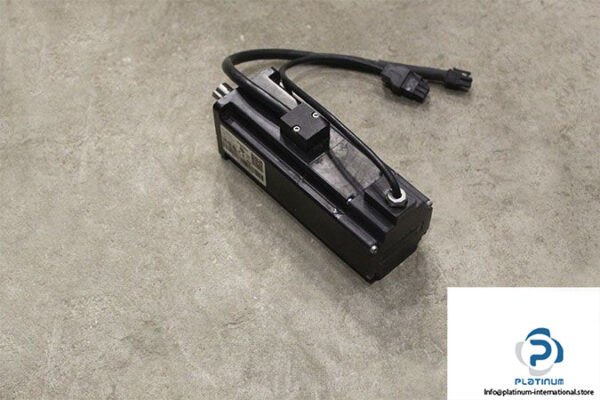

Schneider BCH2LD0433CF5C AC Servo Motor
Used
In stock2 unitsReady to ship
425,00$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

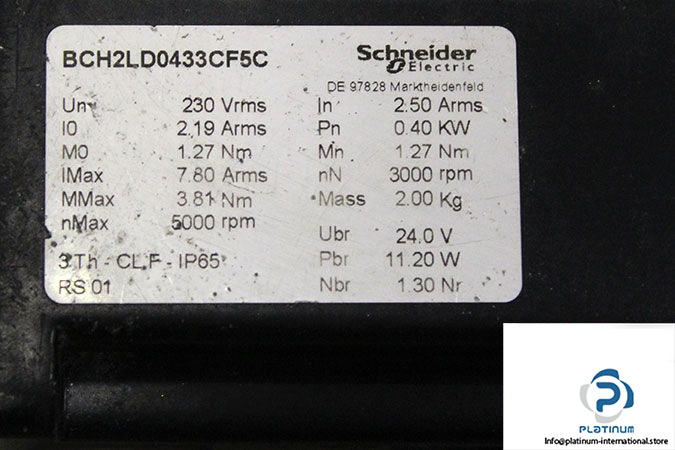

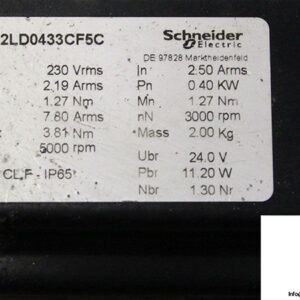

Manufacturer: Schneider Electric
Type: AC Servo Motors
Model: BCH2LD0433CF5C
Stall Torque [Nm]: 1.27
Rated Torque [Nm]: 1.27
Max Torque [Nm]: 3.81
Stall Current [A]: 2.19
Rated Current [A]: 2.5
Max Current [A]: 7.8
Rated Voltage [V]: 230
Rated Power [kW]: 0.4
Rated Speed [rpm]: 3000
Max Speed [rpm]: 5000
Shaft End: Keyed
Flange Size [mm]: 60
Shaft Diameter [mm]: 14
Shaft Length [mm]: 30
Key Width [mm]: 5
Brake Voltage [VDC]: 24
Brake Power [W]: 11.2
Holding Torque [Nm]: 1.3
Protection Class [IP]: 65
Thermal Class: F
Weight [kg]: 1.885
