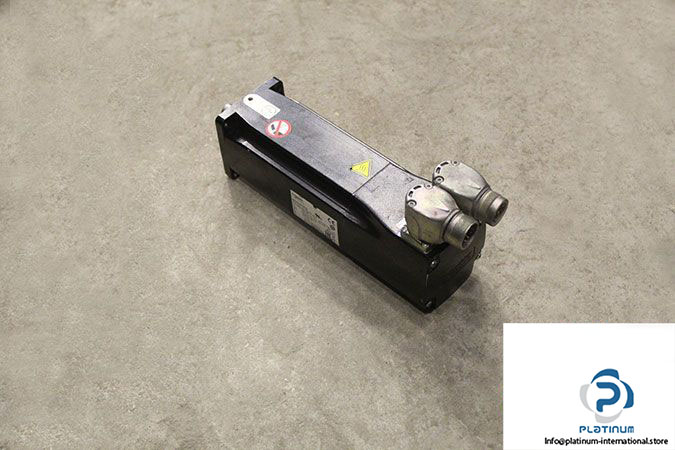

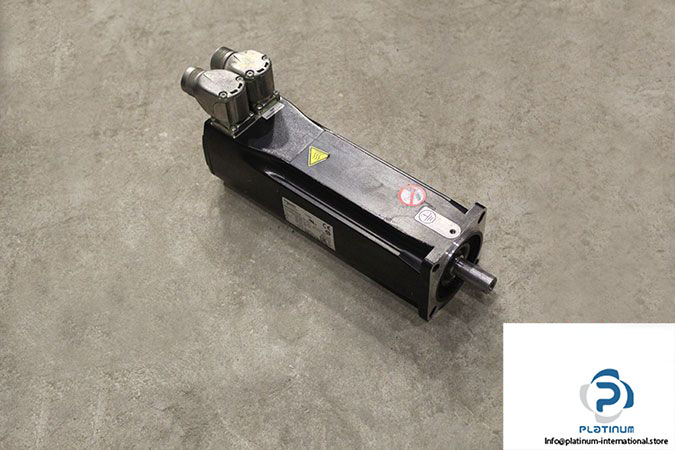

Schneider BMH0703P06F2A AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

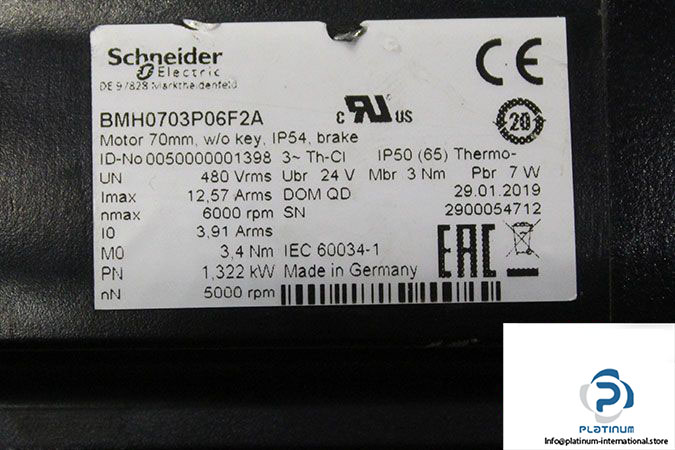

Model: BMH0703P06F2A

ID No.: 0050000001398

Stall Torque [Nm]: 3.4

Stall Current [A]: 3.91

Max Current [A]: 12.57

Rated Voltage [V]: 480

Rated Power [kW]: 1.322

Rated Speed [rpm]: 5000

Max Speed [rpm]: 6000

Number of Poles: 10

Brake Voltage [V]: 24

Brake Power [W]: 7

Brake Torque [Nm]: 3

Flange Size [mm]: 70

Shaft Diameter [mm]: 14

Shaft Length [mm]: 30

Protection Class [IP]: 54

Insulation Class: F

Weight [kg]: 3.675
